Panel saws

The sliding table panel saw was one of our first mass-produced machines. Having manufactured these saws since our very beginning, we have mastered every technical aspect of their design and engineering.

List

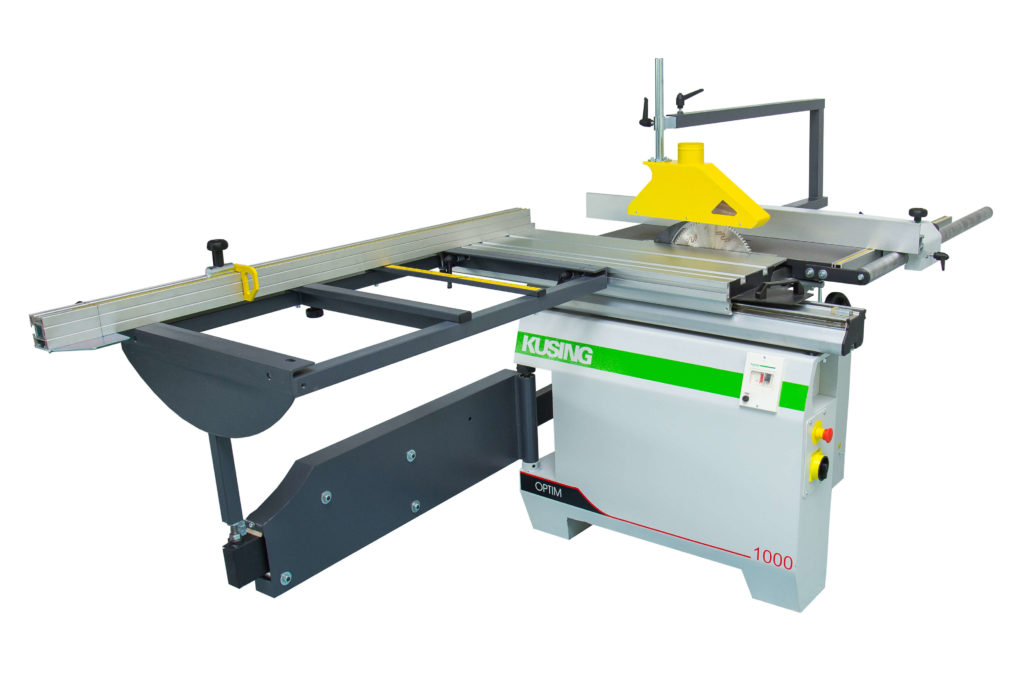

FPN OPTIM 1200
  • Sliding table length: From 1200 mm to 3200 mm
  • Carriage on hardened steel rods
  • Cast iron table dimensions: 800 × 550 mm
  • Maximum saw blade stroke: 140 mm
  • Maximum saw blade diameter: ø 350 mm
  • Saw blade tilting range: 0° – 45°
  • Motor power output options: 3 kW – 4 kW

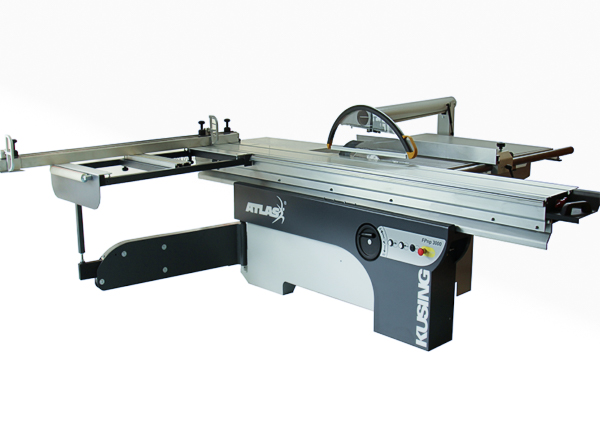

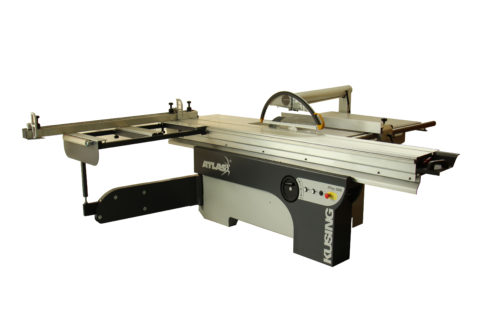

Sliding table panel saw FPNP 3200 ATLAS
  • Formátovací vozík na kalených tyčiach, dĺžka 3200mm

  • Liatinový stôl 1200x700mm

  • Maximálny zdvih píly 155mm

  • Maximálny priemer pílového kotúča ø450mm až (ø550mm)

  • Náklon píly 0° – 45°

  • Výkon motora voliteľný 3kW – 4kW – 5,5kW

  • Samostatný motor predrezu 0,55kW

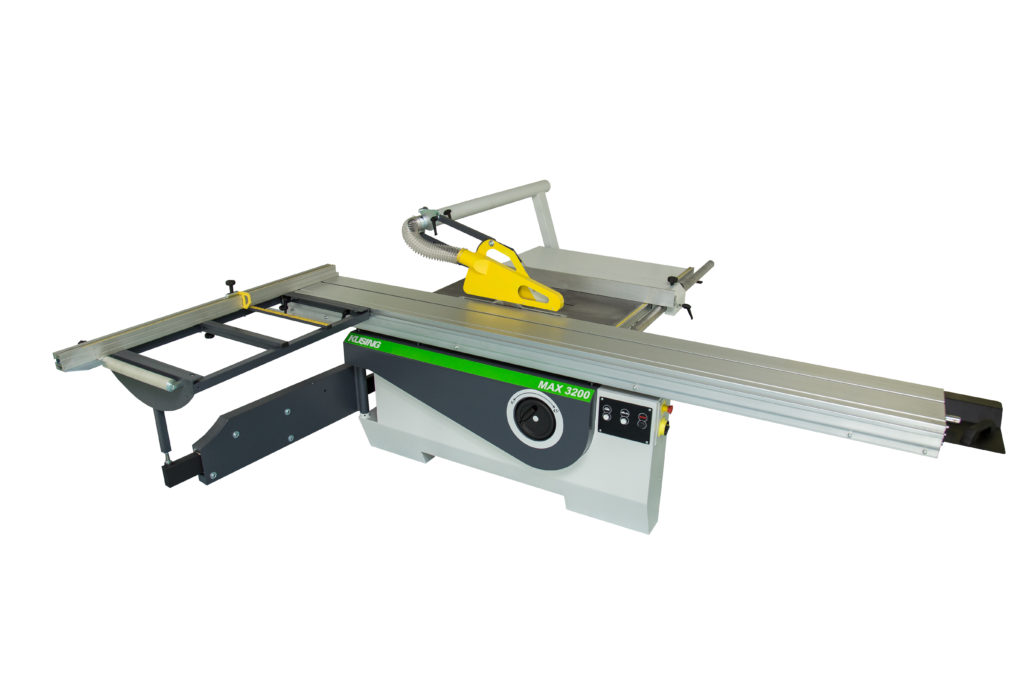

Sliding table panel saw FPNP MAX 3200
  • Sliding table length: From 2000 mm to 3500 mm
  • Cast iron table dimensions: 1050 × 600 mm
  • Maximum saw blade stroke / elevation: 115 mm
  • Maximum saw blade diameter: ø 350 mm to (ø 400 mm)
  • Saw blade tilting range: 0° – 45°
  • Motor power output options: 3 kW – 4 kW – 5.5 kW
  • Main saw blade speed: Optional
  • Independent scoring unit motor: 0.55 kW
  • Tilt control position: Front-mounted

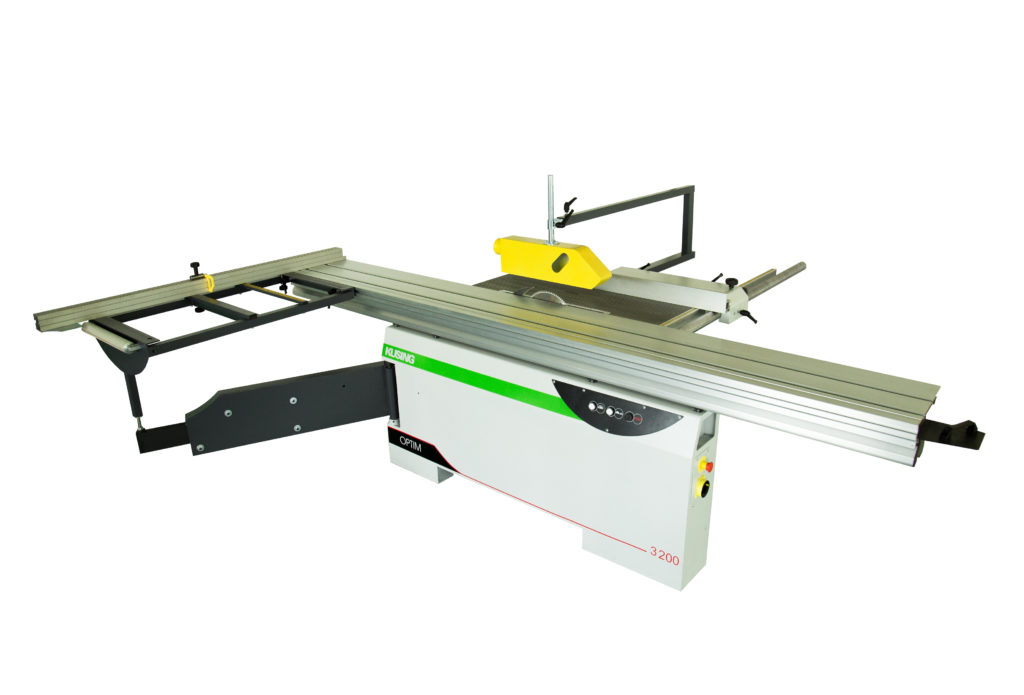

Sliding table panel saw FPNP OPTIM 3200
  • Sliding table length: From 2000 mm to 3500 mm
  • Carriage on hardened steel rods
  • Cast iron table dimensions: 1050 × 600 mm
  • Maximum saw blade stroke: 115 mm
  • Maximum saw blade diameter: ø 350 mm to (ø 400 mm)
  • Saw blade tilting range: 0° – 45°
  • Motor power output options: 3 kW – 4 kW – 5.5 kW
  • Independent scoring unit motor: 0.55 kW
