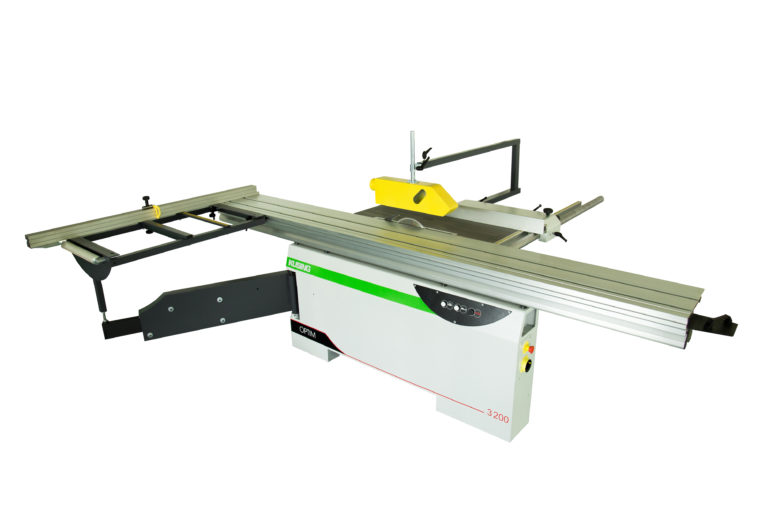

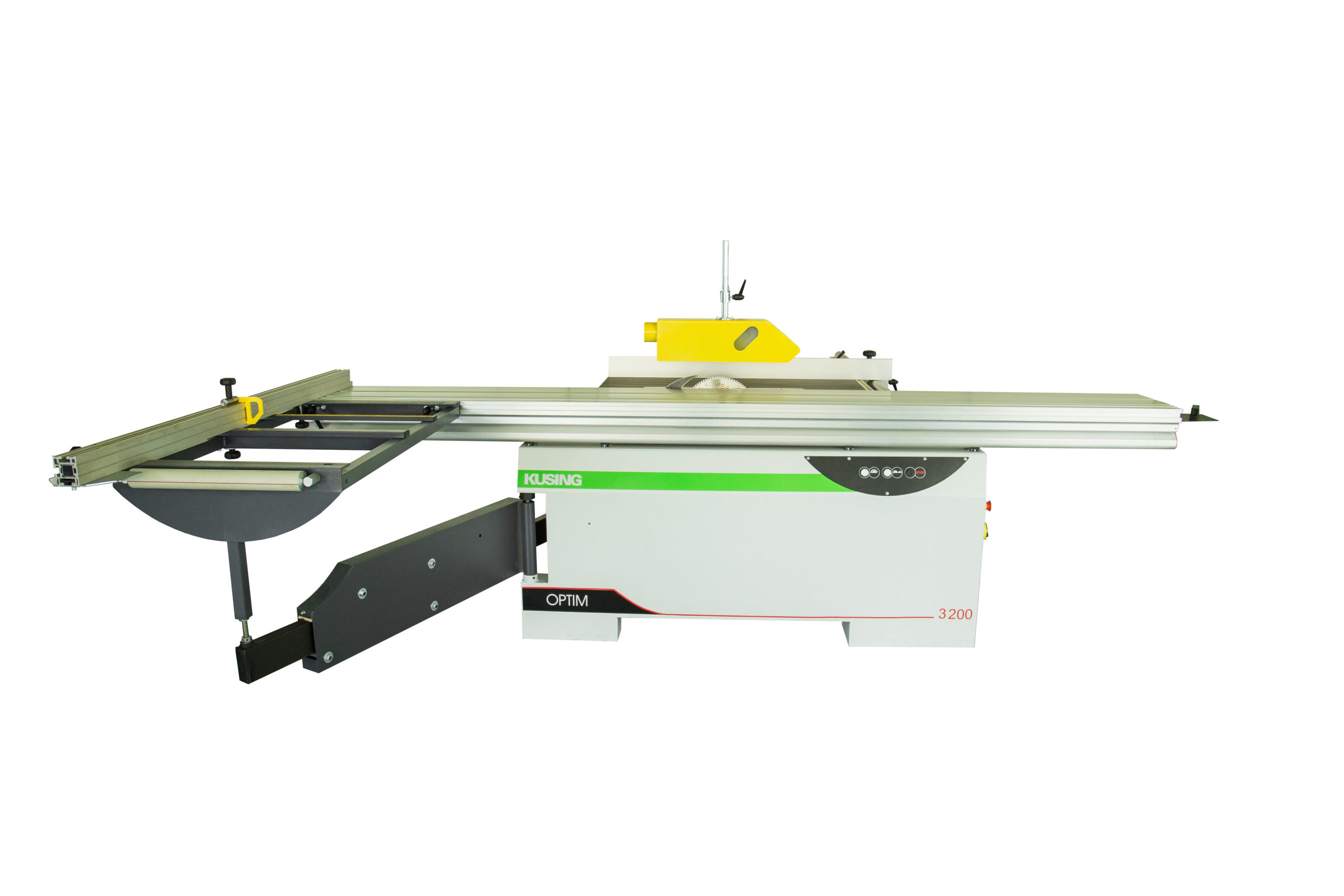

Sliding table panel saw FPNP OPTIM 3200 - Kusing

Parametre

• Material: Solid wood Plastic Composite Laminate
• Usage: Sawing Cutting

• Sliding table length: From 2000 mm to 3500 mm
• Carriage on hardened steel rods
• Cast iron table dimensions: 1050 × 600 mm
• Maximum saw blade stroke: 115 mm
• Maximum saw blade diameter: ø 350 mm to (ø 400 mm)
• Saw blade tilting range: 0° – 45°
• Motor power output options: 3 kW – 4 kW – 5.5 kW
• Independent scoring unit motor: 0.55 kW

The FPnp Max professional sliding table panel saw is suitable for demanding customers who prioritize quality and design in their equipment.

Applications: Solid wood, laminated panels, plastics, composite materials

Description

The Optim professional sliding table panel saw offers everything a proper panel saw should include, delivering required quality at an unbeatable price. If you are looking for a professional machine at a reasonable price, the Optim is the right choice.

The FPnp Optim machine is equipped with a high-quality cast iron sawing unit utilizing a sliding tilt mechanism on two semi-circular trunnions that manages the elevation of the saw blade. This technology is time-tested and standard for machinery of this category. The scoring unit is independently housed within the cast iron assembly and allows for adjustments in both vertical and horizontal directions, ensuring highly precise alignment of the scoring blade.

The FPnp Optim model features a sliding table carriage traveling on hardened steel rods; this carriage is precise, very simple to maintain, and guaranteed to meet all your production requirements. The carriage width is 380 mm, while its length is selectable from 2000 mm up to 3500 mm.

Saw blade elevation and tilting are manually operated.

As a standard feature for this machinery class, the saw is equipped with an electronic motor brake complying fully with CE safety standards.

Accessories

Technical Specifications

Maximum main saw blade diameter	ø 350 / 30 mm
Main motor power output	3/4/5,5 kW
Main saw blade speed	4000 (3500 – 5000) ot/min
Maximum scoring blade diameter	ø 120 / 20 mm
Scoring motor power output	0,55 kW (0,75 HP)
Scoring blade speed	8000 ot/min
Maximum depth of cut	120 mm
Sawing unit tilting range	0 – 45 °
Cast iron table dimensions	1170 x 620 mm
Sliding table dimensions	2200×360 mm
Cutting length	2200 mm
Maximum rip fence cutting width	1200 mm
Maximum cross-cut fence cutting width	1500/2700 mm
Machine weight	600 – 650 kg

Scope of Delivery

• Manual control for height adjustment and tilting of the sawing unit
• Rip fence with an aluminum guiding profile, length 1200 mm

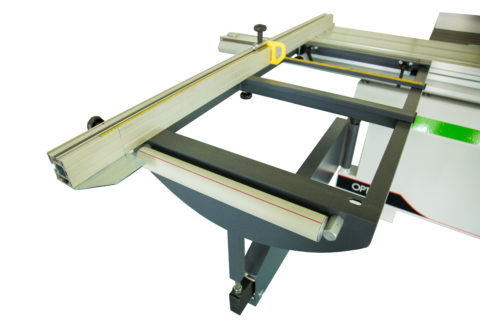

• Outrigger table / cross-cut carriage including 2 heavy-duty metal flip stops (D1)
• Integrated safety elements, Emergency STOP switch, and safety limit switches conforming to CE directives
• Table extension and table side extension with dimensions 900 × 400 mm and 800 × 1200 mm
• Riving knife
