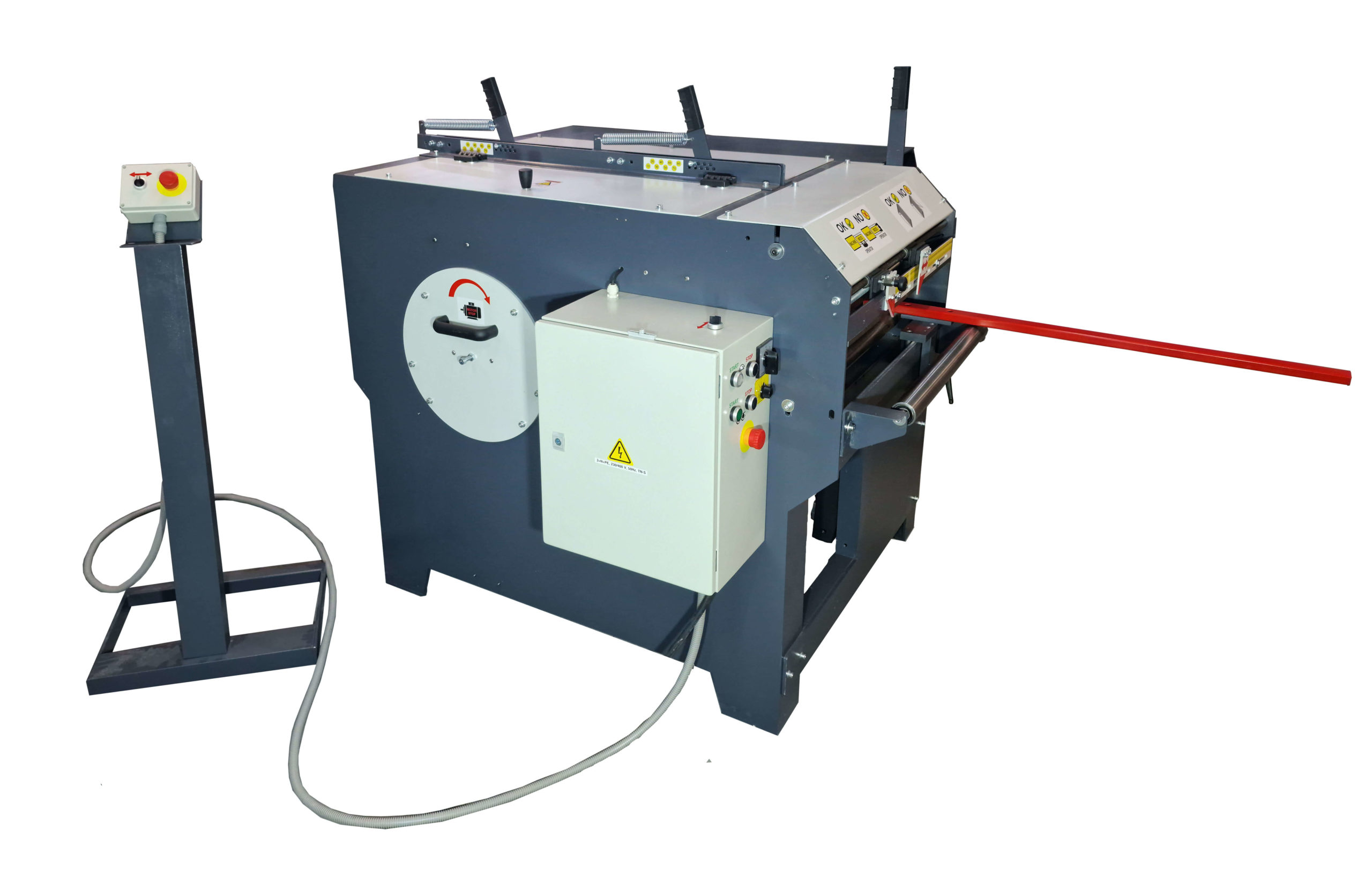

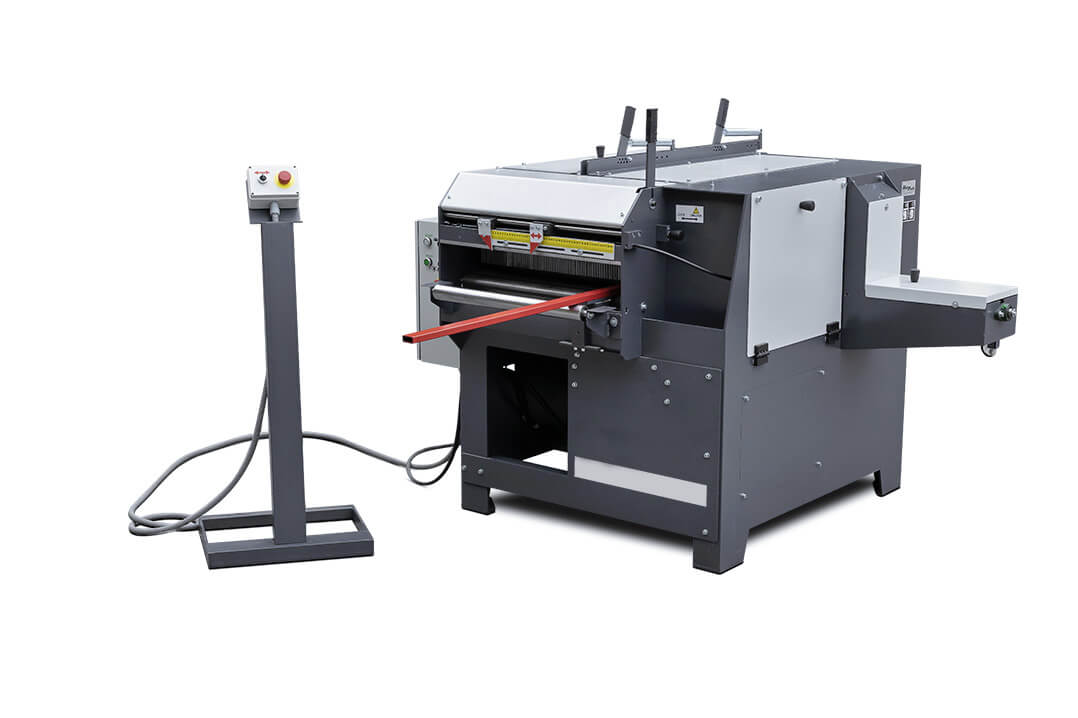

Multi-blade rip saw RP-700 A 3.0
Photography
Detail
Parameters
- Saw blade diameter: 300 mm
- Maximum material height: 80 mm
- Main motor power output: 7.5 – 18 kW
- Length of feed rollers: 600 mm
- Active spindle length: 500 mm
- Blade travel: 400 mm
- Maximum timber width: 700 mm
- Feed system: Lower feed via 3 steel rollers
- Blade adjustment: Manual / Electrical
Description
The KUSING RP-OP-700 A 3.0 multi-blade rip saw is an ideal sizing solution for operations seeking a machine for longitudinal timber splitting. The 3.0 designation indicates the configuration of the steel feed rollers. In this specific variant, there are three driven feed rollers. This design concept is recommended for enterprises that do not process thick and long cants. For high-capacity heavy cant processing, we recommend the 4.2 configuration variant, which features six feed rollers in total.
The machine offers a wide array of modifications and accessories for ideal integration into the production layout. This accessory ecosystem consists of:
- Infeed roller table
- Outfeed roller table
- Digital distance indicator for edging operations
- Variable positioning of any number of saw blades using specialized blade carriers
- Simultaneous adjustment of two blades with a fixed spacing dimension
- Lateral rip fence for processing straight-edged boards
Accessories
Digital Control
The machine can be equipped with an optional digital control system that ensures precise positioning of the moveable saw blade.
Digital length measurement
If the machine is primarily used for edging boards to their maximum yields but you still require the capability to occasionally and quickly cut a board to an exact dimension, then installing just a digital readout is the right cost-effective and time-saving solution for you.
Option: 2 – 8x Lasers
The RP-700 machines can be equipped with a custom number of line lasers ranging from 1 to 8 units.
Technical Data
| Machine dimensions (L x W x H) | 1400 x 1700 |
| Working height | 830 mm |
| Infeed width | 700 mm |
| Maximum depth of cut | 80 mm |
| Spindle diameter | 50 mm |
| Active spindle length | 500 mm |
| Tool dimensions (diameter) | 300 mm |
| Spindle speed | 4000 rpm |
| Feed speed range | 4-18 m/min |
| Feed motor power | 0.55 kW |
| Number of feed rollers | 3 x |
| Number of pressure rollers | 2 x |
| Main motor power output | 7.5 /11 / 15 / 18 kW |
| Number of positioning blades | 1 + 1 |
| Laser cutting line indicator | Optional |
| Digital width indicator | Optional |
