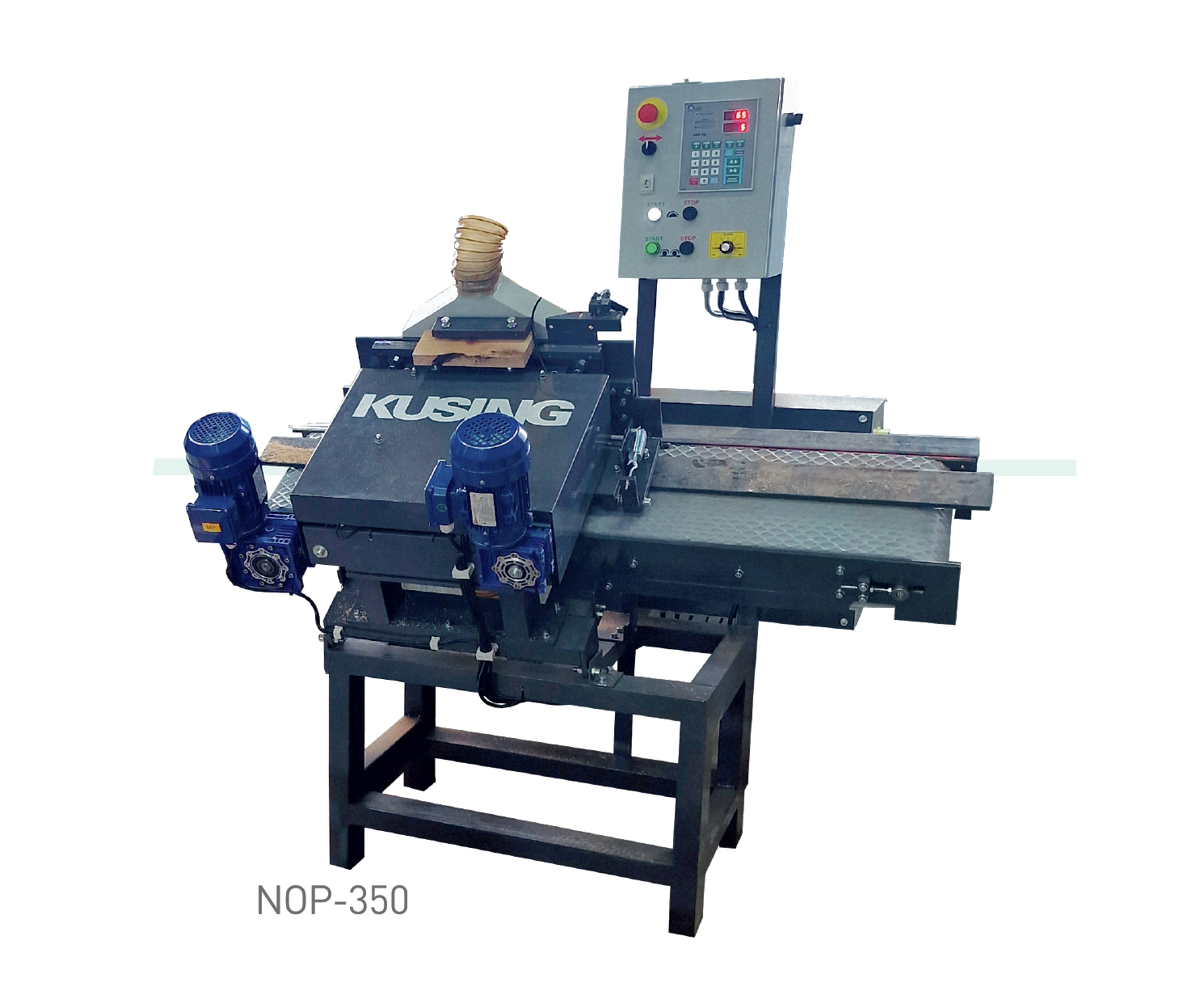

Board edger NOP-350

Photography

Detail

Parameters

  • Tool diameter: ø350mm
  • Minimum material length: 200mm
  • Electrically adjustable rip fence
  • Open-frame design
  • Manual pressure unit height adjustment
  • Maximum depth of cut: 55mm
  • Motor power output: 5.5 / 7.5kW
  • Feed speed range: 6 – 30 m/min

Description

The machine is engineered for the trimming of pre-cut blanks from a maximum width of 250 mm down to a minimum width of 40 mm, and up to a thickness of 50 mm. It is presupposed that one reference edge of the material is pre-straightened. The width of the cut-off material is defined by means of an electrically adjustable rip fence. The workpiece is advanced via a feed belt, with an adjustable feed speed rate.

Accessories

Workpiece Width Adjustment
The width of the processed material is configured via an electrically programmable rip fence.

Technical Specifications

Maximum material width250 mm
Maximum material height55 mm
Spindle diameterø 30 mm
Saw blade diameterø 350 mm
Saw blade speed4000 ot/min
Motor power output5.5 / 7,5 kW
Feed motor power0,55 kW
Material feed speed6 – 30 m/min
Dust extraction outlet1 x 120 mm
Machine weight550 kg
