K2S 400
Photography
Detail
Parametre
- Tool diameter range: From ø 150 mm to ø 300 mm
- Working width: 400 mm
- Material feed: Manual / power feeder
- Applications: Polishing, fine intermediate denibbing/sanding, structuring (removing soft grain), and processing of complex-shaped components
Description

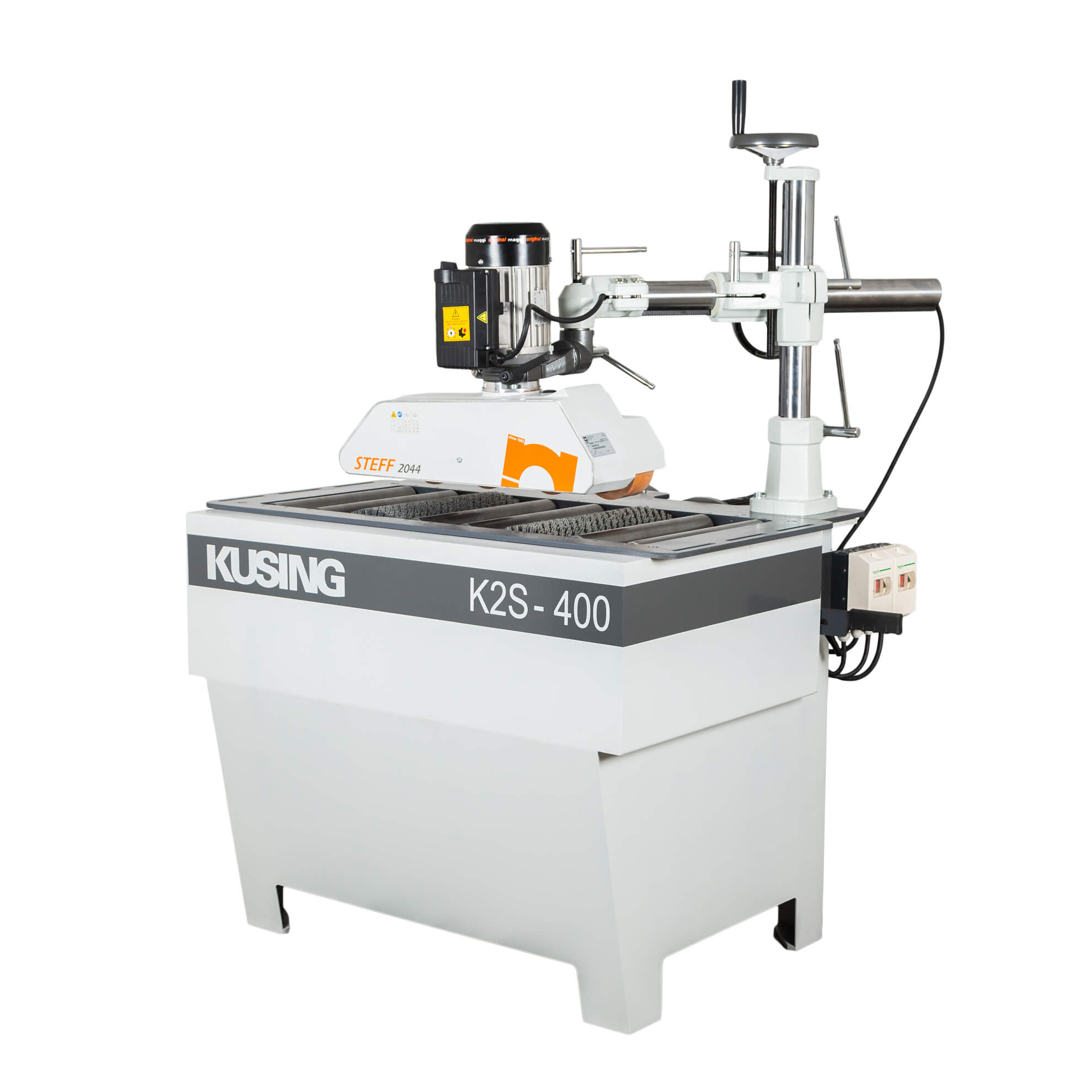

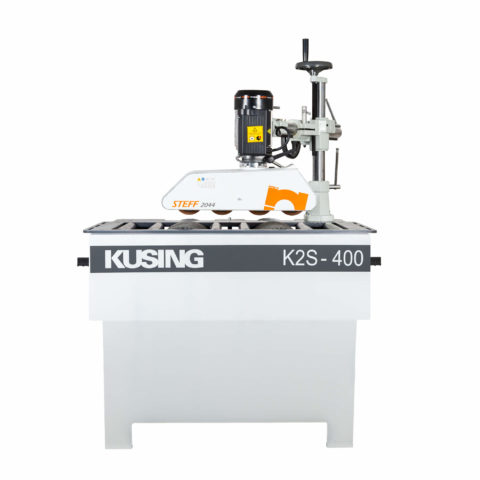

The K2S 400 machine is a double-spindle brush sanding and texturing machine with the tools positioned below the working table level. Mechanically straightforward yet highly reliable, the machine surprises with its efficiency and productivity, making it a capable asset even within larger production facilities. The machine can be equipped with various types of tooling and is suitable for processing even hardwoods, delivering a finished surface after just a single pass.
Technical Specifications
| Machine dimensions (L × W × H) | 1000 x 1020 x 840 mm |
| Working height | 400 mm ( 800 mm ) |
| Tool diameter | 250 mm ( 150 – 300 mm ) |
| Spindle diameter | 40 mm |
| Tool speed | 900 rpm (1400 rpm) |
| Spindle motors power output | 2 x 2,2 kW |
| Material feed | Manual / power feeder |
| Weight | 300 kg |
