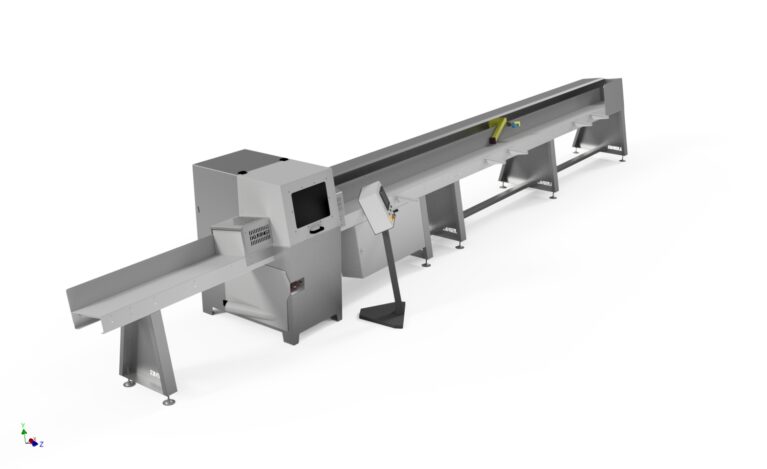

Bottom cross-cut saw SPS-500

Photography

Detail

Parameters

  • Blade diameter: 500 mm
  • Maximum depth of cut: 150 mm
  • Maximum cutting width: 350 mm
  • Tool speed: 3200 rpm
  • Main motor power output: 3, 4, 5.5, 7.5 kW
  • Machine weight: 390 kg

Description

The KUSING SPS-500 and SPS-500LR are fully electrical bottom cross-cut saws with a main motor power output range of 3, 4, 5.5, and 7.5 kW. The machines feature a continuously variable cutting cycle speed adjustment via a frequency inverter from 2 to 6 seconds. The system offers a wide array of configurations for roller tables as well as variants with CNC-controlled positioning stops.

Accessories

SPS-500 JPG

SPS 500 2 + 2m
Standard configuration with 2 + 2 meters of extension tables.

Technical Specifications

Main motor power output3, 4, 5.5, 7.5 kW
Tool diameter500 mm
Depth of cut150 mm
Cutting width350 mm
Lifting motor power0.55kW
Spindle speed3200 rpm
Cycle speed2 – 6 s.
Weight380 kg

Scope of Delivery

The machine is supplied with standard roller tracks according to the customer’s specifications.
