SFna 1200

Photography

Detail

Parameters

Maximum spindle stroke: 170 mm
Spindle diameter: 30 mm
Tenoning table dimensions: 980 × 450 mm
Maximum tool diameter: ø 180 mm
Spindle tilting range: 0° – 45°
Motor power output: 3 – 4 kW
Machine weight: 320 kg

Applications: Solid wood, laminated panels, plastics, composite materials

Description

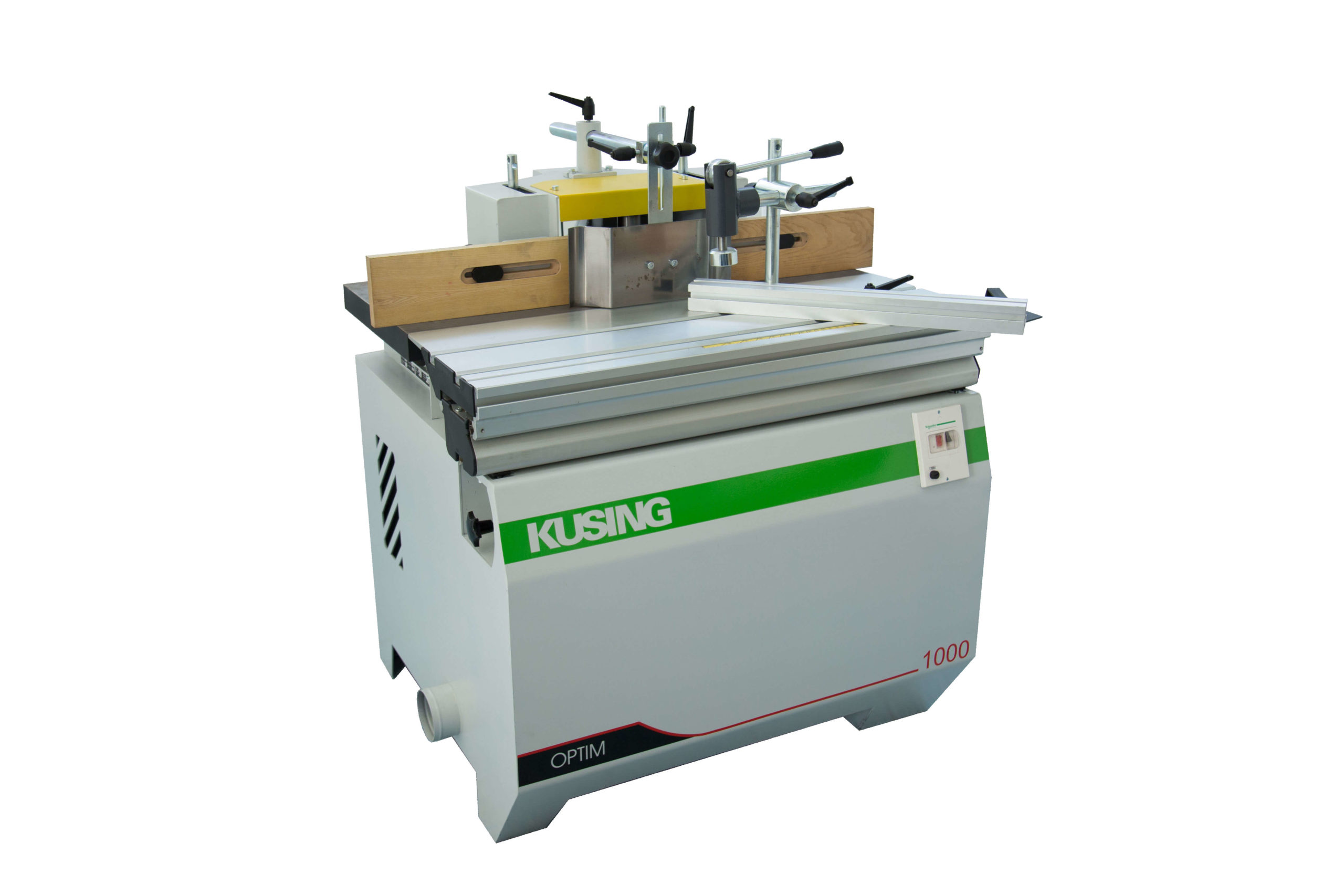

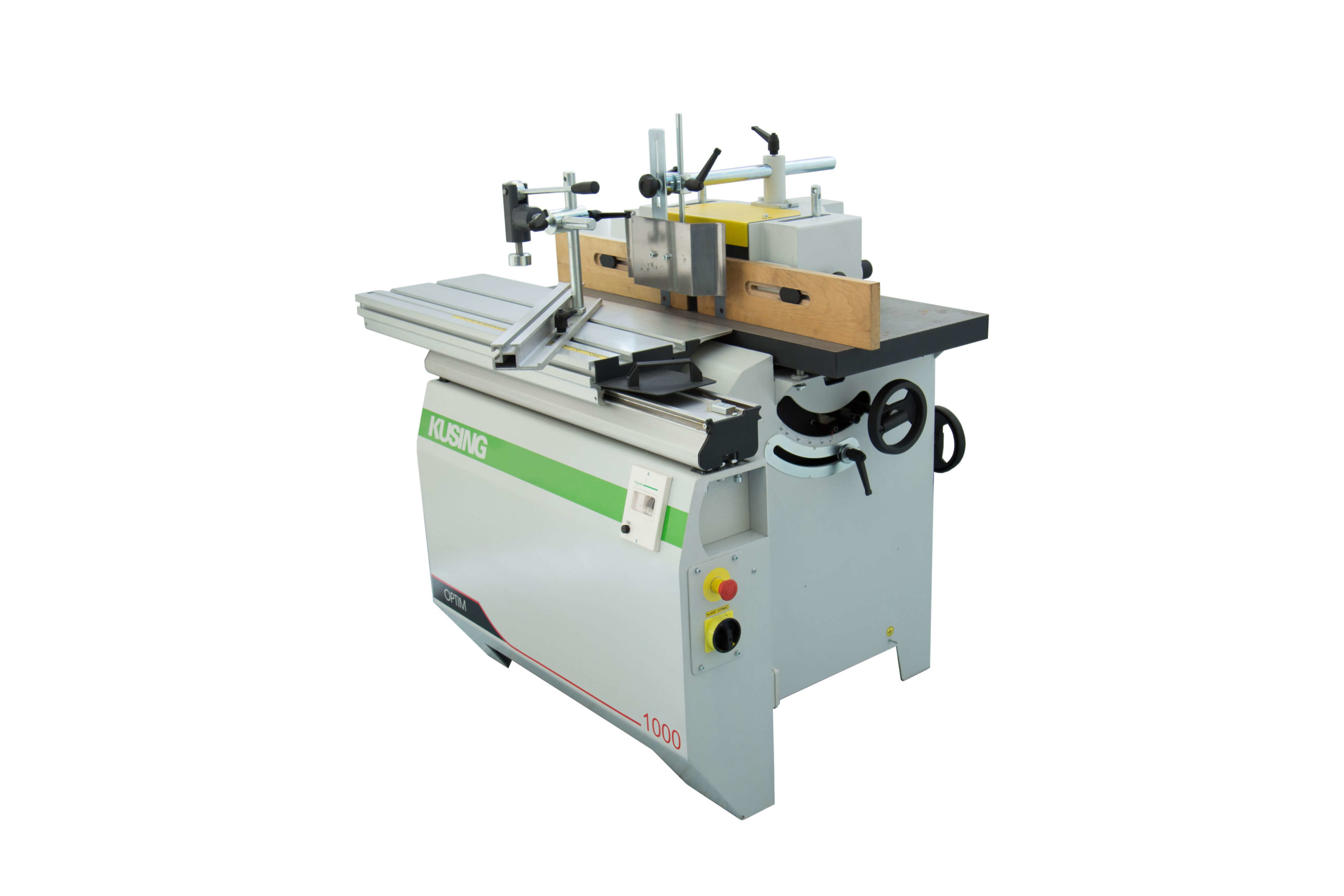

The SFna 1200 – OPTIM professional spindle moulder is designed for a wide range of users demanding high quality and advanced design configuration. The core characteristic of the machine is a robust aluminum sliding carriage utilizing a guidance system on hardened steel rods, providing maximum rigidity and durability. This machine represents an ideal solution for joinery workshops requiring a versatile system for all types of profiling and machining operations.

Accessories

Sliding Table Assembly
The sliding carriage, configured in this variant also as a tenoning table, incorporates hardened steel rod ways technology to ensure absolute vibration damping.

Aluminum Fences
The machine is equipped as standard with calibrated aluminum fence plates.

The front guard/pressure guide is manufactured from transparent polymer, enhancing operational ergonomics and safety.

Technical Specifications

Feed belt width	600 mm ( optional)
Conveyor feed speed	3 – 12 m/min
Spindle diameter	ø 40 mm
Spindle length	600 mm
Recommended tool diameter	250 mm
Tool speed	Continuously variable
Main motors power output	2 x 4 kW
Conveyor motor power	0,55 kW
Dust extraction outlet	2 x 120 mm
Machine weight	850 kg
Motorized tool lift	Yes
Spindle oscillation	Optional
