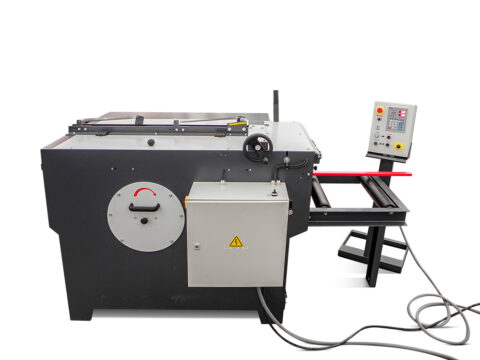

Multi-blade rip saw RP-700 PRO - Kusing

Parameters

• Saw blade diameter: 350 mm
• Maximum material height: 105 mm / 130 mm
• Main motor power output: 7.5 – 22 kW
• Length of feed rollers: 600 mm
• Active spindle length: 500 mm
• Blade travel: 400 mm
• Maximum timber width: 700 mm / 850 mm
• Feed system: Lower feed via 6 steel rollers
• Blade adjustment: Electric Digital

Description

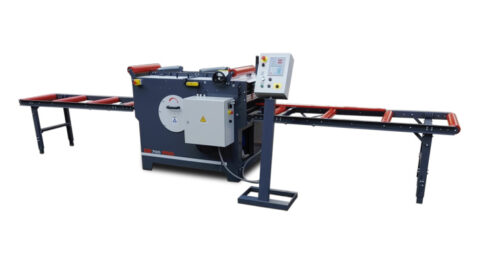

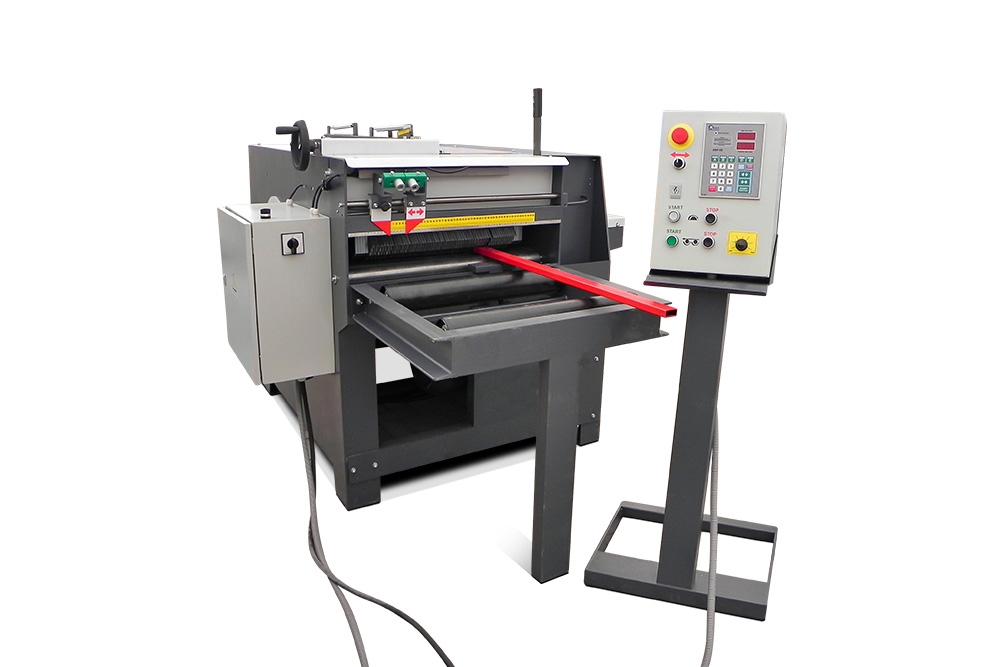

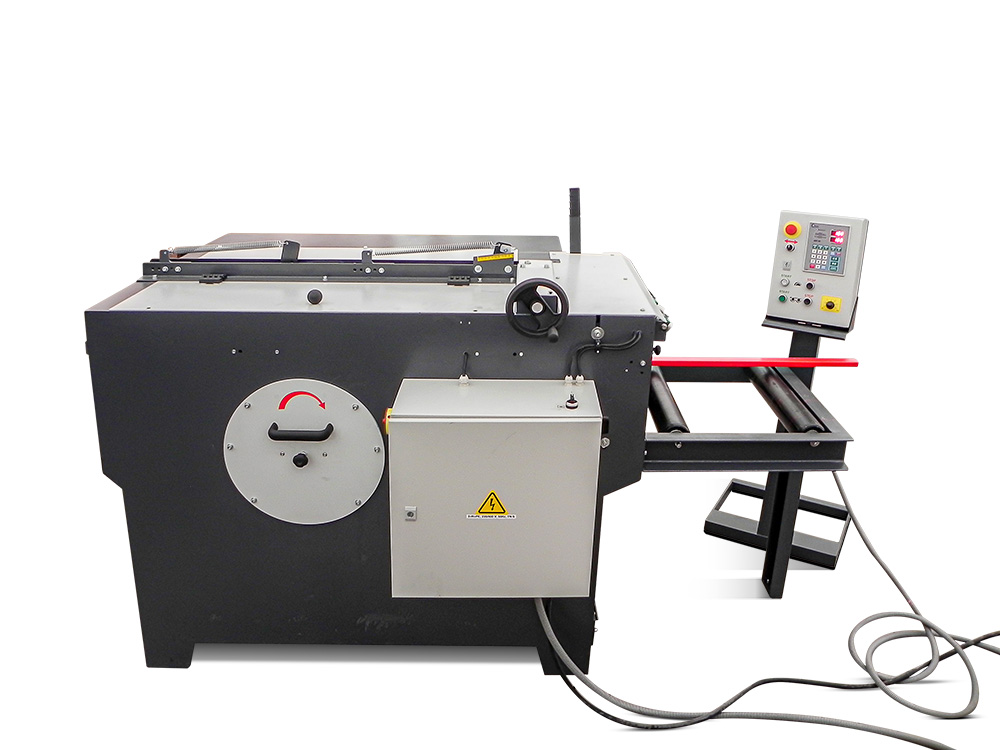

The KUSING RP-OP-700 PRO 4.2 multi-blade rip saw belongs to the industrial product range engineered for operations seeking a high-performance machine for longitudinal timber splitting. The 4.2 model series is designed for heavy-duty industrial environments where the multi-blade rip saw serves as one of the primary production assets. It is highly recommended as a secondary machine following a band saw for processing board materials and thicker cants up to a maximum height of 105 mm. The 4.2 designation indicates the configuration of the steel feed rollers. In this specific variant, there are 4 driven feed rollers at the bottom and 2 pressure feed rollers at the top.

The integration of top driven feed rollers substantially increases operational efficiency and machine performance when handling heavy loads. Furthermore, this system is highly recommended for processing kiln-dried timber, which is frequently prone to warping. In conventional setups featuring only lower rollers, warping significantly reduces the feeding efficiency as well as the contact surface area between the timber and the rollers.

This design concept is recommended for enterprises requiring the processing of thick and long cants up to a maximum height of 105 mm.

The machine offers a wide array of modifications and accessories for ideal integration into the production layout. This accessory ecosystem consists of:

• Infeed roller table
• Outfeed roller table
• Digital distance indicator for edging operations
• Variable positioning of any number of saw blades using specialized blade carriers
• Simultaneous adjustment of two blades with a fixed spacing dimension
• Lateral rip fence for processing straight-edged boards

Machine Modifications:

Extension of feed rollers to 750 mm

Structural throat opening: 850 mm

Saw blade diameter: 400 mm (Maximum depth of cut: 130 mm)

Accessories

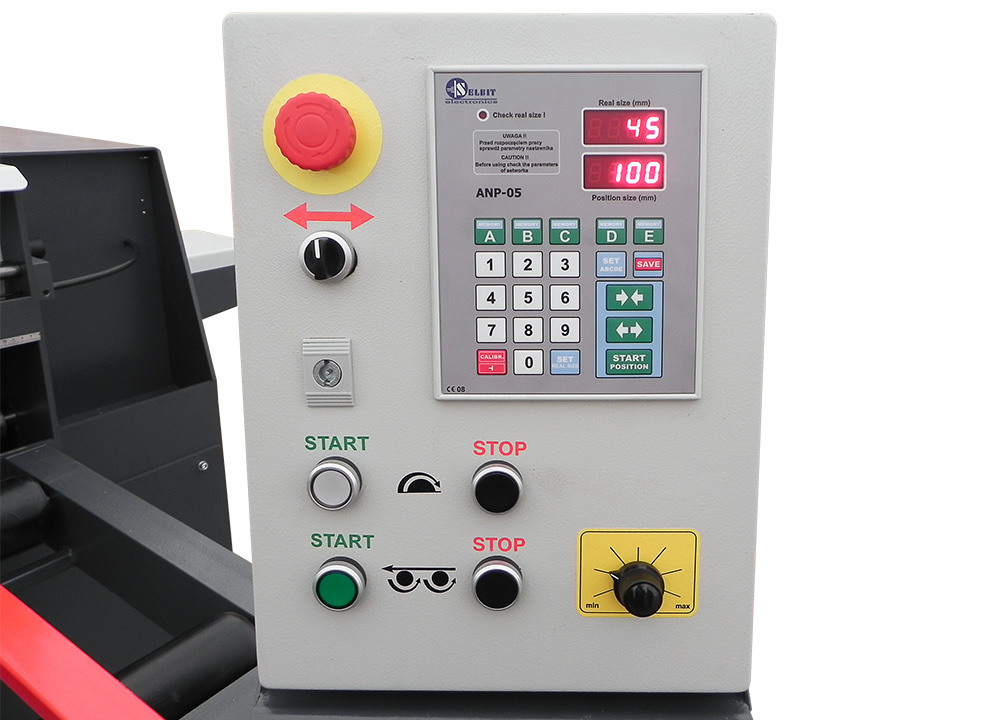

Digital Control

The machine is equipped as standard with a digital control system that ensures precise positioning of the saw blade and accelerates workflow thanks to an integrated memory capacity for 5 preset values.

Basic Cutting Parameters

Standard parameters for the layout and distribution of saw blades on the spindle shaft featuring various option configurations.

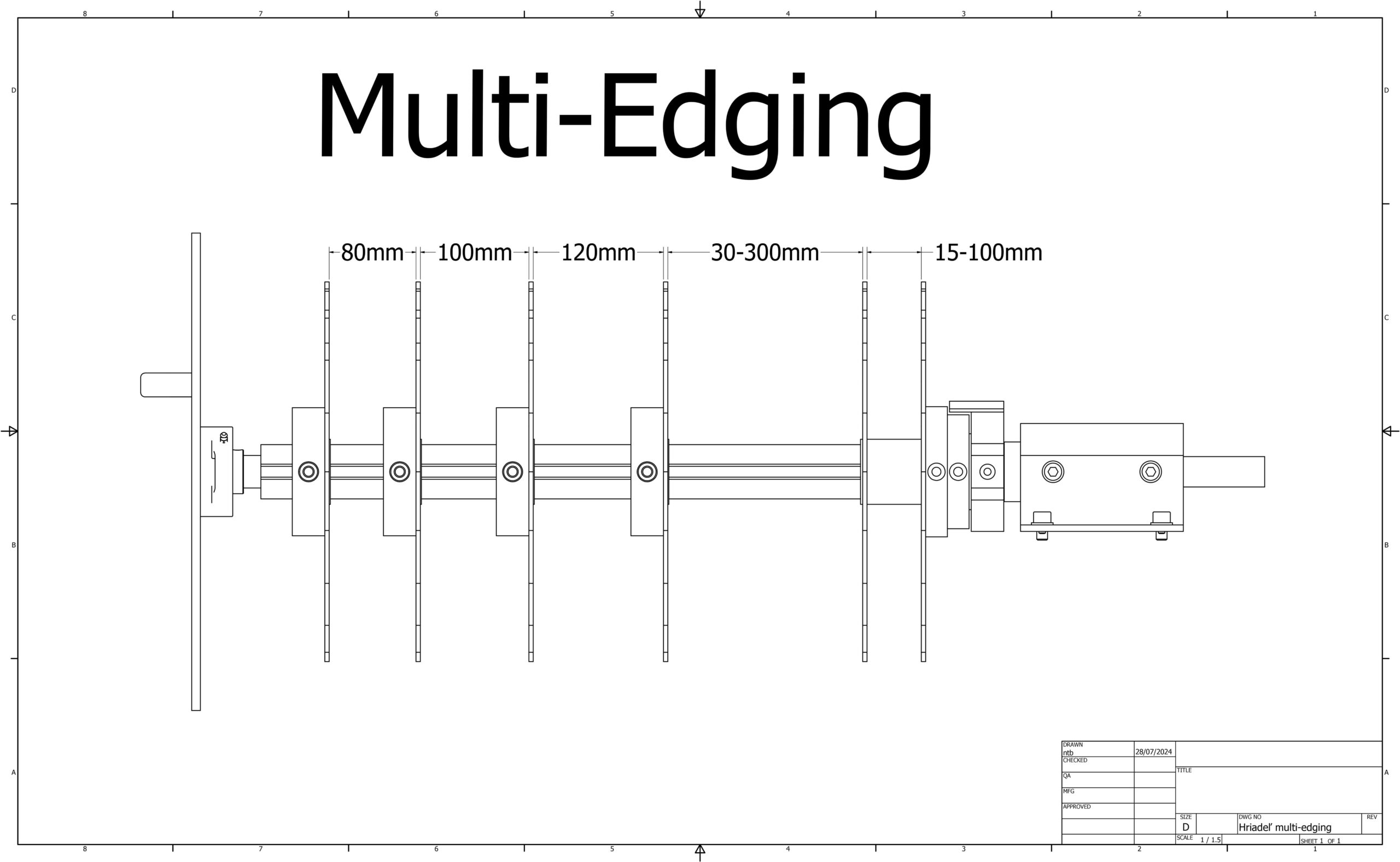

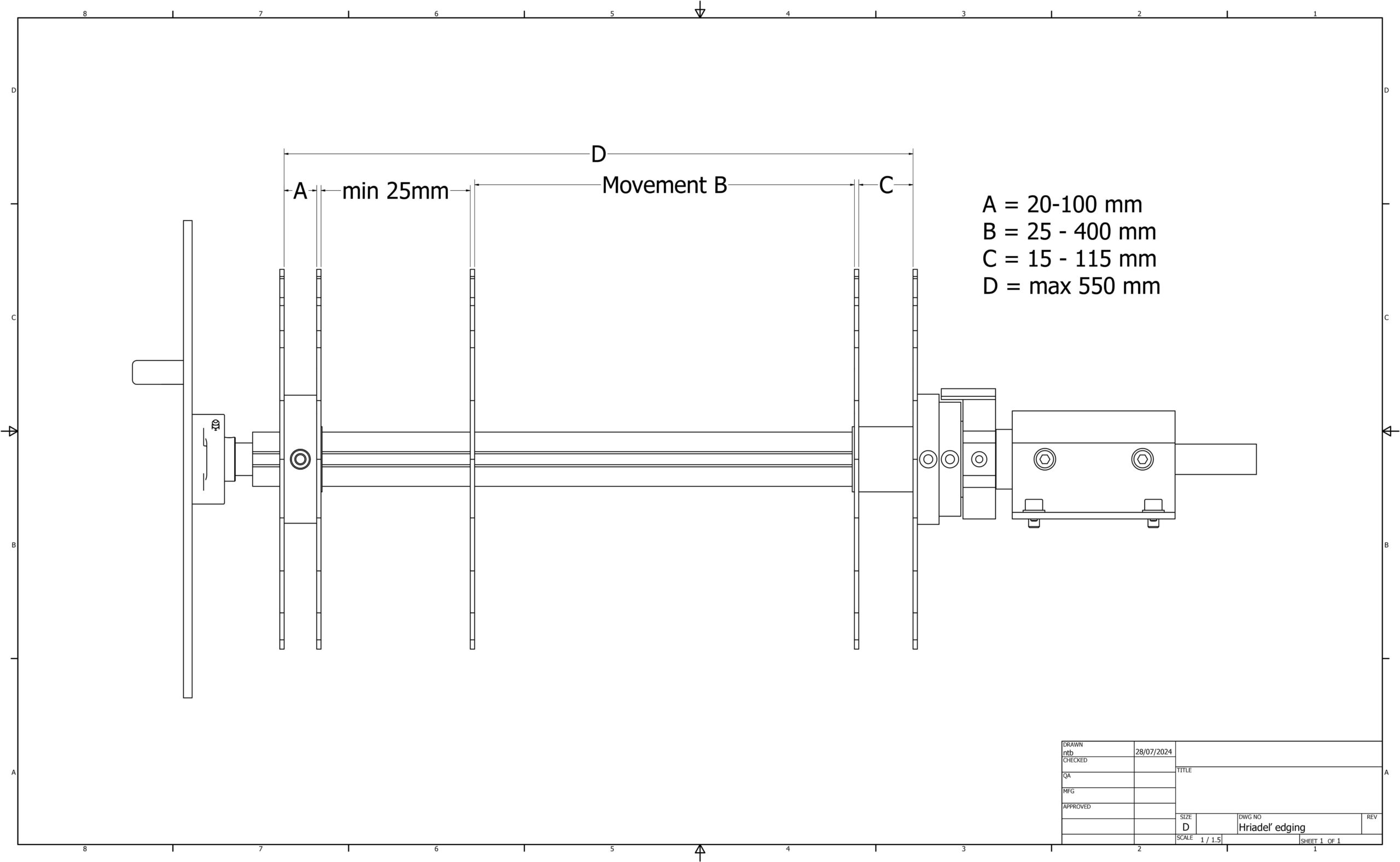

Blade Layout in Multi-Edging Configuration

The distribution of blades in the Multi-Edging configuration offers rapid and efficient board edging to fixed dimensions.

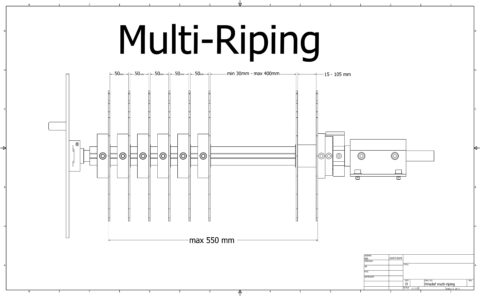

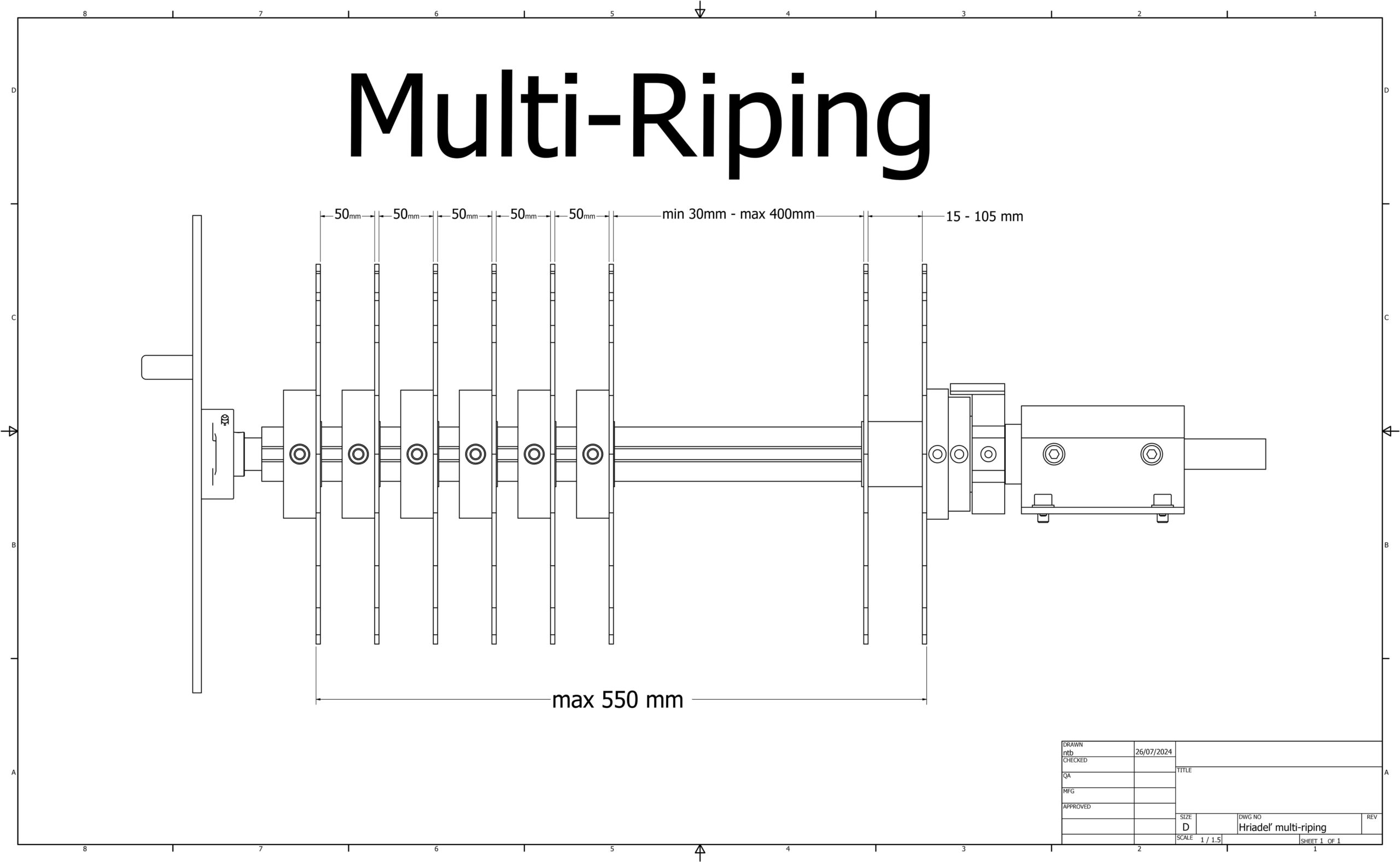

Blade Layout in Multi-Ripping Configuration

The distribution of blades in the Multi-Ripping configuration is frequently utilized for the production of structural construction timber.

The primary advantage of a machine equipped with a moveable blade unit is the versatile combination of multi-blade ripping and board edging to exact dimensions without requiring any mechanical dismantling.

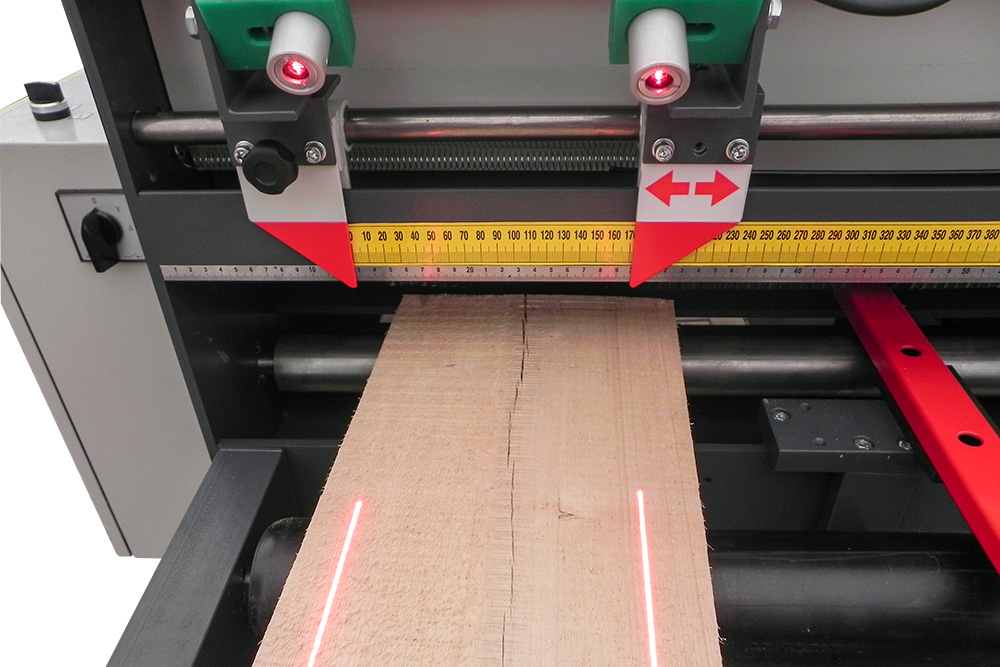

Variable Number of Lasers

The RP-type multi-blade rip saws can be equipped with a custom number of line lasers ranging from 2 to 8 units.
