SPEED FORMAT

Photography

Detail

Parameters

  • Material: Solid wood
  • Cutting length: From 1200 to 6200 mm
  • Maximum saw blade diameter: ø 550 / 30 mm
  • Number of blade positions: 60 / 100 / 160 mm
  • Maximum depth of cut with a 5550 mm blade: 160 mm
  • Sawing unit tilting: NO
  • Main saw blade speed: 3500 rpm
  • Main motor power output: 5.5 / 7.5 / 11 kW
  • Rip fence cutting width: 500 mm
  • Table dimensions: 6200 × 1000 mm
  • Cutting length: 6200 mm
  • Cutting speed range: 5 – 30 m/min

PDescription

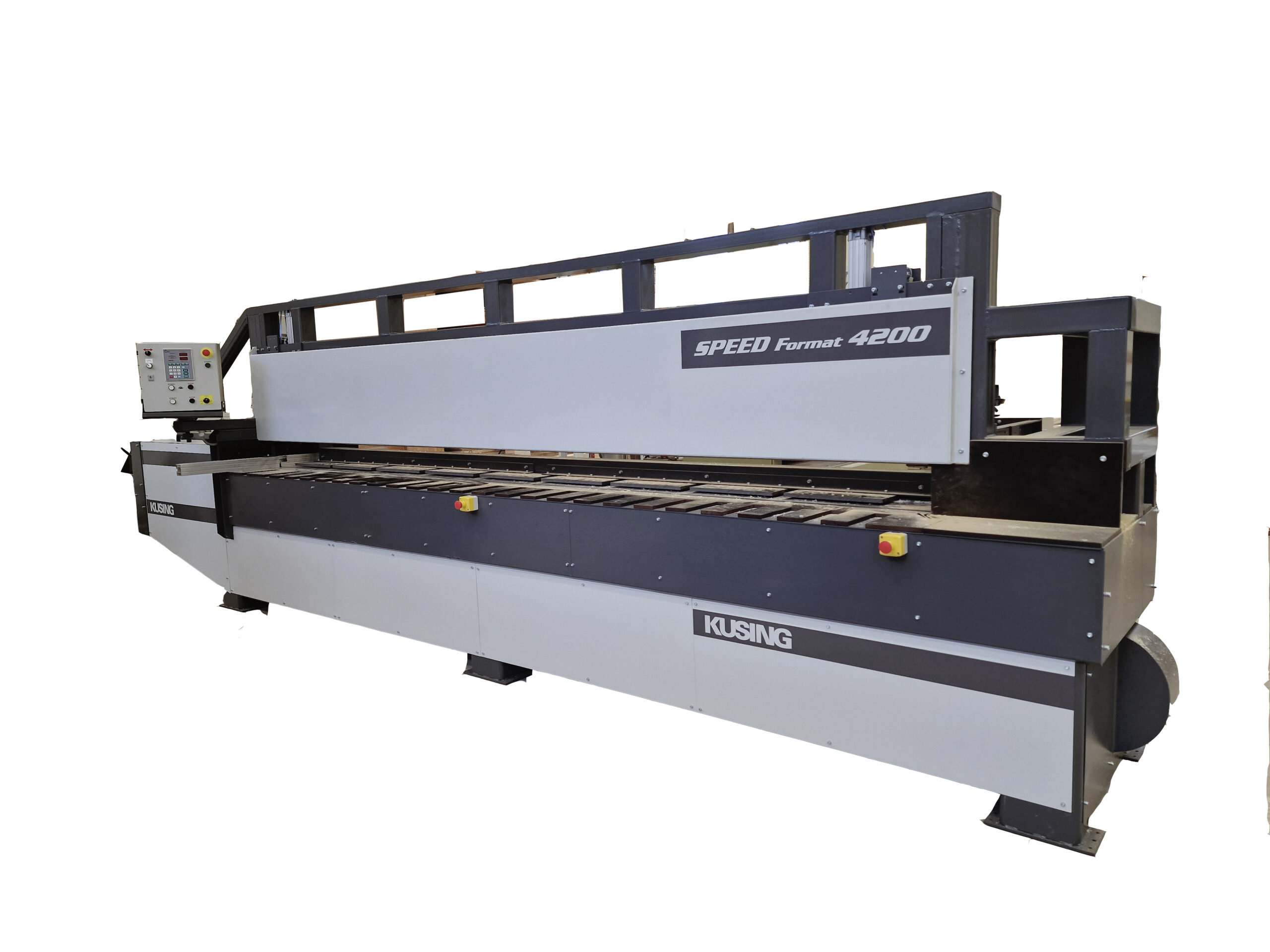

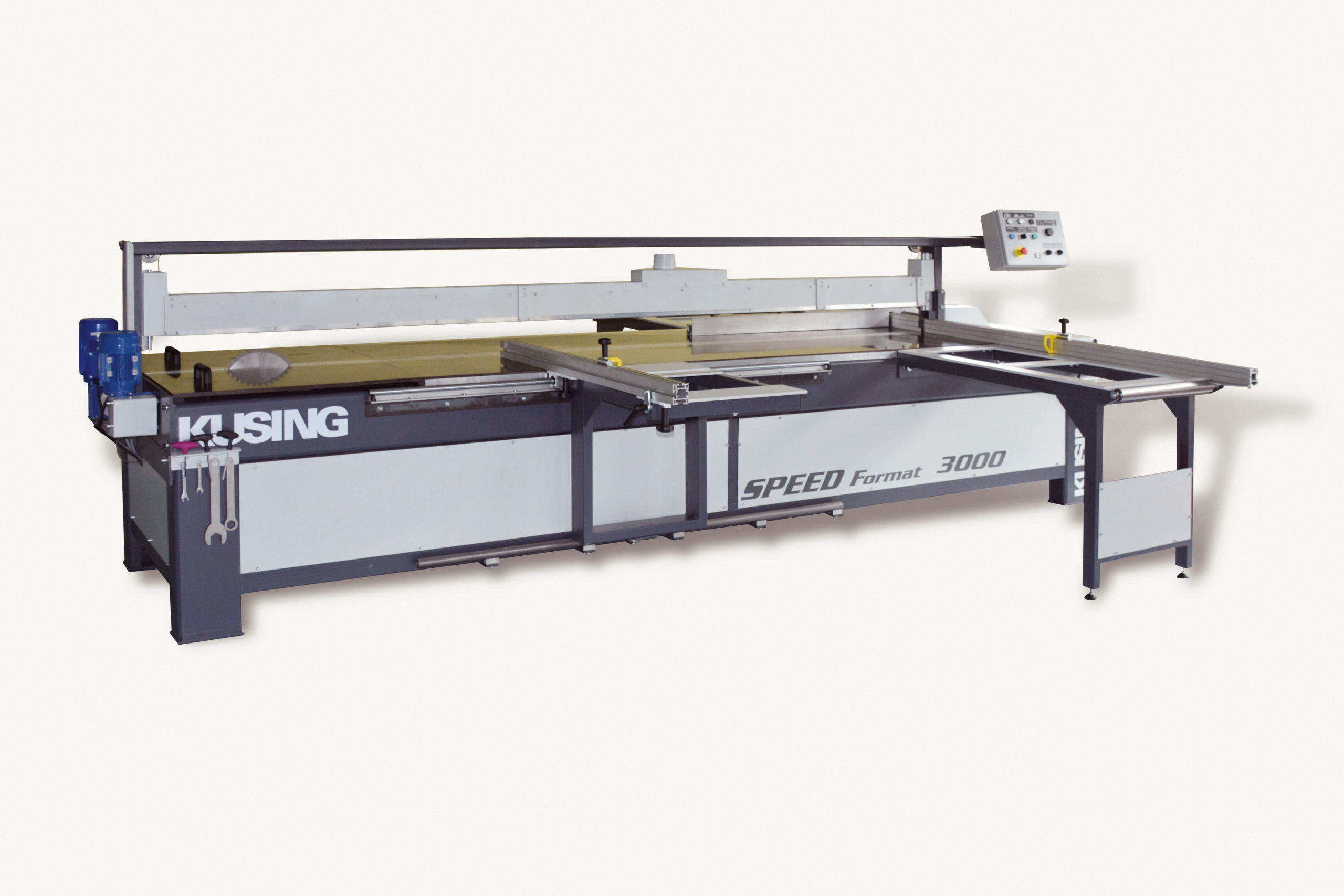

The KUSING SPEED FORMAT long-bed ripping and edging saw for solid wood represents a new generation of longitudinal material splitting. The machine concept, where the material remains stationary on the table while the saw blade performs the cutting movement, offers high-precision cutting that is frequently required, especially when processing expensive and hard wood species such as OAK. Thanks to the integrated laser cutting line indicator, highly accurate qualitative timber optimization can be easily achieved.

The machine is also exceptionally well suited for cutting panel materials, for instance, in the manufacturing of timber frame houses or special packaging materials, such as sizing OSB boards.

The primary advantages of this design concept are:

  1. Workplace safety
  2. High cutting precision
  3. Increased efficiency and performance

Accessories

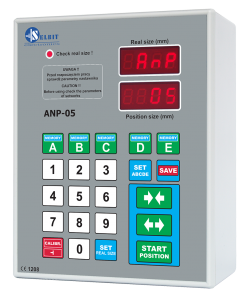

ANP-05 (2)

Control System
The standard configuration of the control system utilizes a classic asynchronous motor and an interface capable of storing 5 preset values.

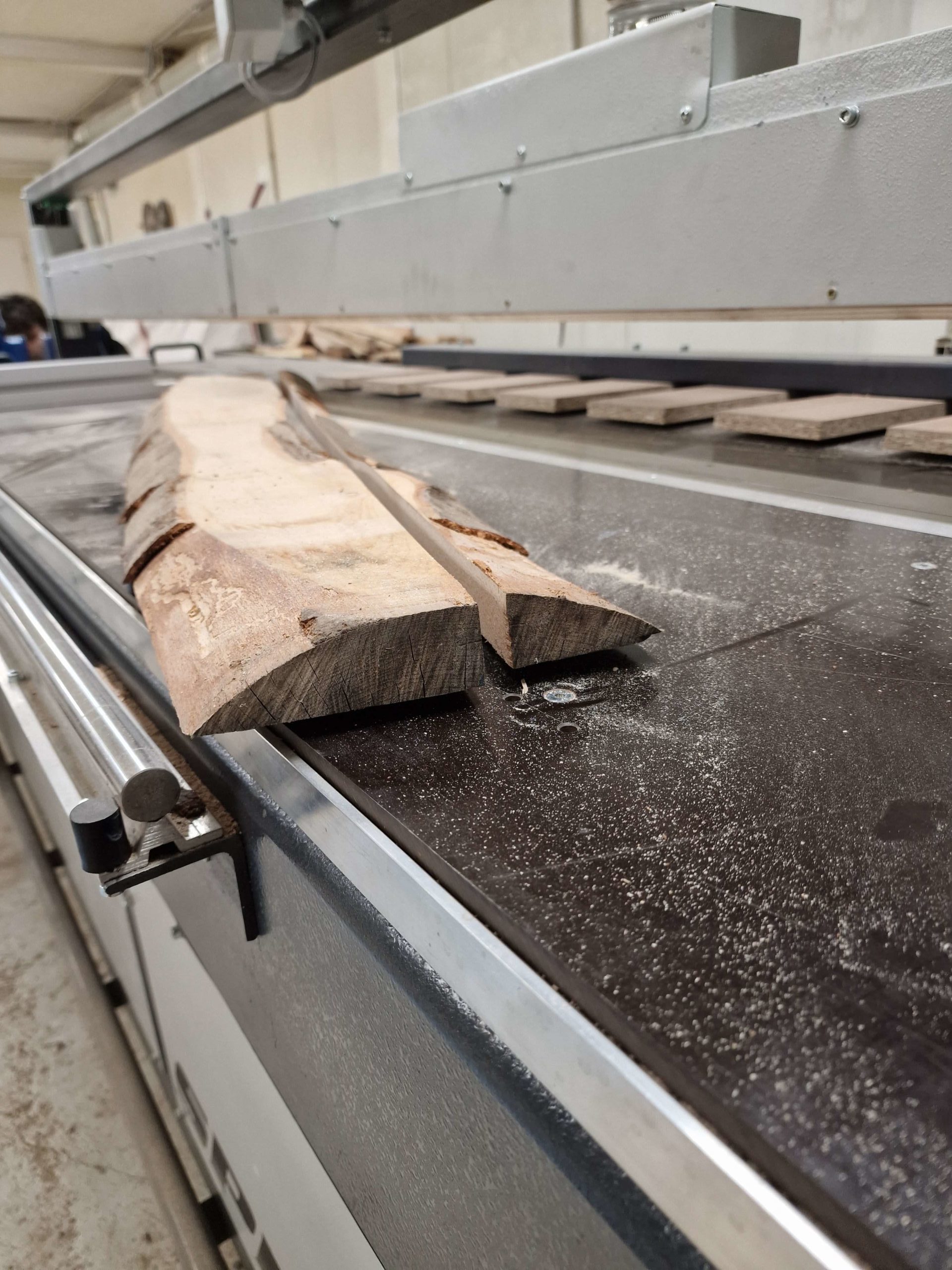

Material Splitting
Splitting material has never been easier!
The machine offers comfortable, safe, and precise material cutting in the longitudinal direction.

20230111_091721 (1)

The Perfect Combination

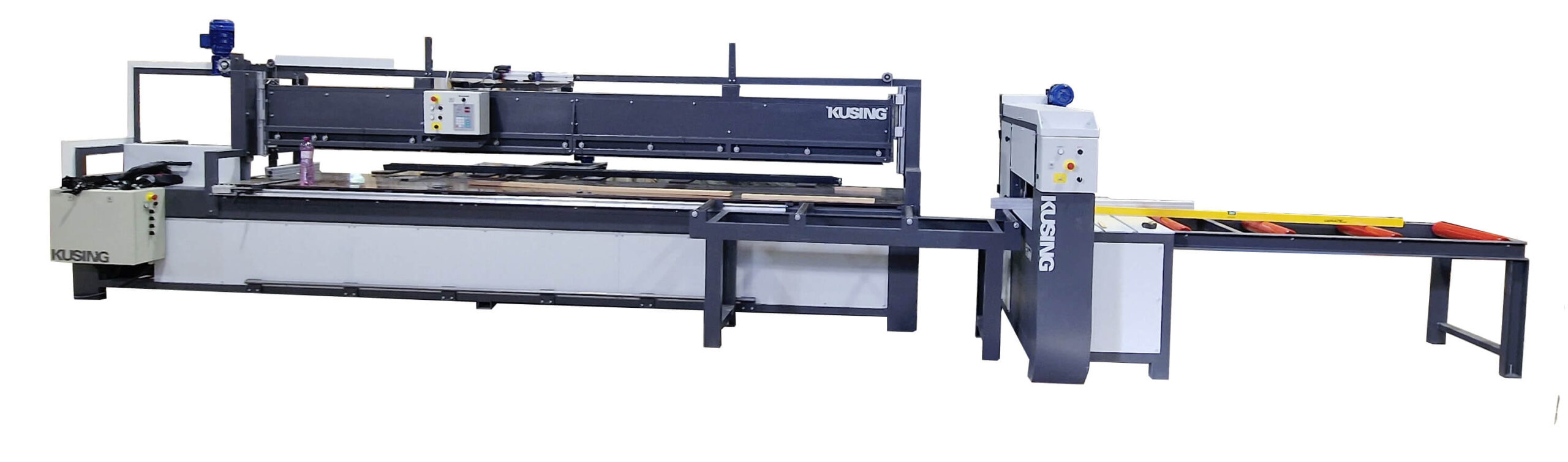

If you want to achieve the perfect combination of efficiency and high output, a processing line consisting of a cross-cut saw and the Speed Format machine can accelerate your daily workflow by 50% to 70% compared to conventional panel sizing saws or single-blade rip saws.

The very first to bring this concept to joiners and woodworkers!
