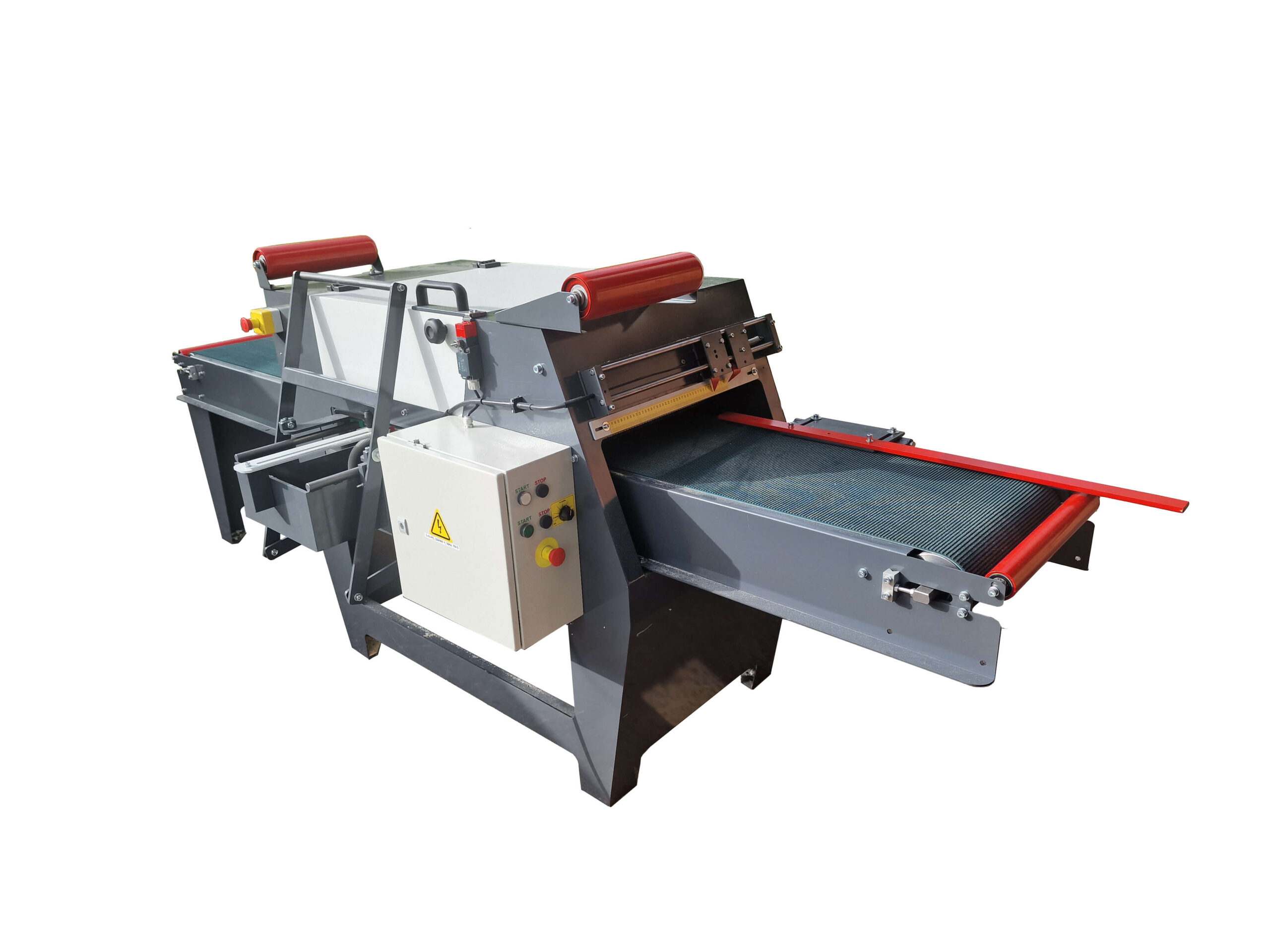

Edging saw OP- 400 ECO - Kusing

Parameters

• Saw blade diameter: 300 mm
• Maximum material height: 55 mm
• Main motor power output: 2 × 4 kW
• Maximum workpiece width: 600 mm
• Maximum cutting width: 380 mm
• Feed belt width: 400 mm
• Feed speed range: 4 – 18 m/min
• Feed system: 2× Rubber feed belt
• Saw blade adjustment: Manual

Description

An economical manual edging saw designed for smaller production plants and joinery workshops requiring simple, precise, and reliable board edging. The OP-400 ECO combines a robust construction, low maintenance, easy setup, and practical features that optimize daily workflow (including under-blade dust extraction, a material loading dimension indicator, and optional lasers).

In operation, you will appreciate ergonomic details that increase operator comfort: the dust extraction hood located directly beneath the saw blade helps maintain a clean workspace, while the front-mounted dimension indicator accelerates board loading and repetitive cutting cycles.

The machine processes boards up to 600 mm in width and 55 mm in thickness, equipped as standard with 2 × 4 kW motors (with an option for a higher-capacity configuration).

Key Features of OP-400 ECO

• High-precision parallel cuts – ensured by a rigid frame structure and a dual-feed belt machine concept.
• Manual cutting width control – intuitive and ergonomic adjustment of the cutting width.
• Compact footprint + low noise emission – suitable for production facilities with limited floor space.
• Clean working environment – integrated dust extraction designed directly beneath the saw blade to minimize airborne dust.
• Enhanced edging efficiency – front indicator of the set dimension for faster material handling, with the possibility of installing line lasers.

Target Applications

• Small sawmills and low-volume production plants
• Joinery and carpentry workshops
• Start-ups requiring accelerated production with minimal initial capital expenditure

Basic Technical Parameters

• Maximum board width: 600 mm
• Maximum board thickness: 55 mm
• Motor power output: 2 × 4,0 kW (voliteľne 2 × 5,5 kW)
• Cutting/Feed speed: 4 – 18 m/min

Accessories

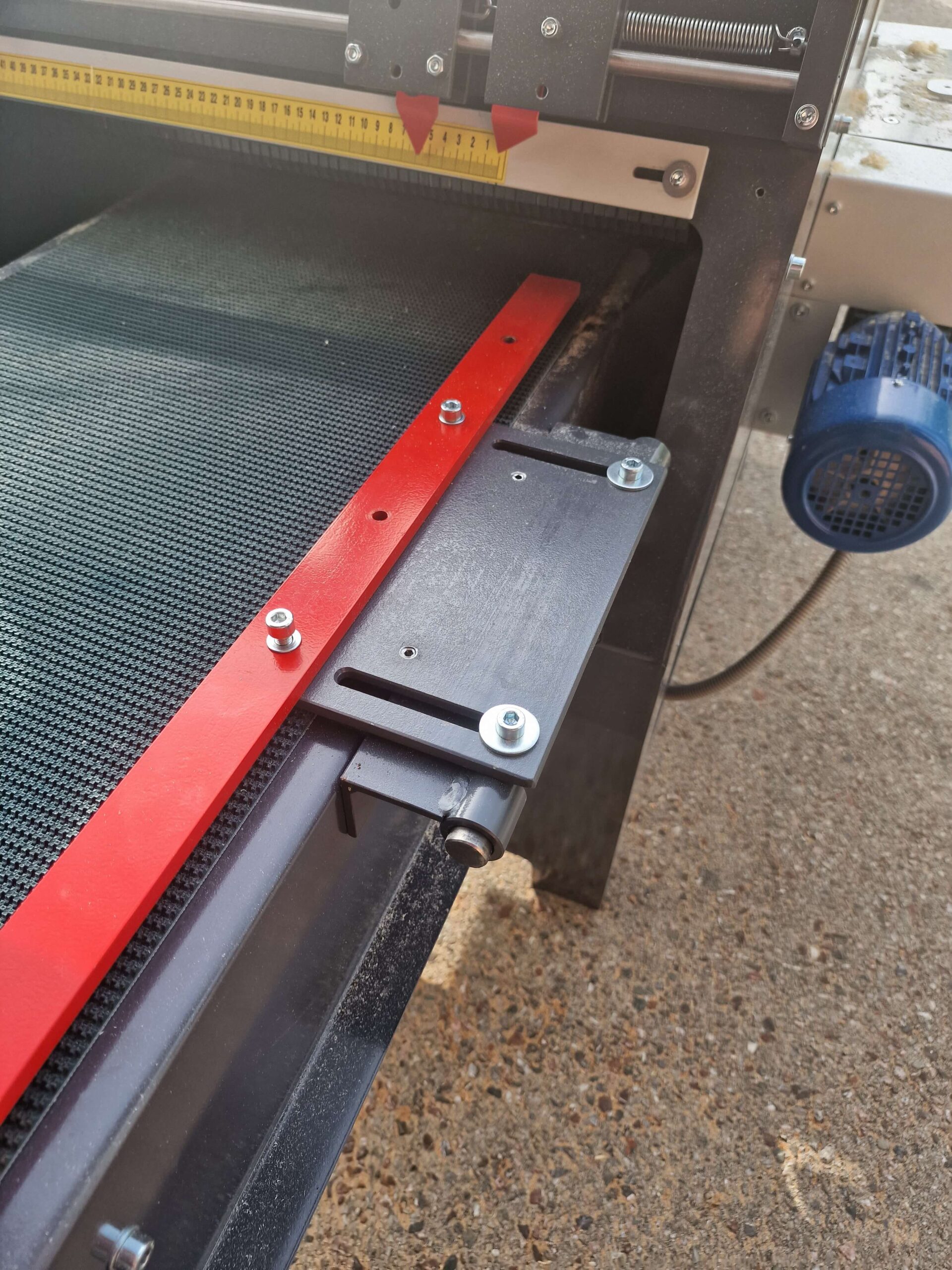

Flip-stop Rip Fence

Flip-stop longitudinal rip fence for trimming equilateral material.

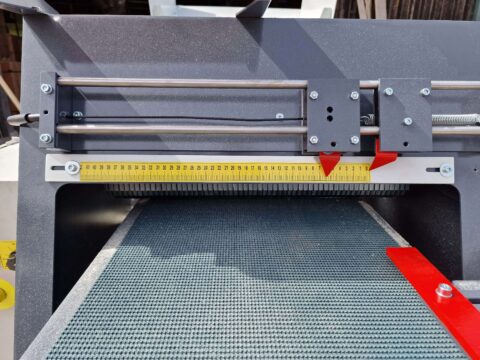

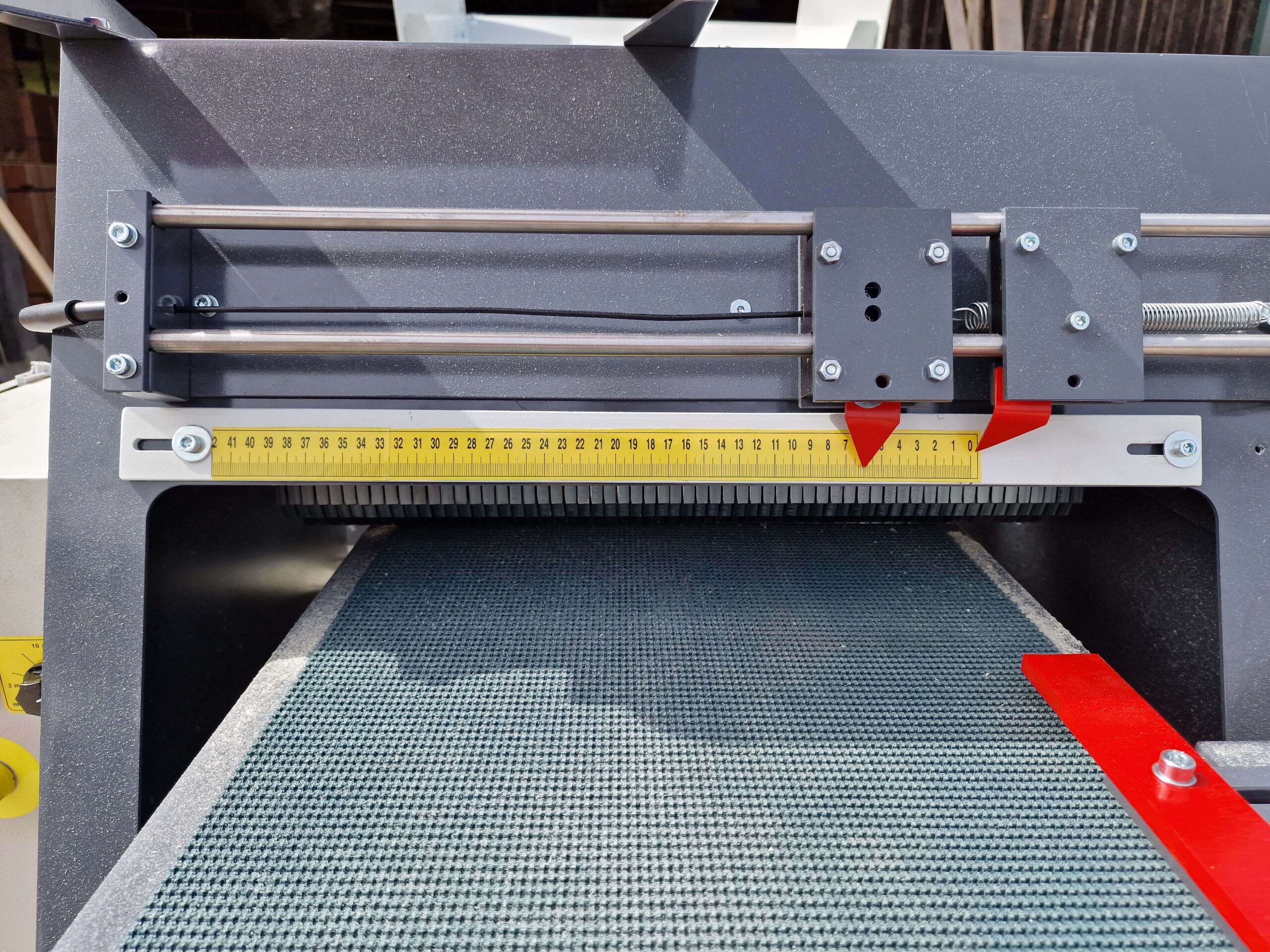

Front Indicators

Front-mounted blade position indicators for optimized material infeed alignment.

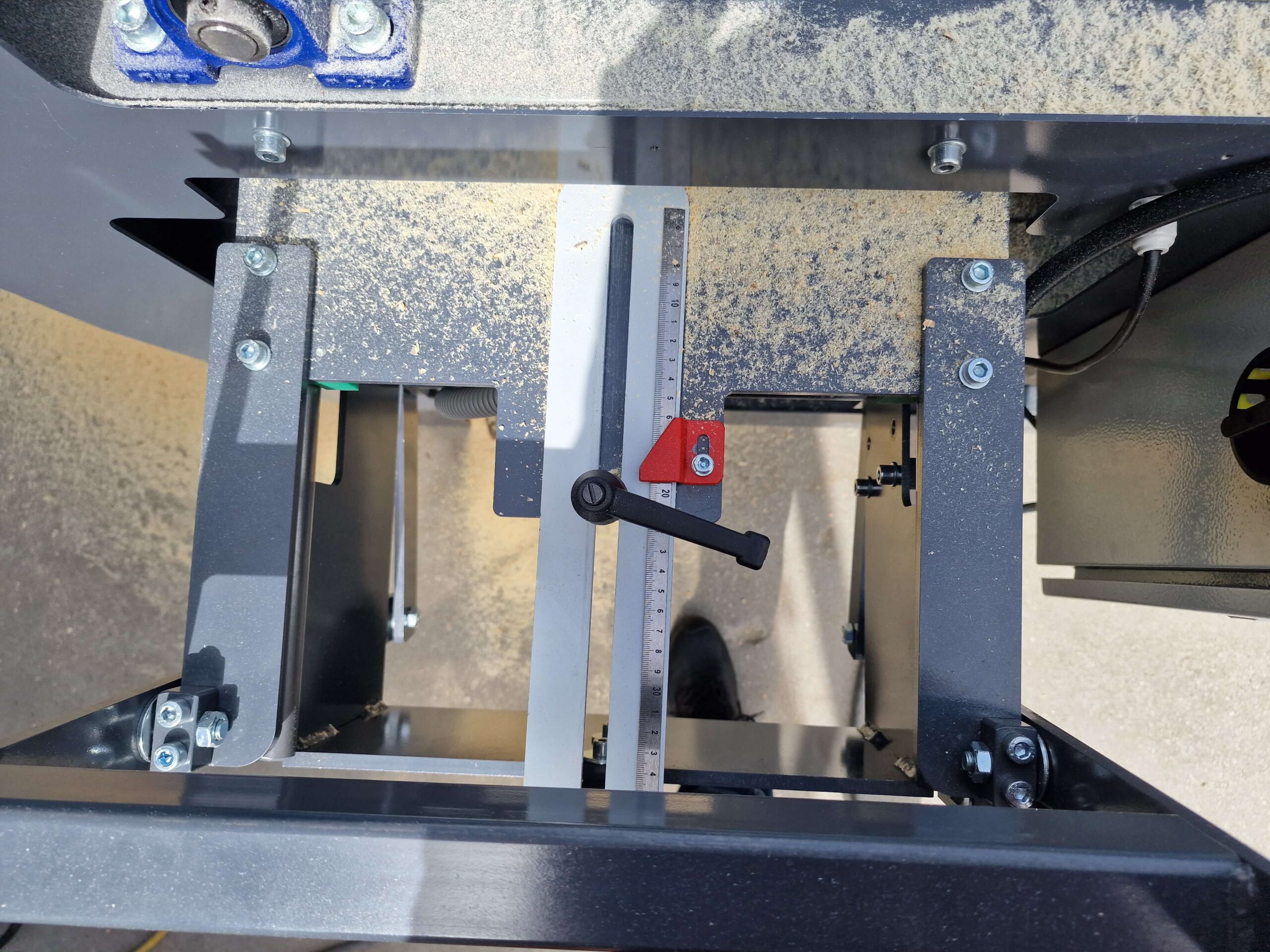

Rapid Manual Width Adjustment

Cutting width adjustment is operated from the exterior of the machine. Changing dimensions requires minimal downtime.

Dual Laser Alignment (Option)

Line lasers enable precise positioning of the board along the intended cutting line.
