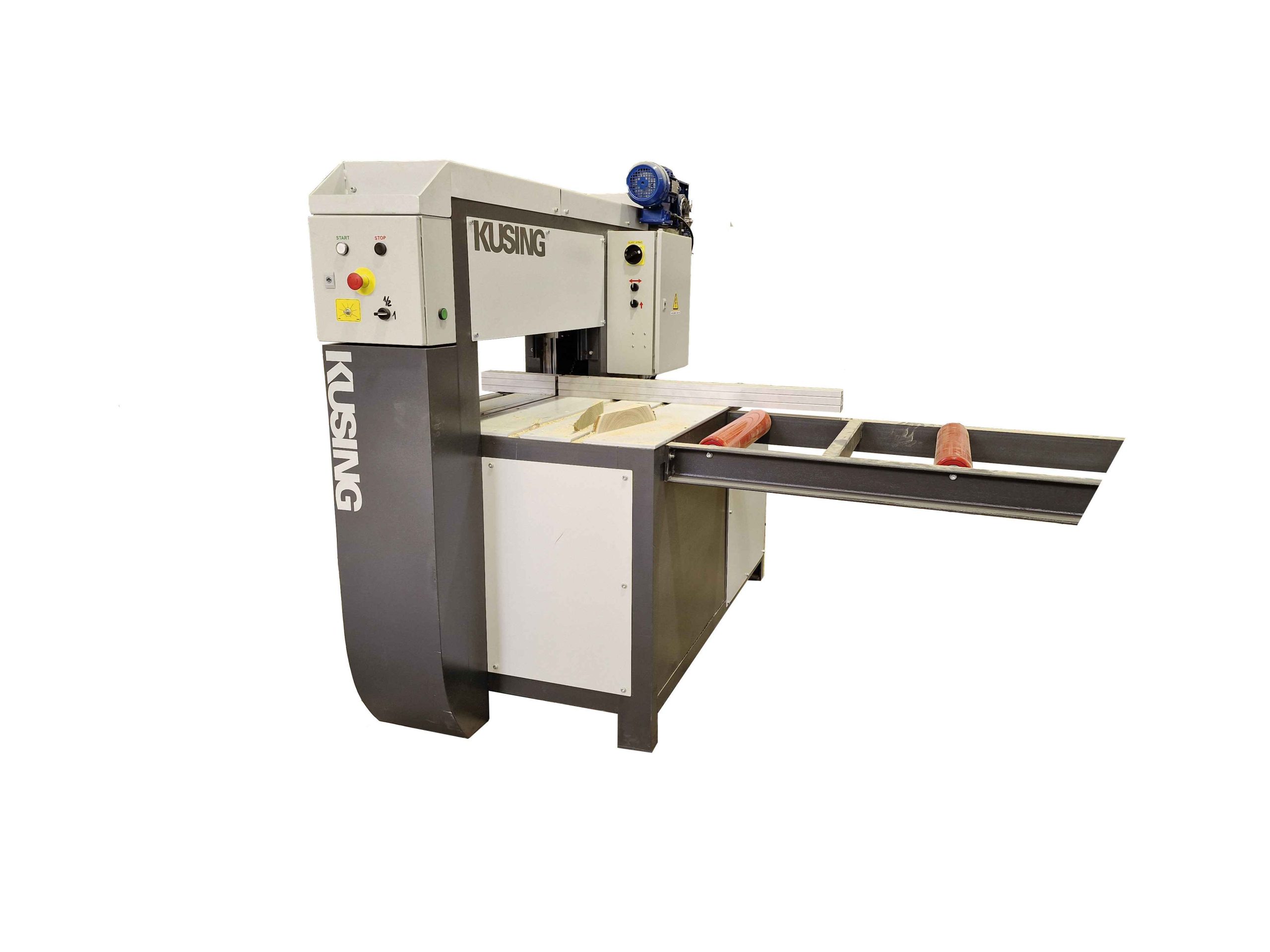

Cross-cut saw SPS-500 LR

Photography

Detail

Parameters

  • Saw blade diameter: 500 / 600 mm
  • Maximum depth of cut: 150 / 200 mm
  • Maximum length of cut: 700 / 900 / 1200mm
  • Tool speed: 3200 rpm
  • Main motor power output: 7.5 / 11 / 15 kW
  • Machine weight : 1100 kg

Description

The SPS-500LR cross-cut saw for long cuts features a highly rigid and robust machine construction designed to handle demanding heavy-duty operations. It is engineered for cross-cutting both softwood and hardwood species.

The saw blade is mounted on an independent cast-iron spindle, with torque transmitted via a belt drive. This design extends the motor service life and minimizes potential maintenance issues.

The saw unit travel is electrically driven via a chain transmission system, allowing for fast and precise cutting speed adjustments through a frequency inverter. Workpiece clamping is pneumatically actuated.

Accessories

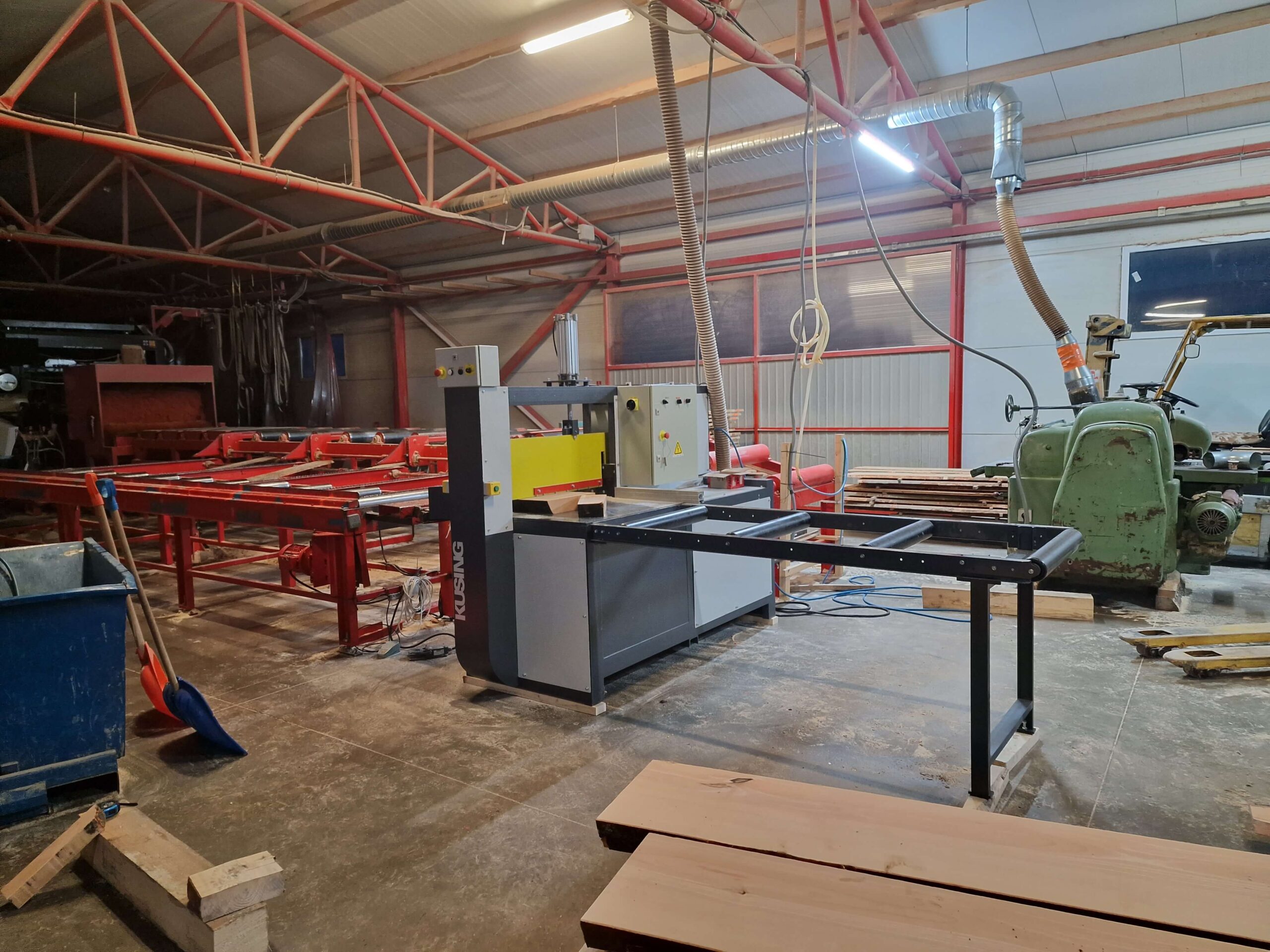

KUSING Cross Cut saw

Roller Conveyors / Runout Tables
Conveyor tracks and tables are supplied custom-built according to specific customer requirements.

Technical Specifications

Main motor power7.5 / 11 / 15 kW
Tool diameter500 / 600 mm
Depth of cut150 / 200 mm
Length of cut700 / 900 / 1200 mm
Feed motor power0.75kW
Spindle speed3200 rpm
Cycle speed4 – 12 s.
Weight1 100 kg

Scope of Delivery

The machine is configured and delivered in accordance with customer specifications.
