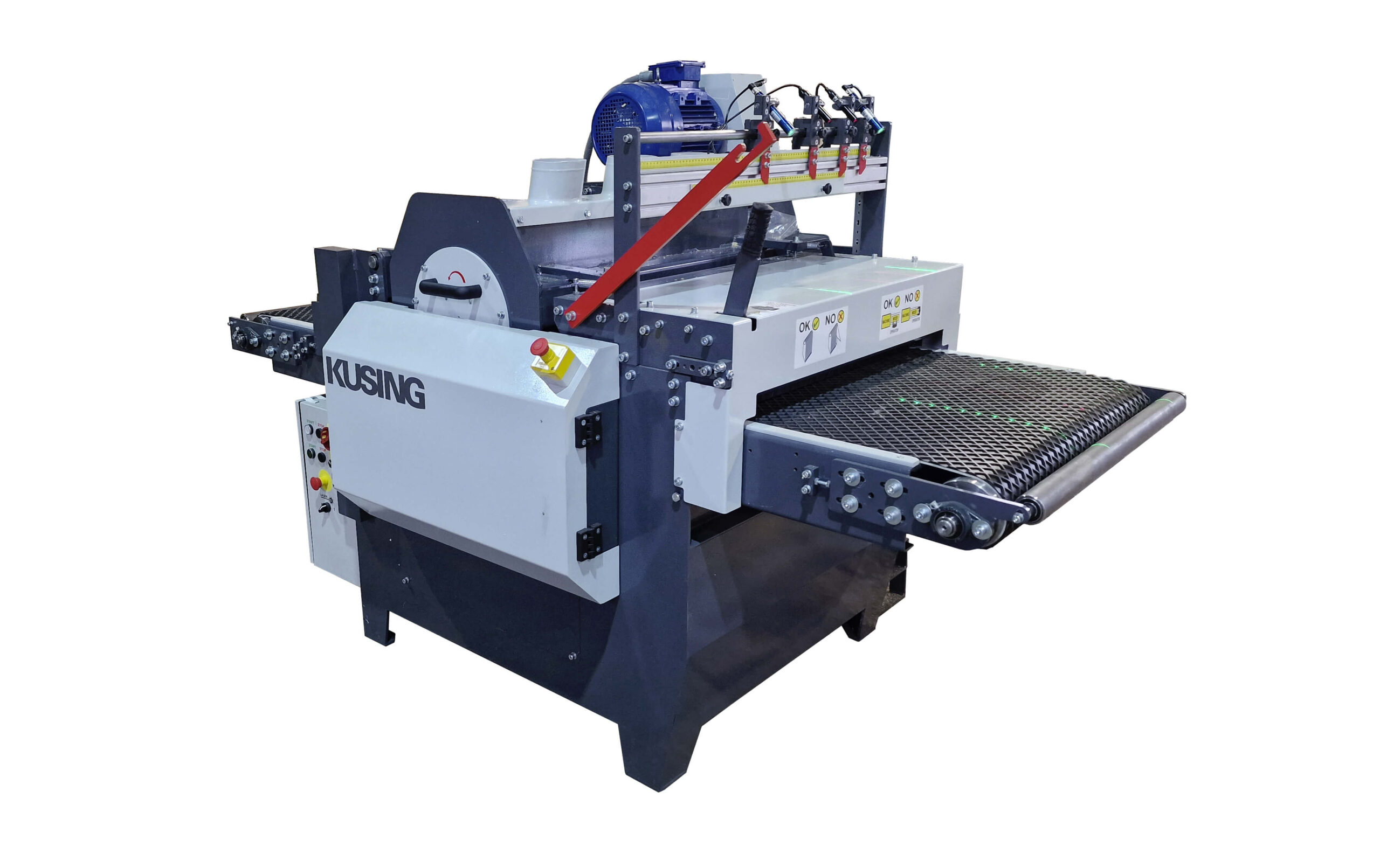

RPP-800
Photography
Detail
Special multi-rip saw with material feed via a rubber conveyor belt.
Parameters
- Belt width: 800 mm
- Spindle length: 800 mm
- Motor power output: 4 – 15 kW
- Depth of cut: 35 mm
- Minimum material length: 150 mm
- Applications: Flooring industry / MDF furniture components
Usage: Veneer cutting, panel materials, plywood cutting
Description
The RPP series conveyor-fed multi-blade rip saw offers a highly efficient solution for sizing panel materials to precise dimensions determined by the spacing of the saw blades. The integrated feed belt system guarantees exact and precise longitudinal cuts. This design concept, where the material passes continuously through the machine, delivers enormous time savings when splitting material into narrow, long workpieces compared to conventional methods like panel sizing centers. The saw blade cuts 3 mm into the conveyor feed belt, making the machine ideally suited for high-volume serial production with a fixed cutting plan.
Machine Advantages:
- Absolutely parallel cut
- Guaranteed width tolerance of ±0.2 mm
- Any number of saw blades can be installed
- Rapid adjustment of width dimensions
- Minimum workpiece length of 250 mm
- Suitable for the parquet/flooring industry and processing of MDF and particle board (DTS)
Accessories
Custom Number of Blades
The machine can be equipped with any number of saw blades depending on the application requirements.
3rd Generation RPP Machines
The 3rd generation of RPP series machines introduces breakthrough technological enhancements derived from extensive field experience with previous models.
Quick-Fix Blade Clamping System
Thanks to the Quick-Fix rapid blade clamping system, changing the cutting width configuration is an operation that takes no more than 2 minutes.
Technical Specifications
| Machine dimensions (L × W × H) | 2500 x 1400 x 1300 mm |
| Working height | 35 mm / Optional 65 mm |
| Infeed width | 800 mm |
| Infeed height | 35 mm |
| Spindle diameter | 50 mm |
| Active spindle length | 800 mm |
| Tool dimensions (diameter) | 250 mm |
| Depth of cut | 35 mm |
| Maximum processing dimensions | Width max. 800 mm, height 35 mm |
| Spindle speed | 4000 rpm |
| Conveyor speed | 6 – 30 m/min |
| Main saw motor | 4, 5.5, 7.5, 11, 15 kW |
| Saw motor speed | 2800 rpm |
| Conveyor motor power | 0.75 kW |
| Feeder motor speed | 1400 rpm |
| Weight | 1350kg |
Scope of Delivery
- Inter-blade pressure shoe for processing short workpieces
- Double-row anti-kickback fingers
- Rear guiding riving knives to reduce material tension and prevent curved cuts
- Optional equipment and laser power selection
