- Tool diameter range: From ø 150 mm to ø 300 mm
- Working width: 400 mm
- Material feed: Manual / power feeder
- Applications: Polishing, fine intermediate denibbing/sanding, structuring (removing soft grain), and processing of complex-shaped components

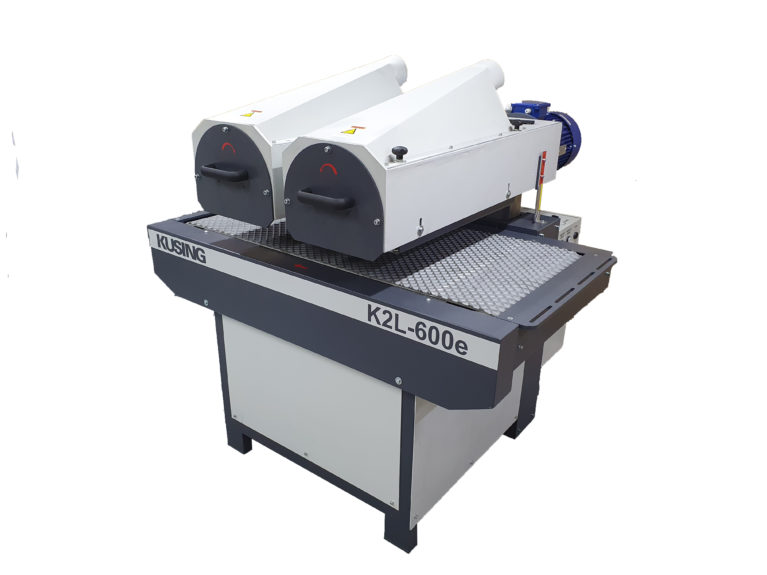

K2L 600e
Photography
Detail
Parameters
- Tool diameter: From ø 150 mm to ø 300 mm
- Maximum workpiece dimensions: 600 mm (1200 mm) × 310 mm with a ø 250 mm tool
- Motorized height adjustment for both tools
- 4× spring-loaded pressure rollers included as standard
- Continuously variable conveyor speed: 2 – 12 m/min
- Continuously variable tool speed adjustment included as standard
- Multi-spindle custom modifications available
Applications: Solid wood, laminated panels, plastics, composite materials
Description
The K2L 600 is a professional high-performance two-spindle structuring and brushing machine equipped with independent height configuration for each spindle. The machine features an open-frame design on one side, allowing the continuous processing of materials up to a width of 1200 mm.
Machine Features
Independent Height Adjustment
Each spindle unit is equipped with independent vertical positioning.
Maximum Workpiece Height 310 mm
By means of the motorized lift system, the spindles can be vertically adjusted up to a maximum passage height of 310 mm.

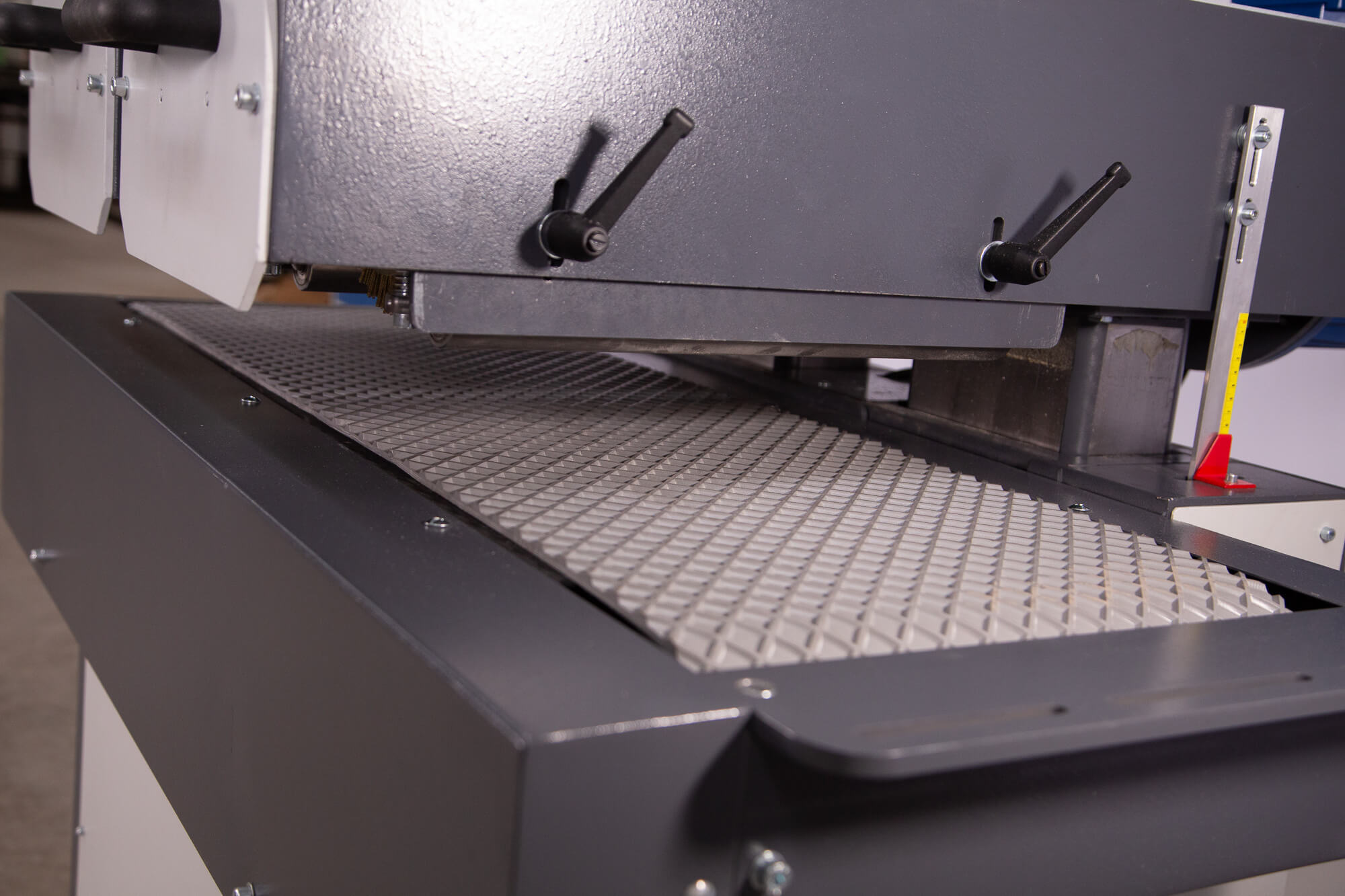

Professional Rubber Feed Belt
Material throughfeed is managed by a premium-grade grey rubber conveyor belt designed for heavy-duty applications.
Heavy-duty Lift Column Design
The K2L series features a rigid lifting mechanism engineered for optimum vibration damping. Utilizing sliding guide ways, the assembly is suited for the most demanding production environments.

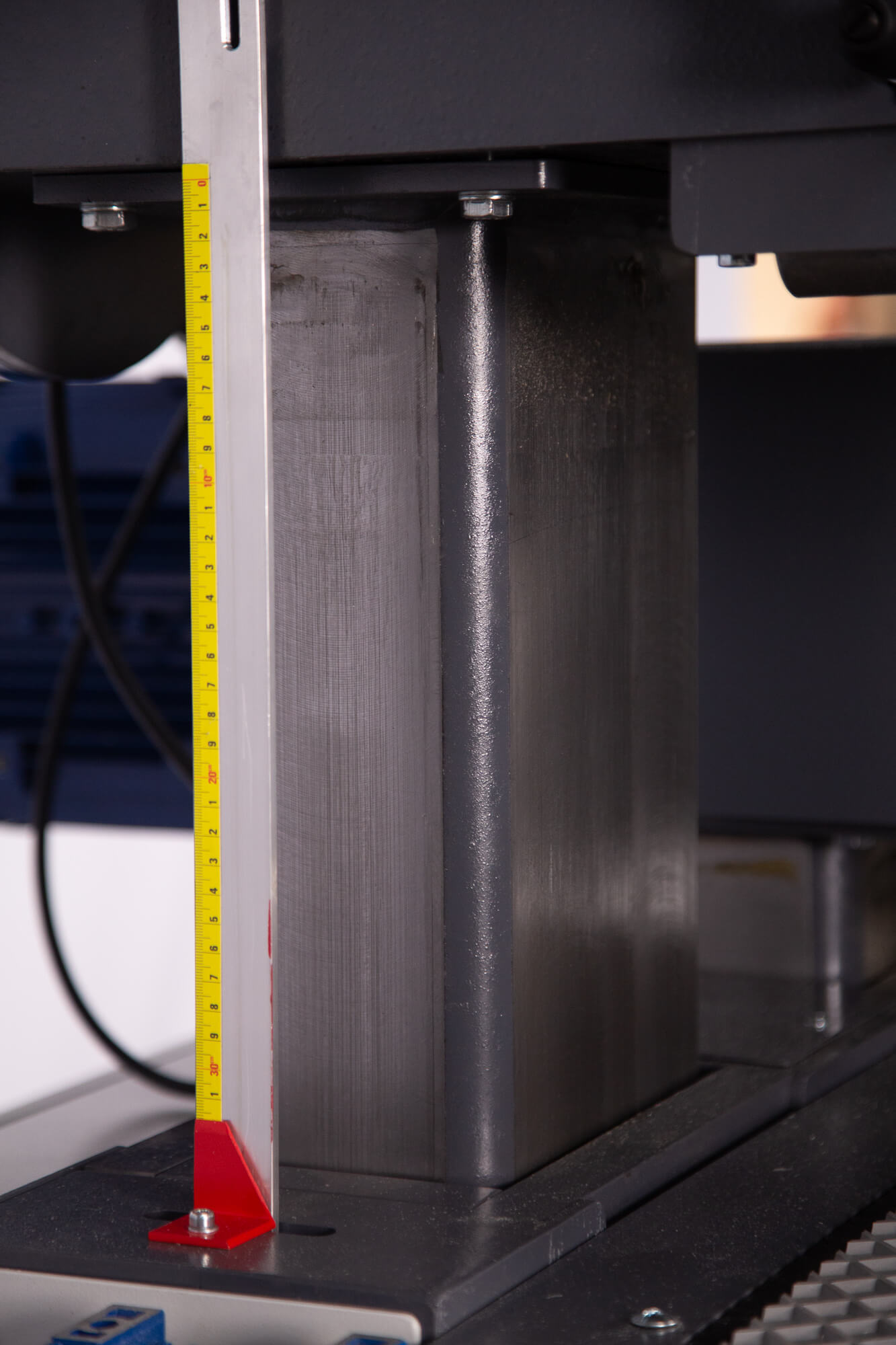

Digital Height Readout
For maximum operational ergonomics and achieving 100% reproducible material texturing, the optional “ALL-DIGITAL” package is available, where every parameter influencing the final surface finish is digitally monitored and controlled.
Technical Specifications
| Feed belt width | 600 mm (optional) |
| Conveyor feed speed | 3 – 12 m/min |
| Spindle diameter | ø 40 mm |
| Spindle length | 600 mm |
| Recommended tool diameter | 250 mm |
| Tool speed | Continuously variable |
| Main motors power output | 2 x 4 kW |
| Conveyor motor power | 0,55 kW |
| Dust extraction outlet | 2 x 120 mm |
| Machine weight | 950 kg |
| Motorized tool lift | Yes |
| Lift motors power output | 2 x 0.37kW |
Scope of Delivery
Options:
2 × 5.5 kW main motors
Frequency inverter for the spindle drives
Gallery
Documents
Video
Are you interested?
Similar products
K1S 400

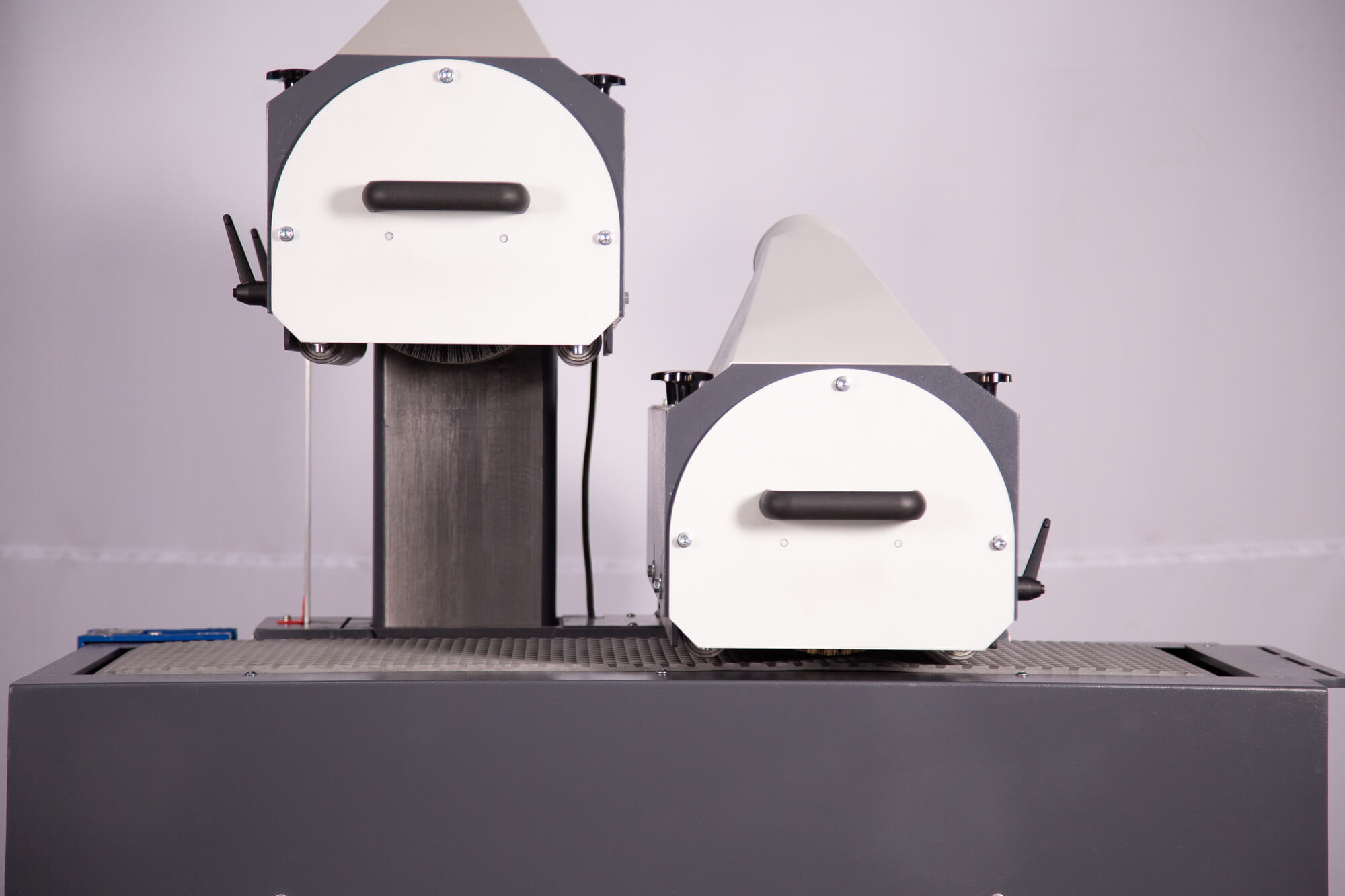

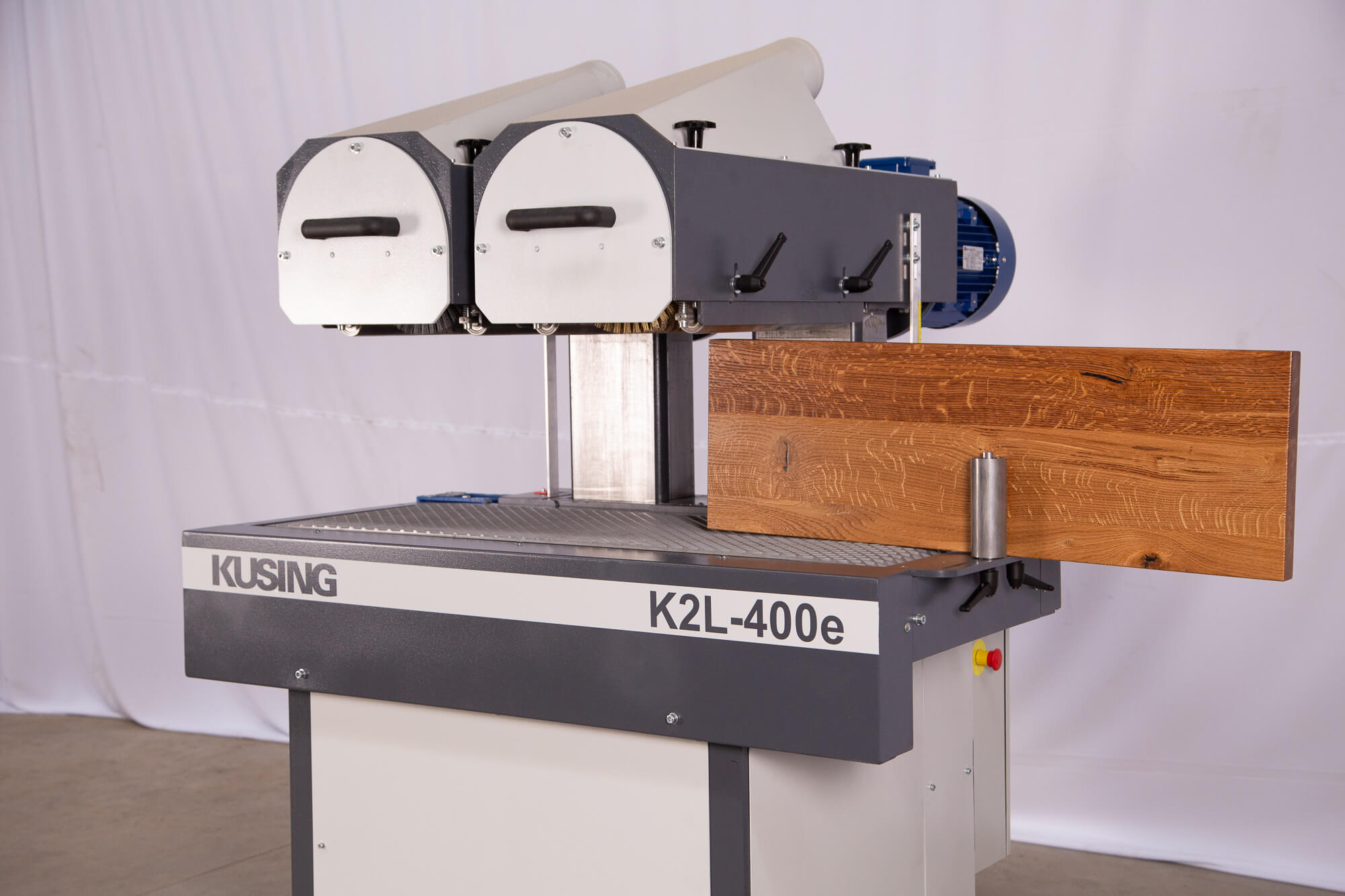

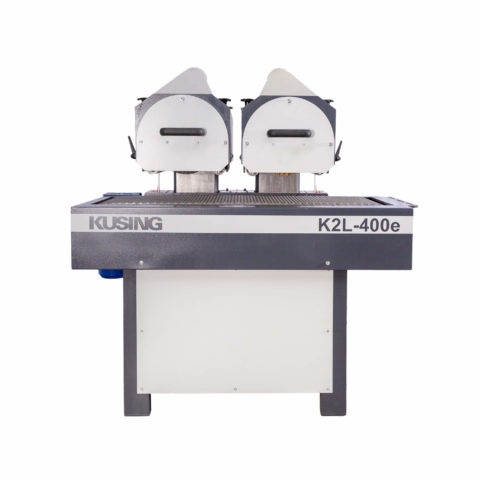

K2L 400e
