RPP-1600

Photography

Detail

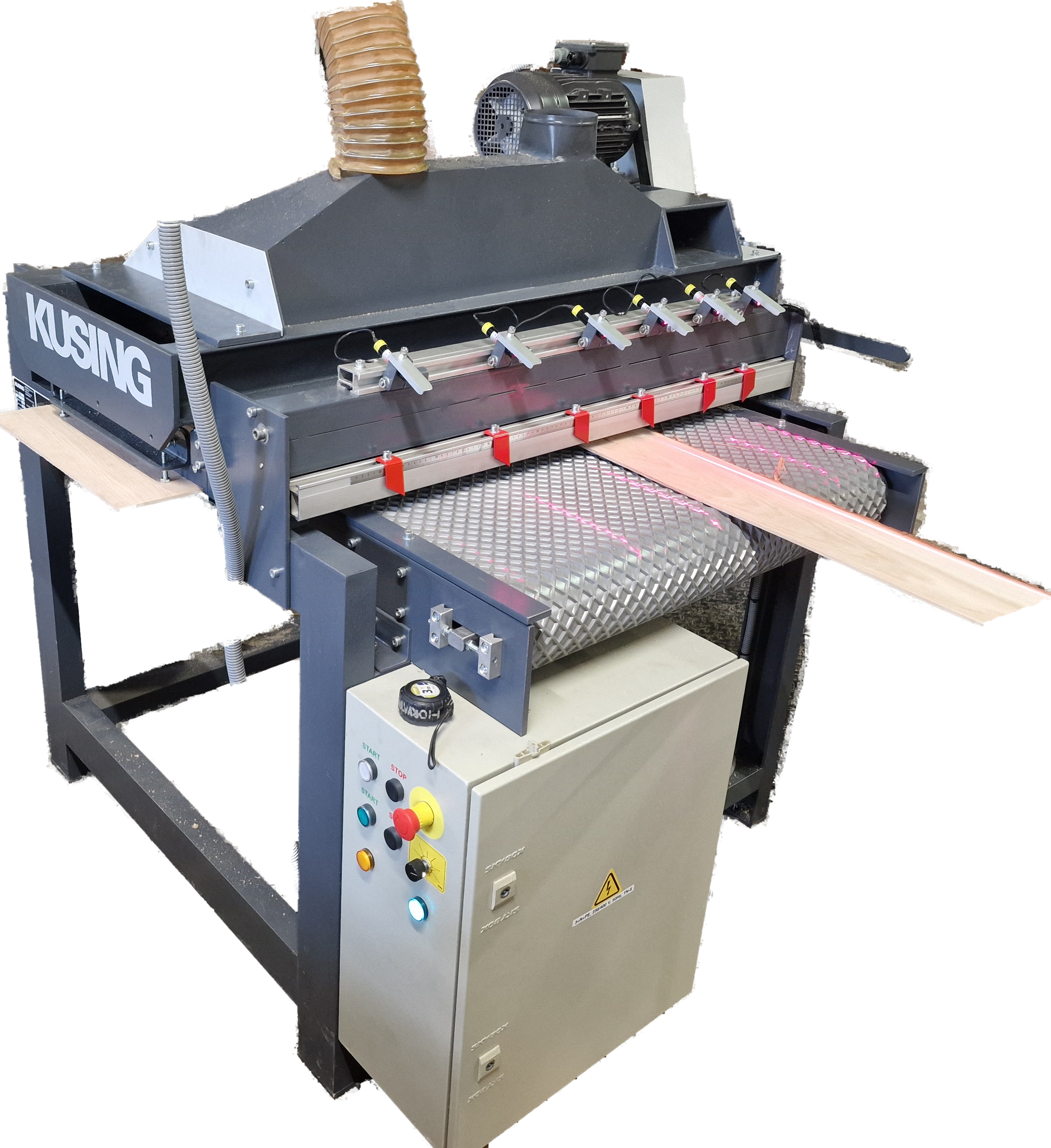

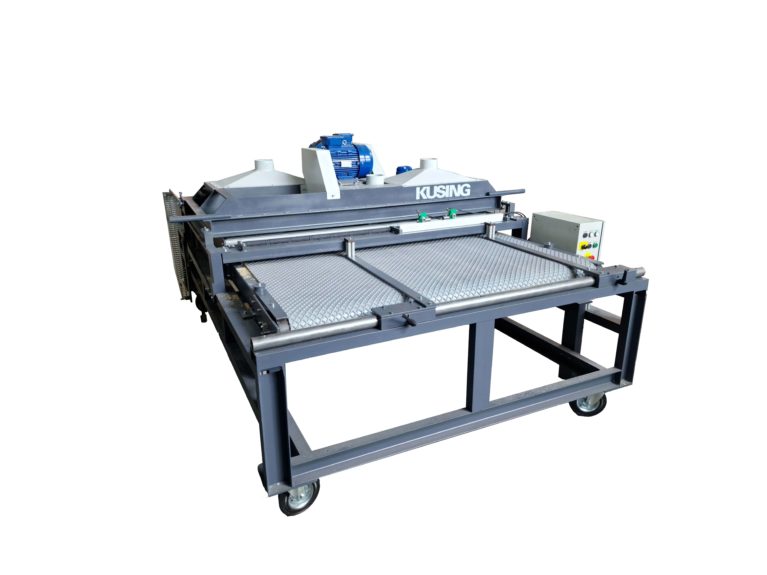

Multi-blade rip saw with belt feed for panel materials

Parameters

Conveyor belt width: 1200 – 1550 mm
Spindle length: 2 × 800 mm
Motor power output: 4 – 11 kW
Maximum depth of cut: 30 mm
Minimum material length: 150 mm
Applications: Flooring industry / MDF furniture components

Description

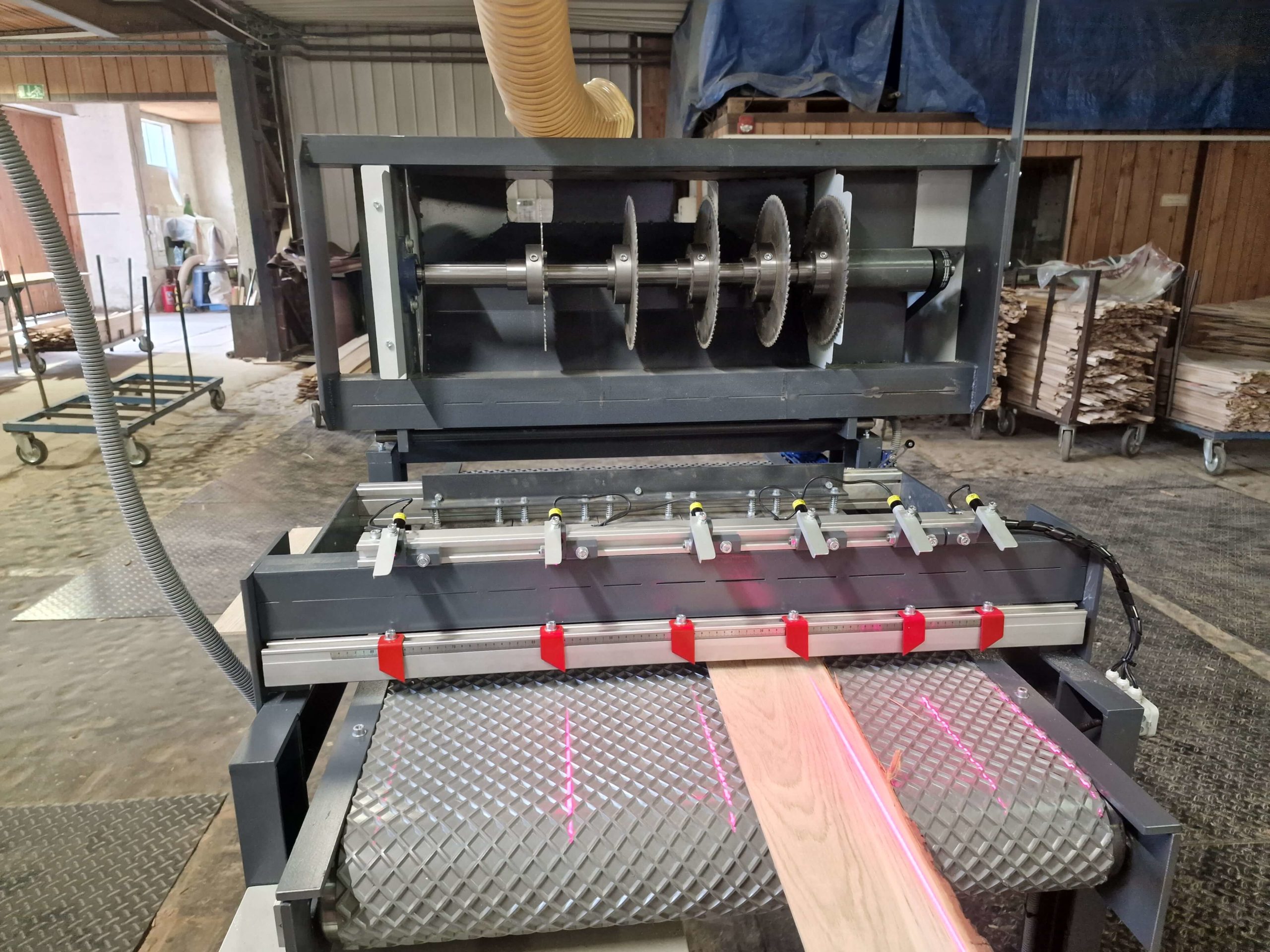

The RPP-type multi-blade conveyor-rip saw provides an engineered solution for splitting sheet materials into precise dimensions defined by the spacing of the saw blades.

The integration of a feed belt system guarantees exact and high-precision longitudinal cuts. This continuous material throughfeed concept delivers massive time savings when cutting sheets into long, narrow workpieces compared to conventional methods such as sizing on a panel management cutting center.

The saw blades score 3 mm deep into the conveyor belt; therefore, this machine is specifically designed for high-volume serial production with a fixed cutting plan.

Machine Advantages

Perfectly parallel cutting results
Guaranteed width tolerance: +-0.2 mm
Variable/unlimited blade configurations
Rapid modification of width dimensions
Minimum workpiece length: 250 mm
Applications in flooring/parquet manufacturing and MDF/chipboard (MFC) processing

Accessories

Custom Blade Configuration
The machine can be equipped with a variable number of saw blades according to requirements.

Technical Specifications

Feed belt width	1550 mm / 1200 mm
Spindle length	2 x 800 mm / 2 x 600 mm
Main motor power output	2 x ( 4 / 5.5 / 7.5kW )
Feed motor power	0.75 kW
Feed speed range	2 – 12 m/min alebo 5 – 18 m/min
Maximum material height	30 mm
Minimum material width	10 mm
Tool speed	4000 rpm
Saw blade diameter	300 mm
Speed	4000 rpm

Scope of Delivery

The machine is supplied according to individual specifications.
