SFnc3
Photography
Detail
Parameters
- Maximum spindle stroke: 170 mm
- Spindle diameter: 30 mm
- Tenoning table dimensions: 900 × 310 mm
- Maximum tool diameter: ø 320 mm
- Spindle speeds: 3000 / 5000 / 8000 rpm
- Spindle tilting range: 0° – 45°
- Motor power output: 3 – 4 kW
- Machine weight: 550 kg
Applications: Solid wood, laminated panels, plastics, composite materials
Description

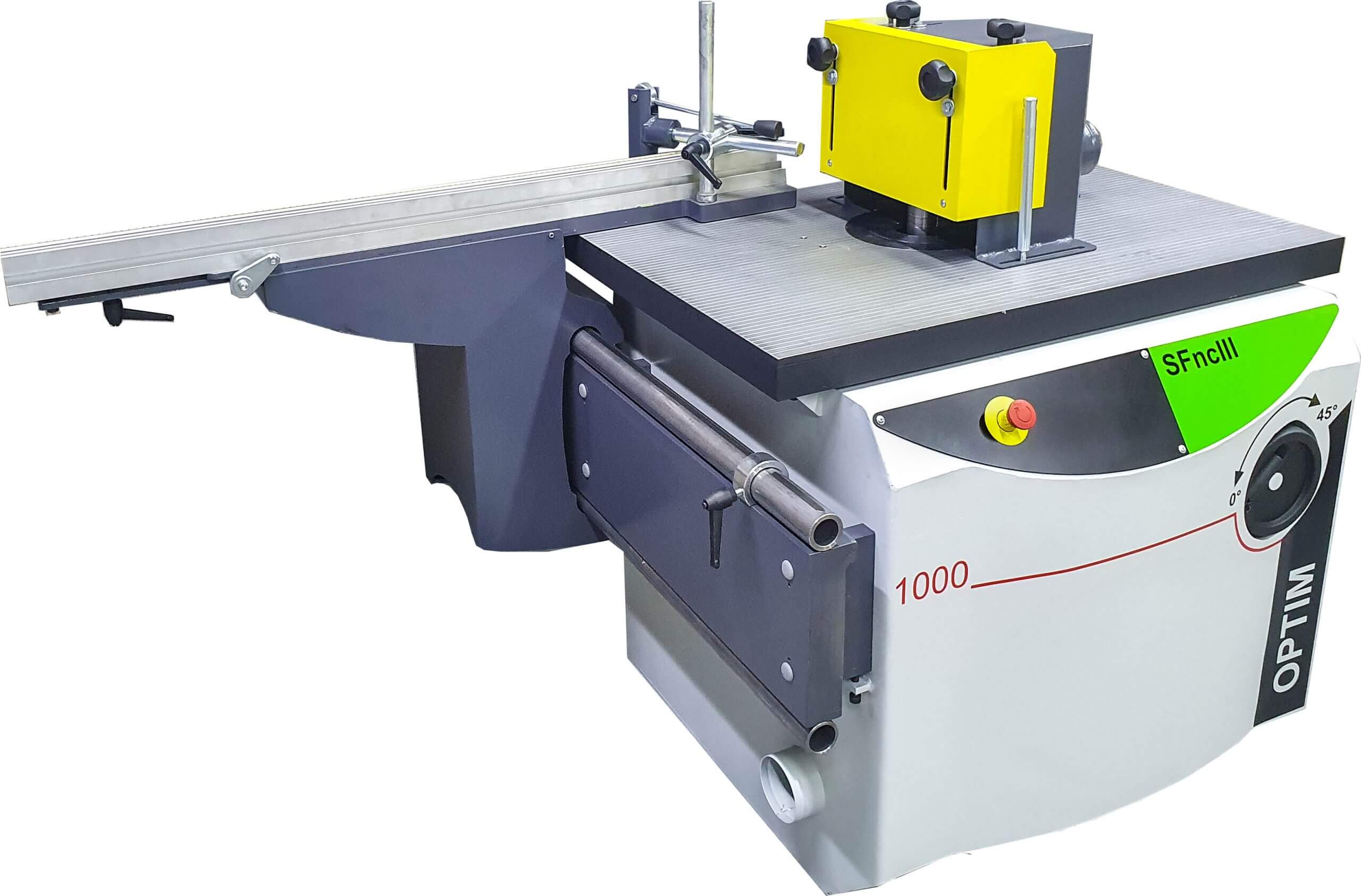

The SFnc3 spindle moulder offers all the essential features a professional shaper should include. The machine is equipped with an integrated tenoning table. This long and heavy-duty tenoning carriage serves as an excellent auxiliary tool for daily machining workflows. With a wide array of accessories, the machine configuration can be customized to specific production needs—whether adding extended tables suitable for profiling profiles or integrating a power feeder to enhance operational efficiency.
Accessories

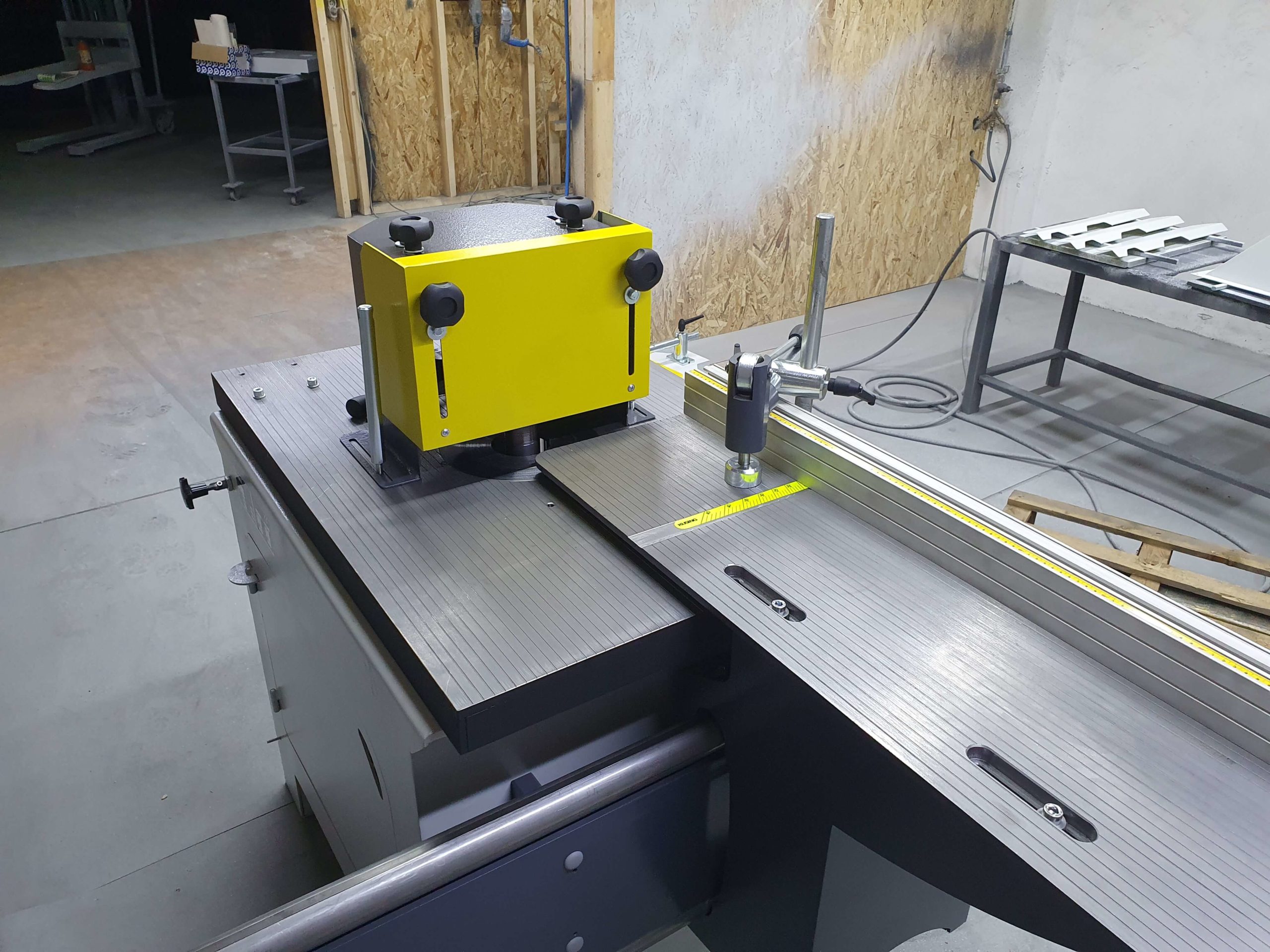

Tenoning Carriage
The robust 900 mm long tenoning table provides comfortable and ergonomic tenoning of long workpieces commonly utilized in the manufacturing of windows, doors, and other furniture components.

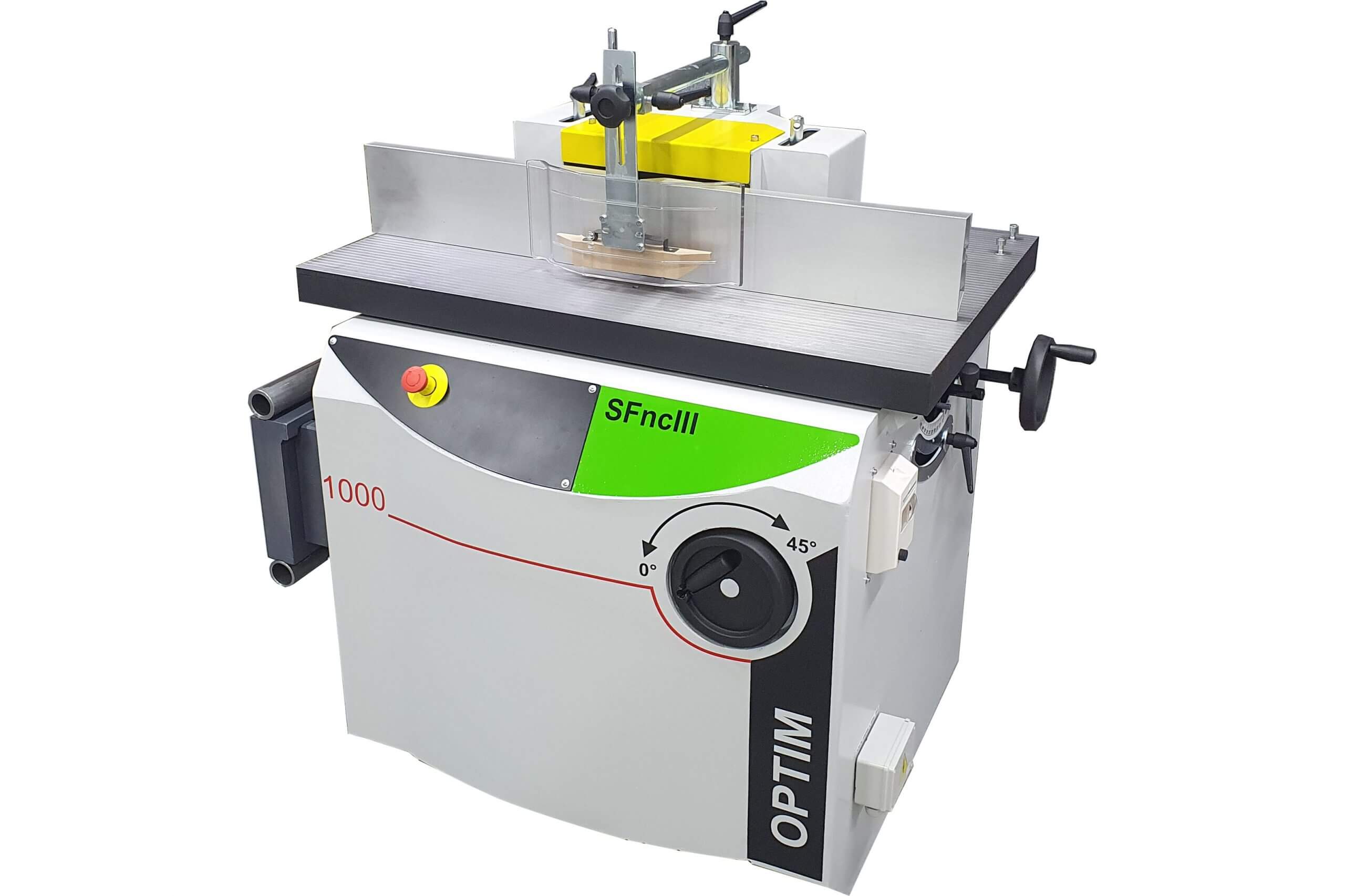

Aluminum Fences
The machine is equipped with calibrated aluminum fence plates.
The front guard/pressure guide is made of transparent polymer, increasing workplace ergonomics and operator safety.
Technical Specifications
| Feed belt width | 600 mm ( optional ) |
| Conveyor feed speed | 3 – 12 m/min |
| Spindle diameter | ø 40 mm |
| Spindle length | 600 mm |
| Recommended tool diameter | 250 mm |
| Tool speed | Continuously variable |
| Main motors power output | 2 x 4 kW |
| Conveyor motor power | 0,55 kW |
| Dust extraction outlet | 2 x 120 mm |
| Machine weight | 850 kg |
| Motorized tool lift | Yes |
| Spindle oscillation | Optional |
