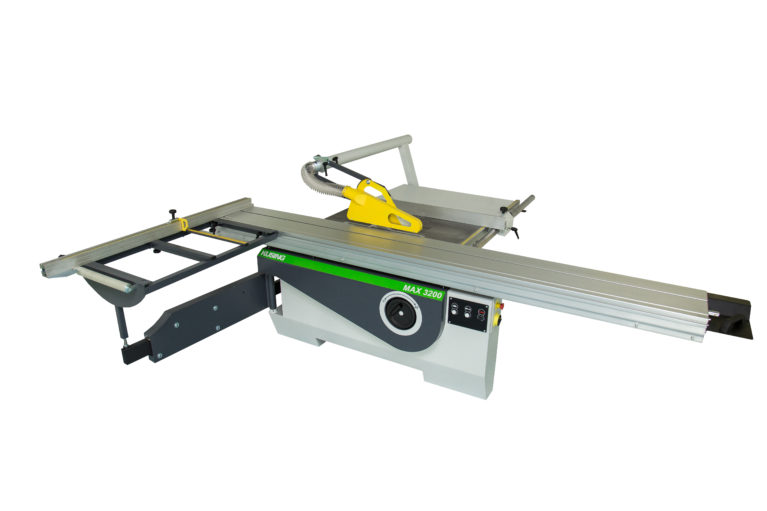

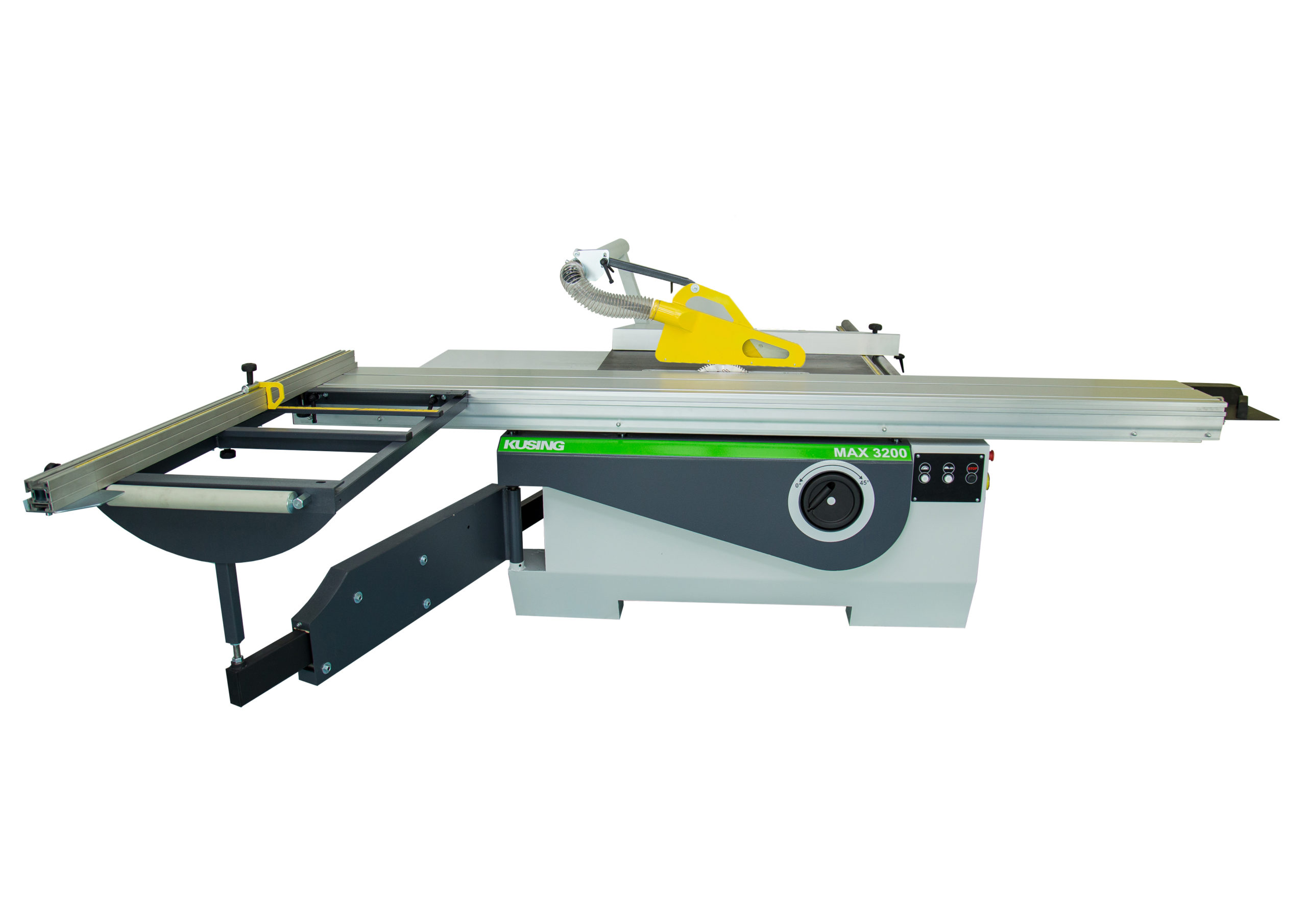

Sliding table panel saw FPNP MAX 3200 - Kusing

Parameters

• Material: Solid wood Plastic Composite Laminate
• Usage: Sawing Cutting

• Sliding table length: From 2000 mm to 3500 mm
• Cast iron table dimensions: 1050 × 600 mm
• Maximum saw blade stroke / elevation: 115 mm
• Maximum saw blade diameter: ø 350 mm to (ø 400 mm)
• Saw blade tilting range: 0° – 45°
• Motor power output options: 3 kW – 4 kW – 5.5 kW
• Main saw blade speed: Optional
• Independent scoring unit motor: 0.55 kW
• Tilt control position: Front-mounted

The FPnp Max professional sliding table panel saw is suitable for demanding customers who prioritize quality and design in their equipment.

Applications: Solid wood, laminated panels, plastics, composite materials

Description

The Max professional sliding table panel saw is characterized by an excellent price-to-quality ratio, timeless design, and a long operational lifespan. The saw features a solid cast iron table and a sawing unit utilizing a sliding tilt mechanism on two semi-circular trunnions, which manages the elevation of the main saw blade. The scoring unit is independently housed within the cast iron assembly and allows for adjustment in both vertical and vertical/horizontal directions, ensuring highly precise alignment of the scoring blade.

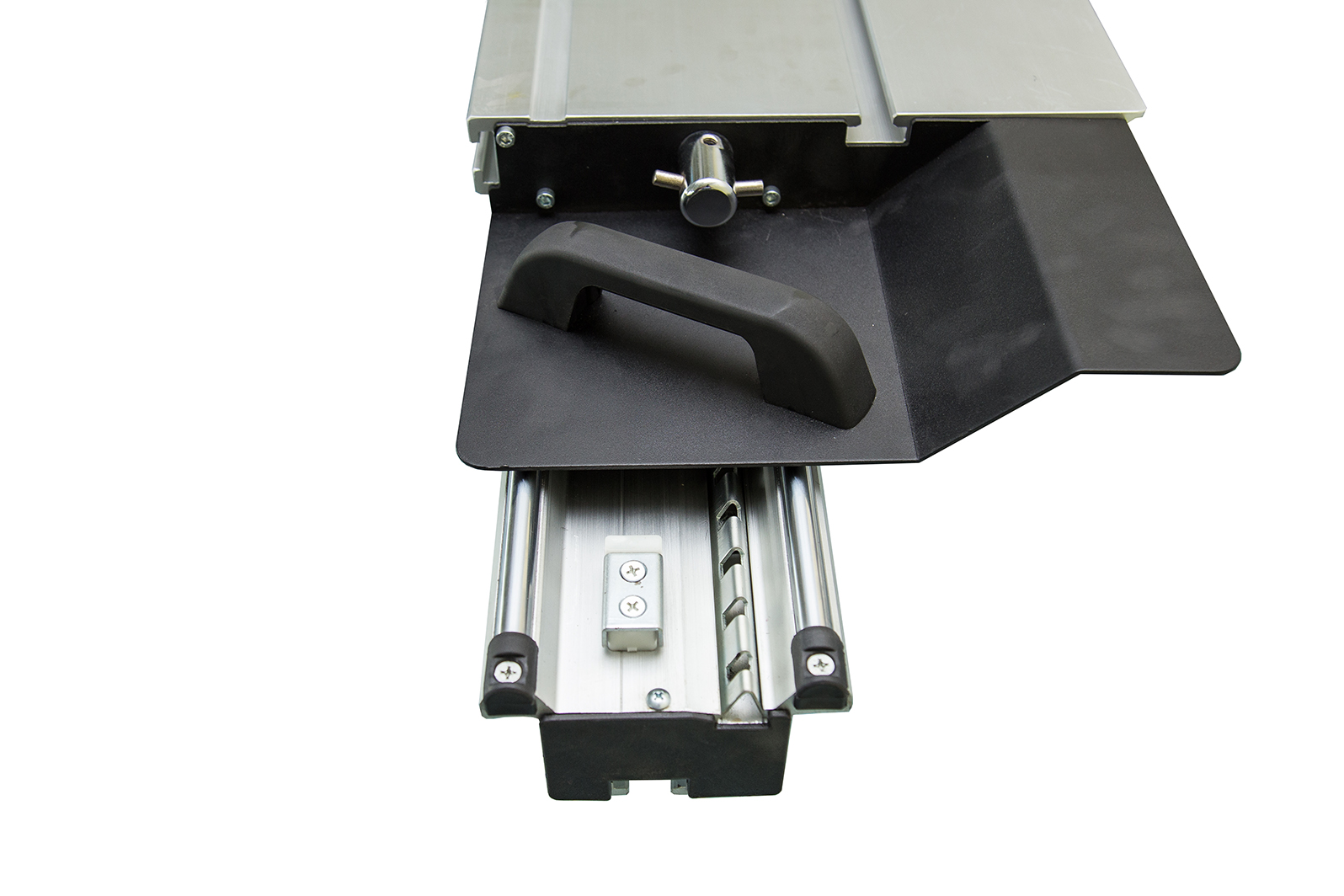

The FPnp Max machine is equipped with a sliding table carriage traveling on hardened steel rods; this carriage is highly precise, very simple to maintain, and guaranteed to meet all your production requirements. The carriage width is 380 mm, while its length is selectable from 2000 mm up to 3500 mm.

Saw blade elevation and tilting are manually operated. The tilt mechanism controls are situated at the front face of the machine for enhanced ergonomics and accessibility during operation.

As a standard feature for this machinery class, the saw is equipped with a motor brake complying fully with CE safety standards. We guarantee comprehensive, long-term technical service provided directly by the manufacturer for all our machines.

Accessories

Technical Specifications

Maximum main saw blade diameter	ø 350 / 30 mm
Main motor power output	3/4/5,5 kW
Main saw blade speed	4000 (3500 – 5000) rpm
Maximum scoring blade diameter	ø 120 / 20 mm
Scoring motor power output	0,55 kW (0,75 HP)
Scoring blade speed	8000 rpm
Maximum depth of cut	155 mm
Sawing unit tilting range	0 – 45 °
Cast iron table dimensions	1170 x 620 mm
Sliding table dimensions	3200×360 mm
Cutting length	3200 mm
Machine weight	700 – 750 kg

Scope of Delivery

• Manual control for height adjustment and tilting of the sawing unit

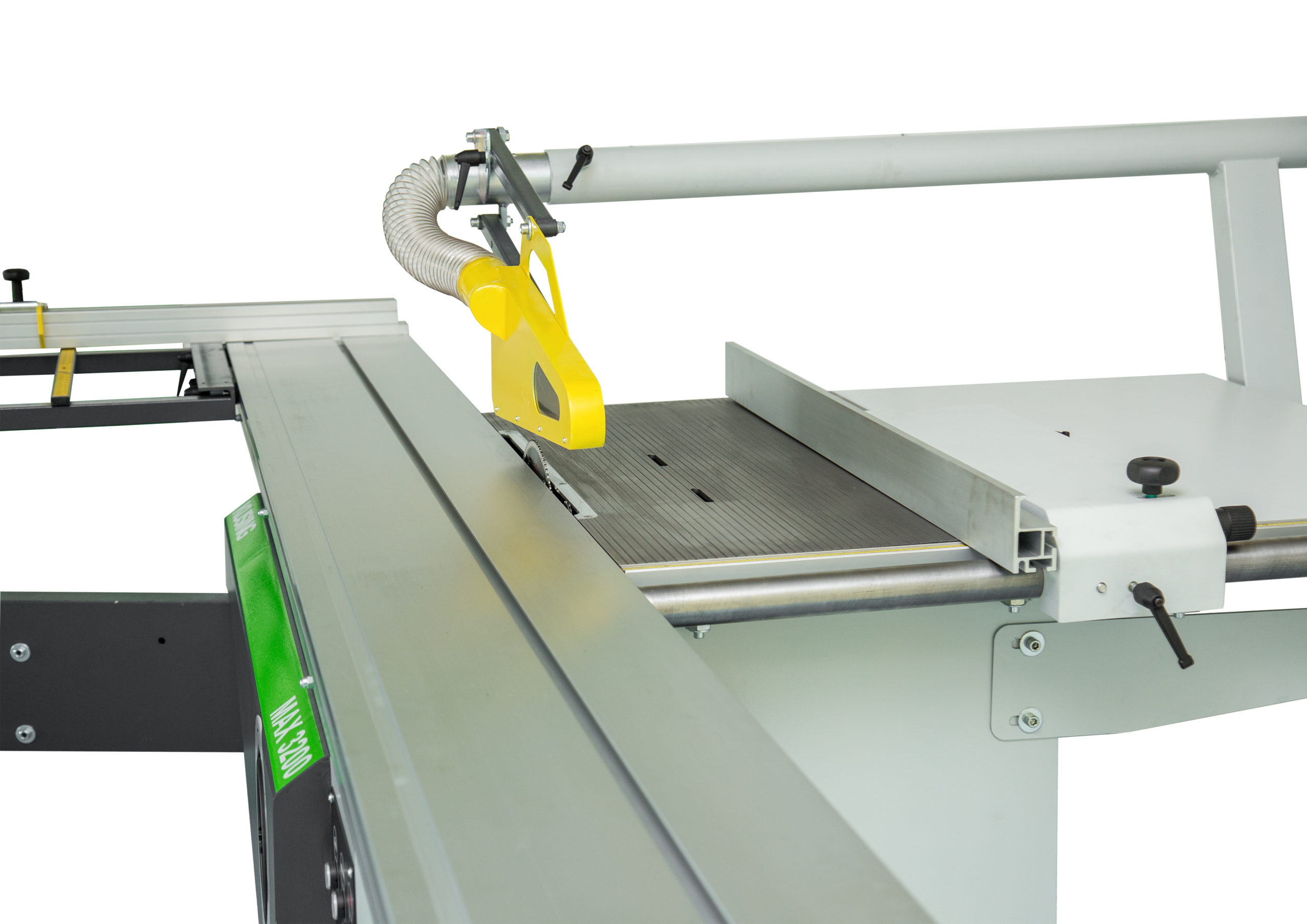

• Rip fence with an aluminum guiding profile, length 1200 mm
• Outrigger table / cross-cut carriage including 2 heavy-duty metal flip stops (D1)
• Integrated safety elements, Emergency STOP switch, and safety limit switches conforming to CE directives
• Table extension and table side extension with dimensions 900 × 400 mm and 800 × 1200 mm
• Riving knife
