Sliding table panel saw FPNP 3200 ATLAS - Kusing

Parameters

• Material: Solid wood Plastic Composite Laminate
• Usage: Sawing Cutting

• Sliding table on hardened steel rods, length: 3200 mm
• Cast iron table dimensions: 1200 × 700 mm
• Maximum saw blade stroke / depth of cut: 155 mm
• Maximum saw blade diameter: ø 450 mm to (ø 550 mm)
• Saw blade tilting range: 0° – 45°
• Motor power output options: 3 kW – 4 kW – 5.5 kW
• Main saw blade speed: Optional
• Independent scoring unit motor: 0.55 kW
• Tilt control position: Front-mounted

Description

Atlas is a professional sliding table panel saw characterized by its distinct design profile, which has defined this model line since 2007. It was awarded the prestigious “National Design Award 2008” for its unique aesthetic and functional styling. The Atlas panel saw represents our flagship, top-tier product line among sliding table saws. This industrial-grade machine is equipped with a heavy-duty cast iron saw unit, the vertical travel of which is guided by robust dovetail ways. This technology guarantees a prolonged service life and absolute reliability under any operating conditions. A heavy cast iron table measuring 1200 × 700 mm ensures stable material handling and superior vibration damping.

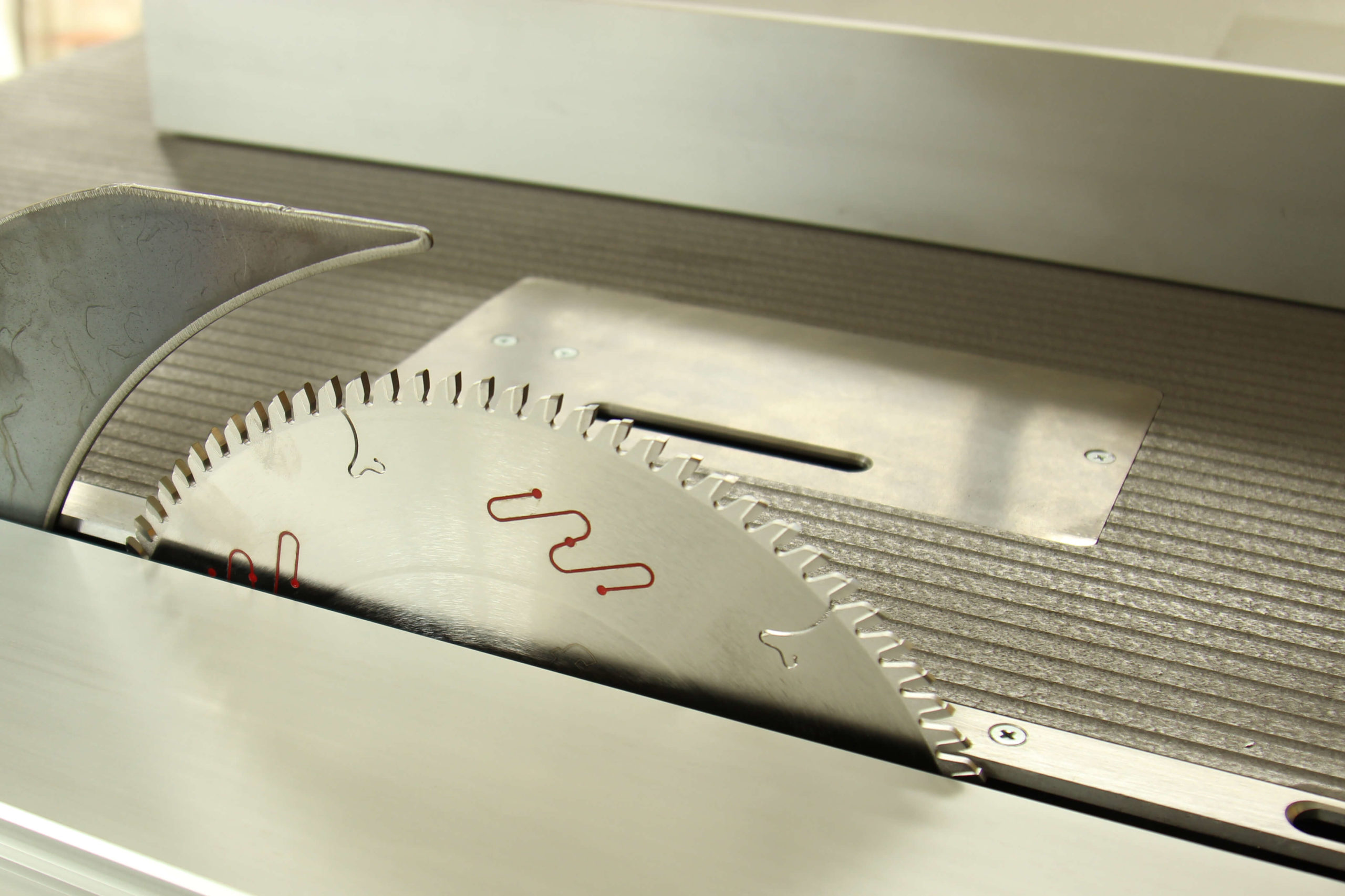

The scoring unit is independently housed within the cast iron assembly and allows for both vertical and horizontal adjustments, ensuring highly precise alignment of the scoring blade.

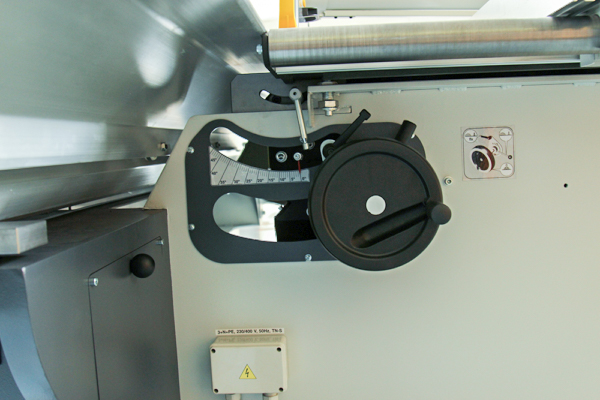

Saw blade elevation and tilting are manually operated. The tilt handwheel is situated at the front face of the machine body for ergonomic accessibility during operation.

The Atlas machine features a heavy-duty sliding carriage traveling on hardened steel rods. This guidance technology is characterized by exceptional durability and long-term positioning accuracy. The carriage width of 410 mm provides an ample, comfortable footprint for maneuvering both small and oversized workpieces. The carriage length can be customized from 2000 mm to 3500 mm, though it is standardly manufactured at 3200 mm.

As a standard feature for this premium machinery class, the saw is equipped with an electronic motor brake complying fully with CE safety standards. We guarantee comprehensive, long-term technical service provided directly by the manufacturer for all our machines.

Accessories

Technical Specifications

Maximum main saw blade diameter	ø 450 / 30 mm
Maximum scoring blade diameter	ø 120 / 20 mm
Scoring motor power output	0,55 kW (0,75 HP)
Scoring blade speed	8000 rpm
Main motor power output	3/4/5,5 kW
Otáčky hlavného pílového kotúča	5000 rpm
Maximum depth of cut	155 mm
Sawing unit tilting range	0 – 45 °
Cast iron table dimensions	1200 x 700 mm
Sliding table dimensions	3200×385 mm
Cutting length	3200 mm
Machine weight	900 – 950 kg

Scope of Delivery

• Manual control for height adjustment and tilting of the sawing unit
• Rip fence with an aluminum guiding profile, length 1200 mm

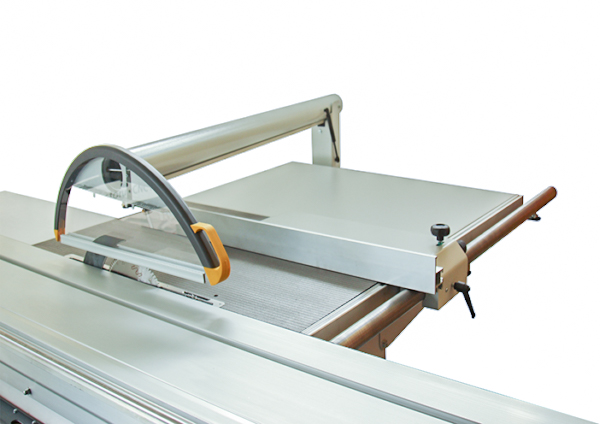

• Outrigger table / cross-cut carriage including 2 heavy-duty metal flip stops (D1)
• Integrated safety elements, Emergency STOP switch, and safety limit switches conforming to CE directives
• Table extension and table side extension with dimensions 900 × 400 mm and 800 × 1200 mm
• Riving knife
