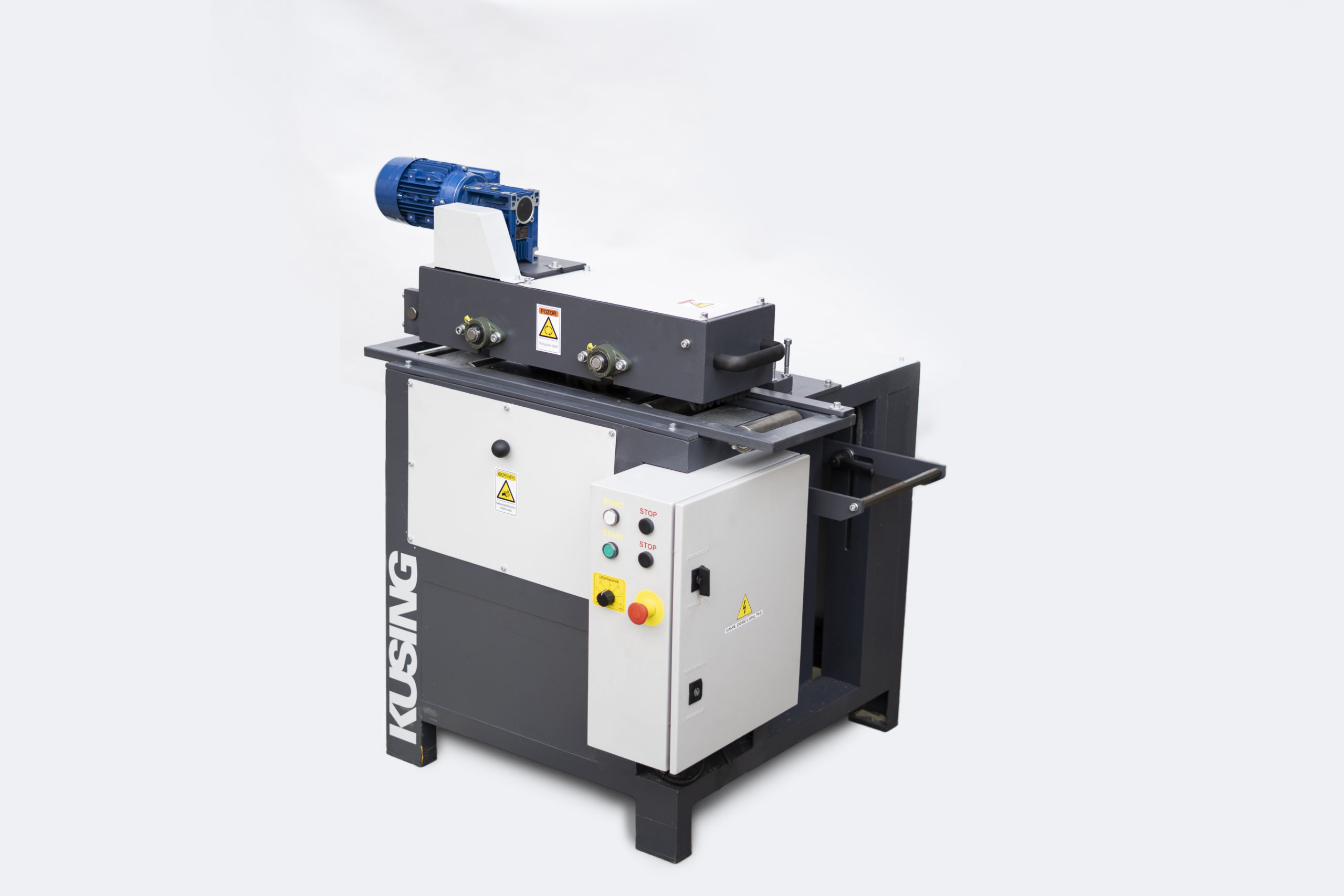

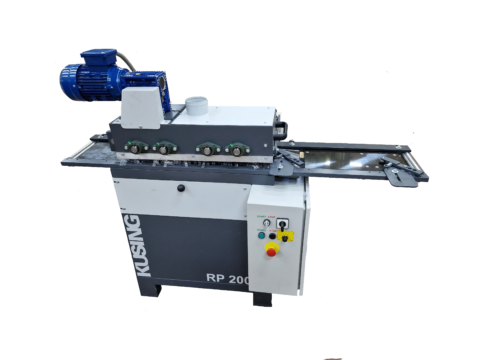

Rip Saw RP 200
Photography
Detail
Parameters
- Tool diameter: ø 220 – 300 mm
- Spindle length: 200 mm
- Open-frame construction
- Manual spindle height adjustment
- Maximum depth of cut: 80 mm
- Motor power output: 5.5 / 7.5 / 11 kW
- Feed speed range: 4 – 18 m/min
Description
The machine is engineered for ripping boards up to a width of 200 mm and a thickness of 50 mm. It is expected that one side of the material is pre-straightened. The spacing between the saw blades is defined by means of spacer rings. Material throughfeed is managed by driven feed rollers, and the feed speed is adjustable.
Accessories

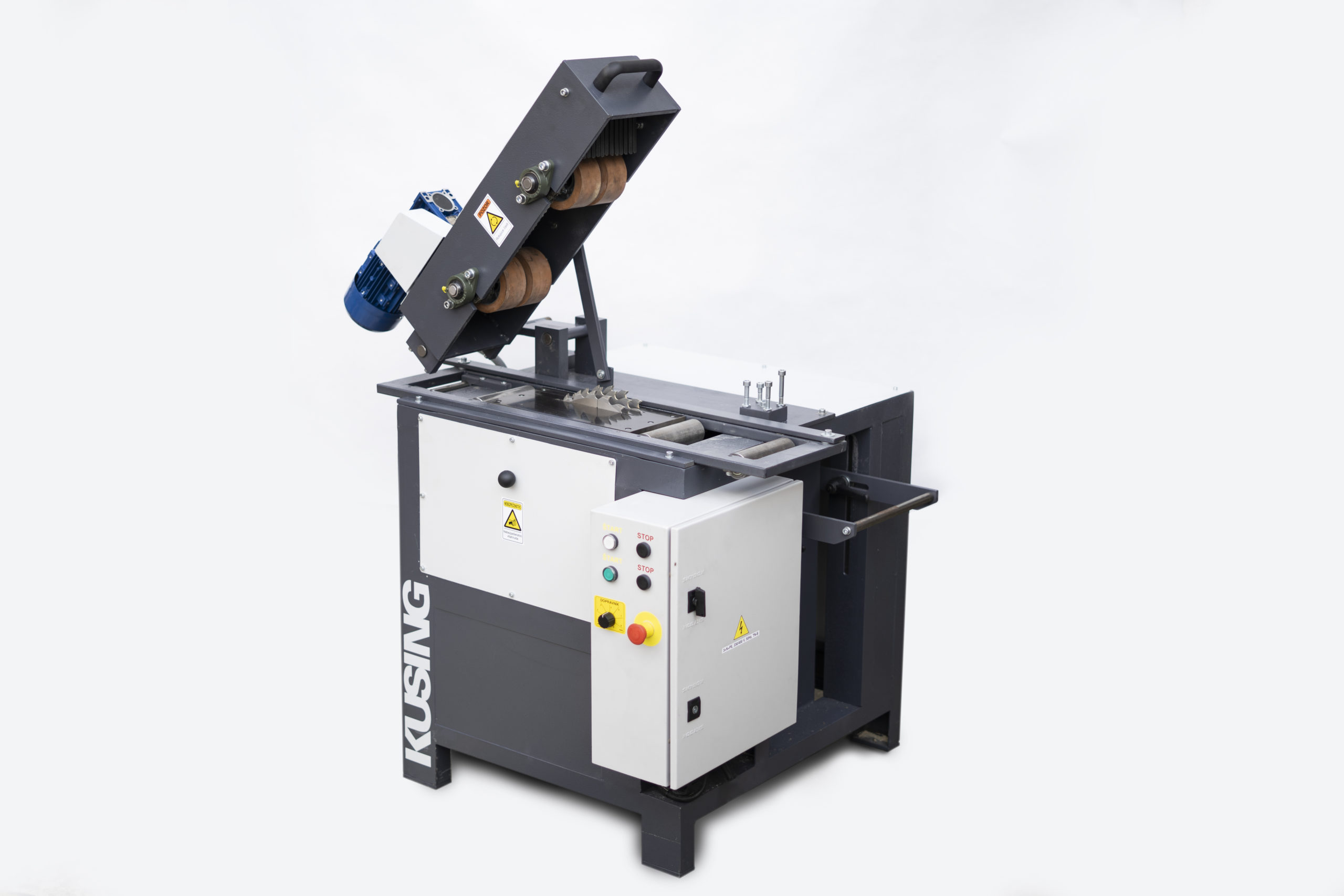

Open-frame Construction
The machine features an open-frame design, which allows the processing of workpieces wider than 200 mm.
Steel Feed Rollers
Fluted steel feed rollers increase traction during the primary processing of timber and raw materials.
Riving Knives Behind the Blade
To achieve maximum cutting precision, the machine can be equipped with riving knives positioned behind the saw blade.
Additional Pressure Unit
Bearing-guided pressure rollers for high-precision machining of planed workpieces.
Minimum Workpiece Length 200 mm
A 4-row upper feeder mechanism is used to enable the processing of workpieces with a minimum length of 200 mm.
Technical Specifications
| Maximum material width | 200 mm |
| Maximum material thickness | 50 mm |
| Spindle diameter | ø 30 mm |
| Saw blade diameter | ø 250 mm |
| Saw blade speed | 4000 rpm |
| Main motor power output | 7,5 kW |
| Feed motor power | 0,55 kW |
| Material feed speed | 2 – 20 m/min |
| Dust extraction outlet | 2 x 120 mm |
| Machine weight | 250 kg |
