K1S 400
Photography
Detail
Parameters
- Tool diameter range: From ø 150 mm to ø 300 mm
- Working width: 400 mm
- Material feed: Manual / power feeder
- Applications: Polishing, fine intermediate denibbing/sanding, structuring (removing soft grain), and processing of complex-shaped components
Description

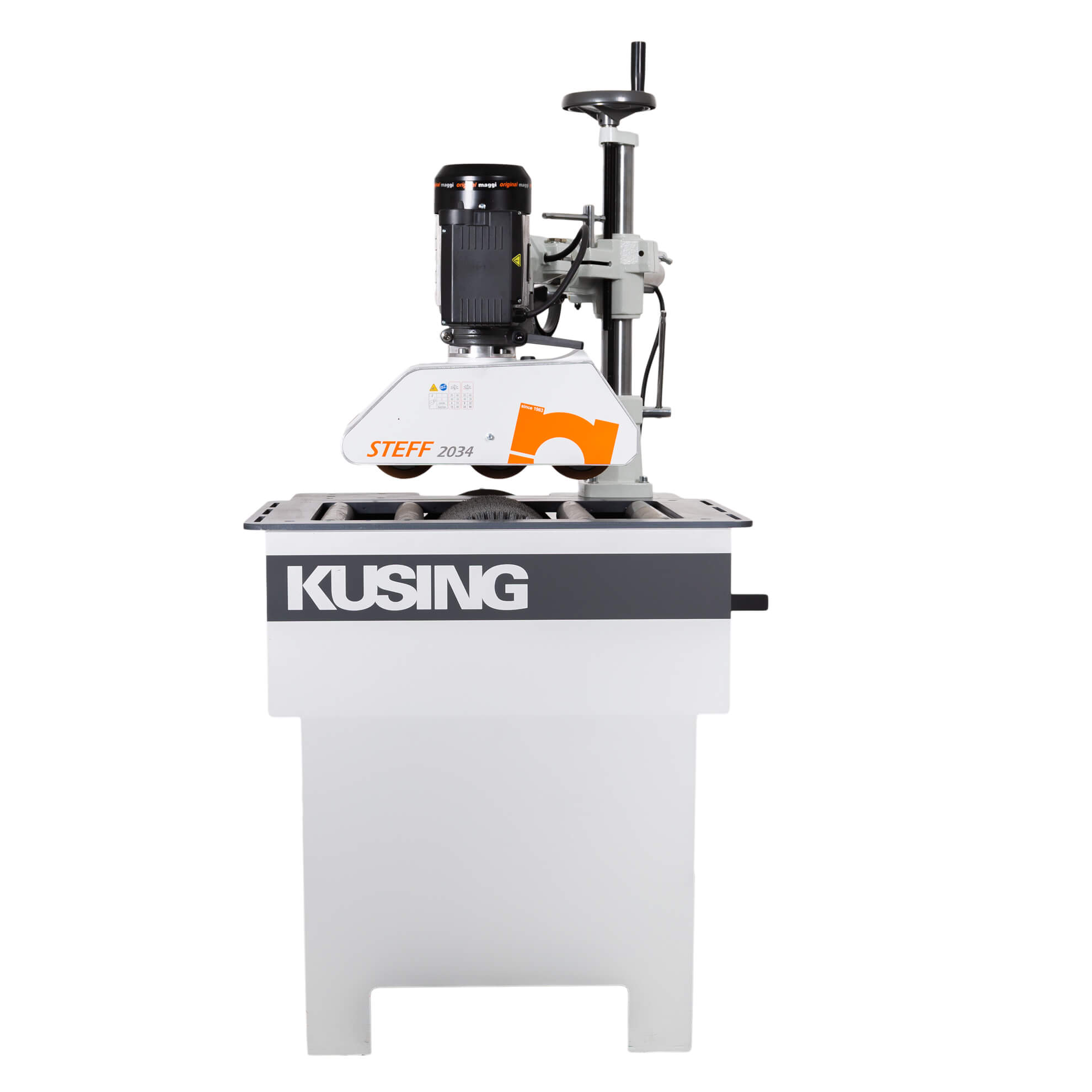

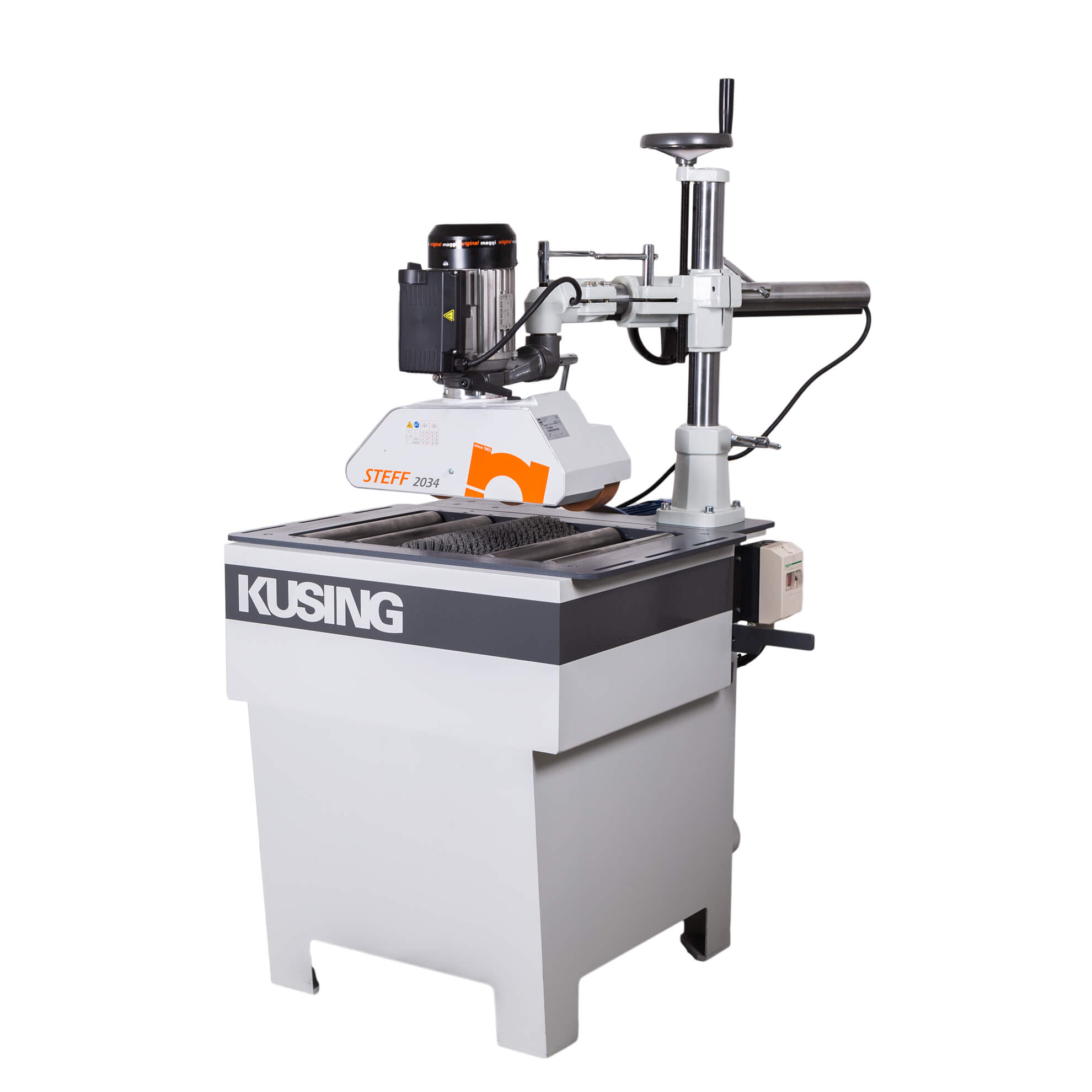

The K1S-400 brushing machine is an ideal solution for workshops and production facilities looking for a compact and straightforward machine to cover their product brushing or sanding needs. The machine features a single spindle positioned below the working table level with manual material removal adjustment. It represents a suitable solution for all types of sanding or brushing applications and is particularly well-suited for processing softwood.
Technical Specifications
| Machine dimensions (L × W × H) | 1000 x 1020 x 840 mm |
| Working height | 400 mm ( 800 mm ) |
| Tool diameter | 250 mm ( 150 – 300 mm ) |
| Spindle diameter | 40 mm |
| Tool speed | 900 rpm ( 1400 rpm ) |
| Spindle motor power output | 3 kW |
| Material feed | Manual / power feeder |
| Weight | 250 kg |
