Rip saw RS-ES-800 INDUSTRY - Kusing

Parameters

• Motor power output: 22 / 30 / 37 / 55 kW
• Feed speed range: 8 – 60 m/min
• Option: 2× electrically adjustable saw blades
• Depth of cut: 120 / 165 mm

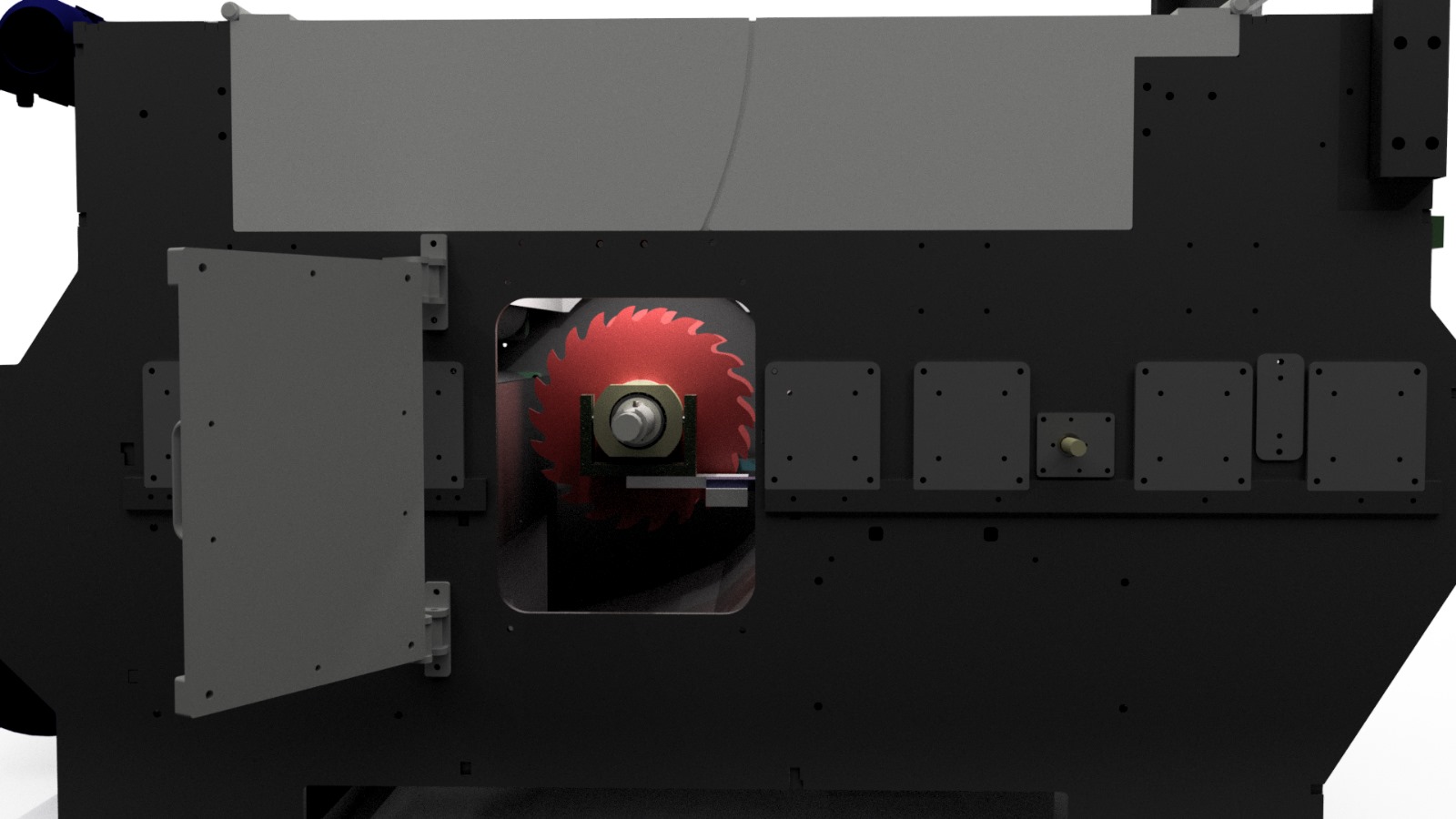

• Saw blade diameter: 400 mm / 500 mm
• Feed system: Driven by 9× steel rollers
• Machine weight: 3300 kg

Description

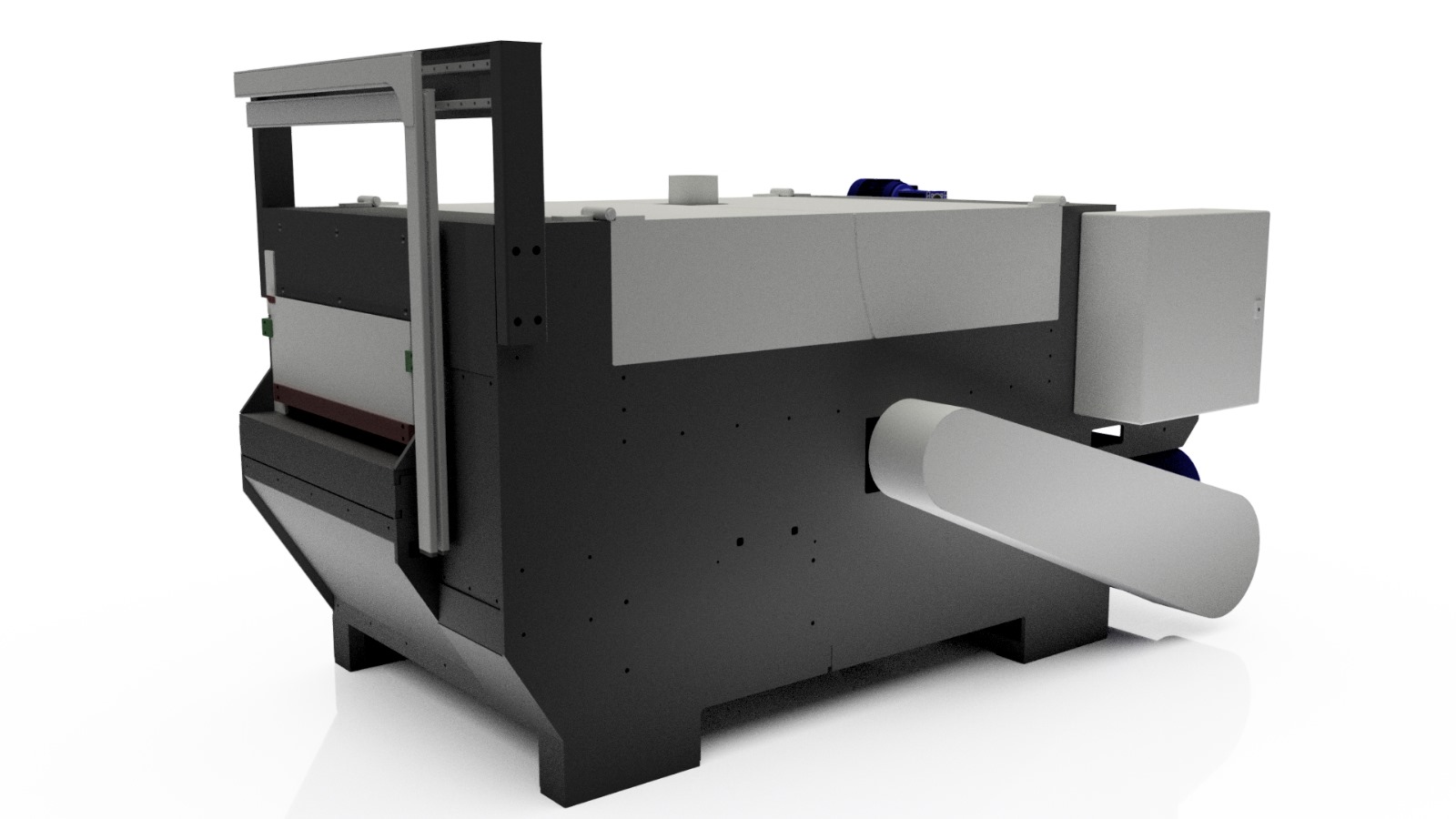

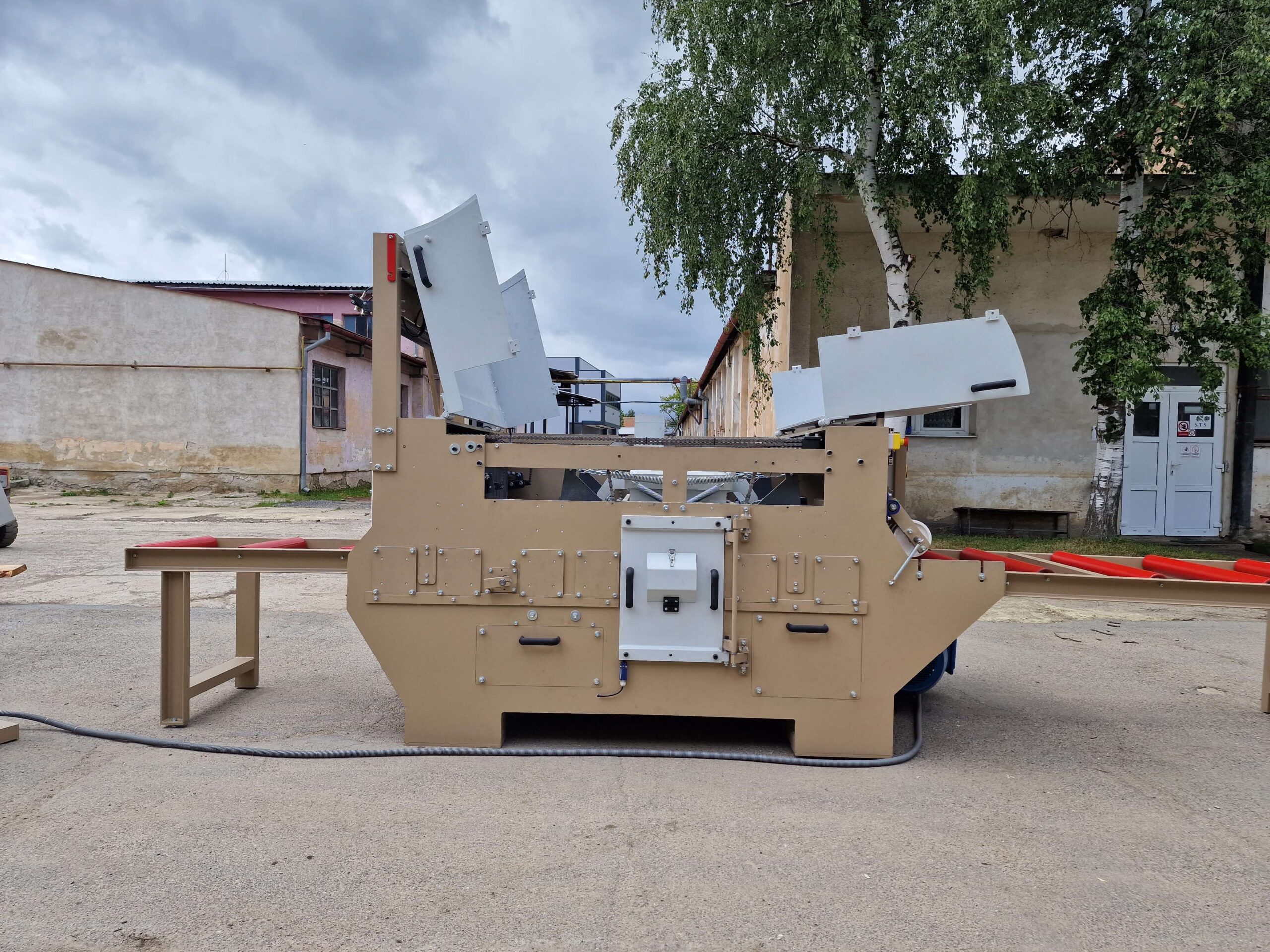

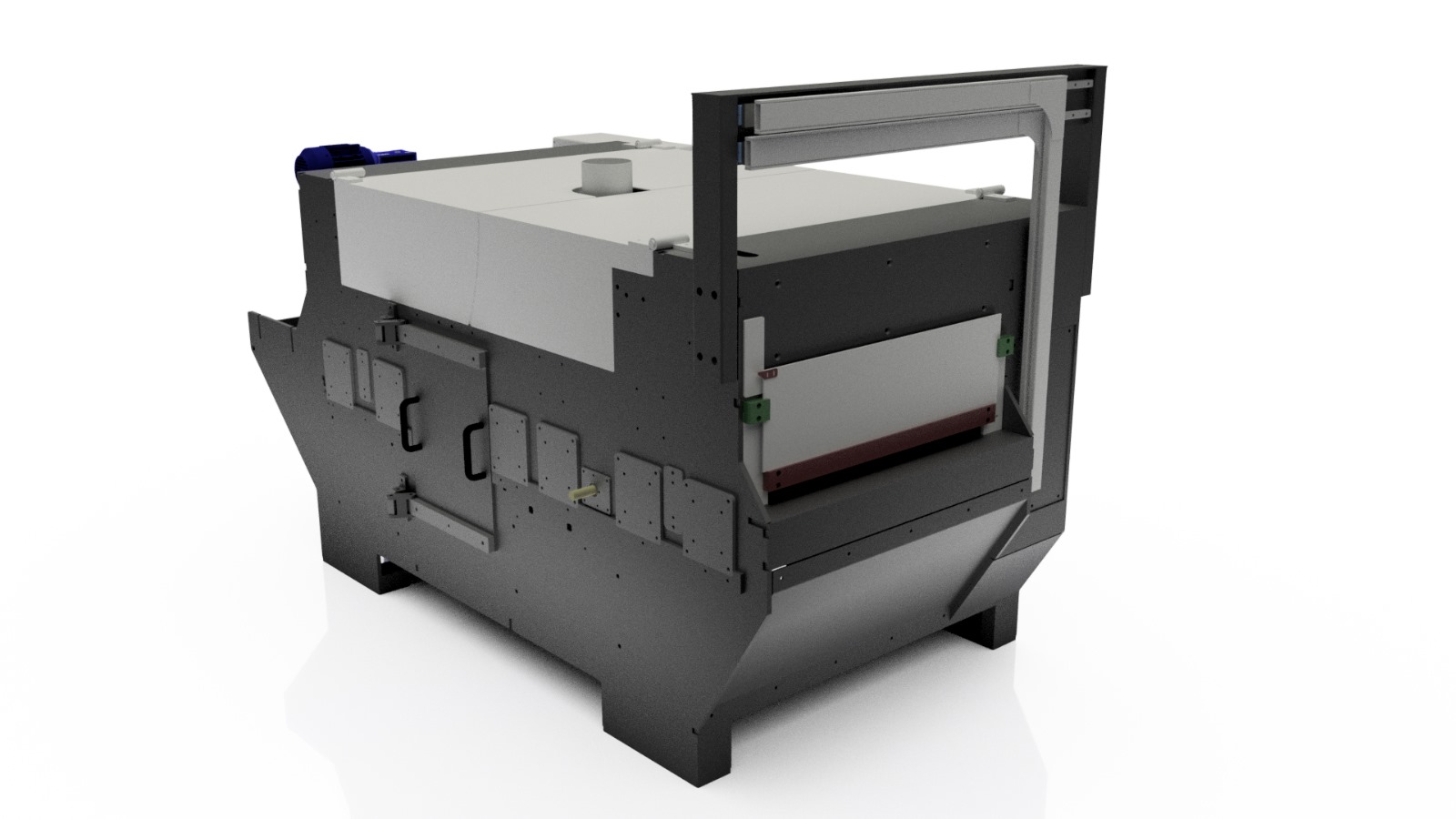

The KUSING RS-ES-750 industrial multi-blade rip and edging saw provides a heavy-duty production solution for longitudinal material cutting. The machine is engineered for high-volume processing facilities. Featuring independent positioning of two saw blades alongside the capability to mount multiple fixed blades, this system is highly suited for processing hardwood lumber of various dimensions.

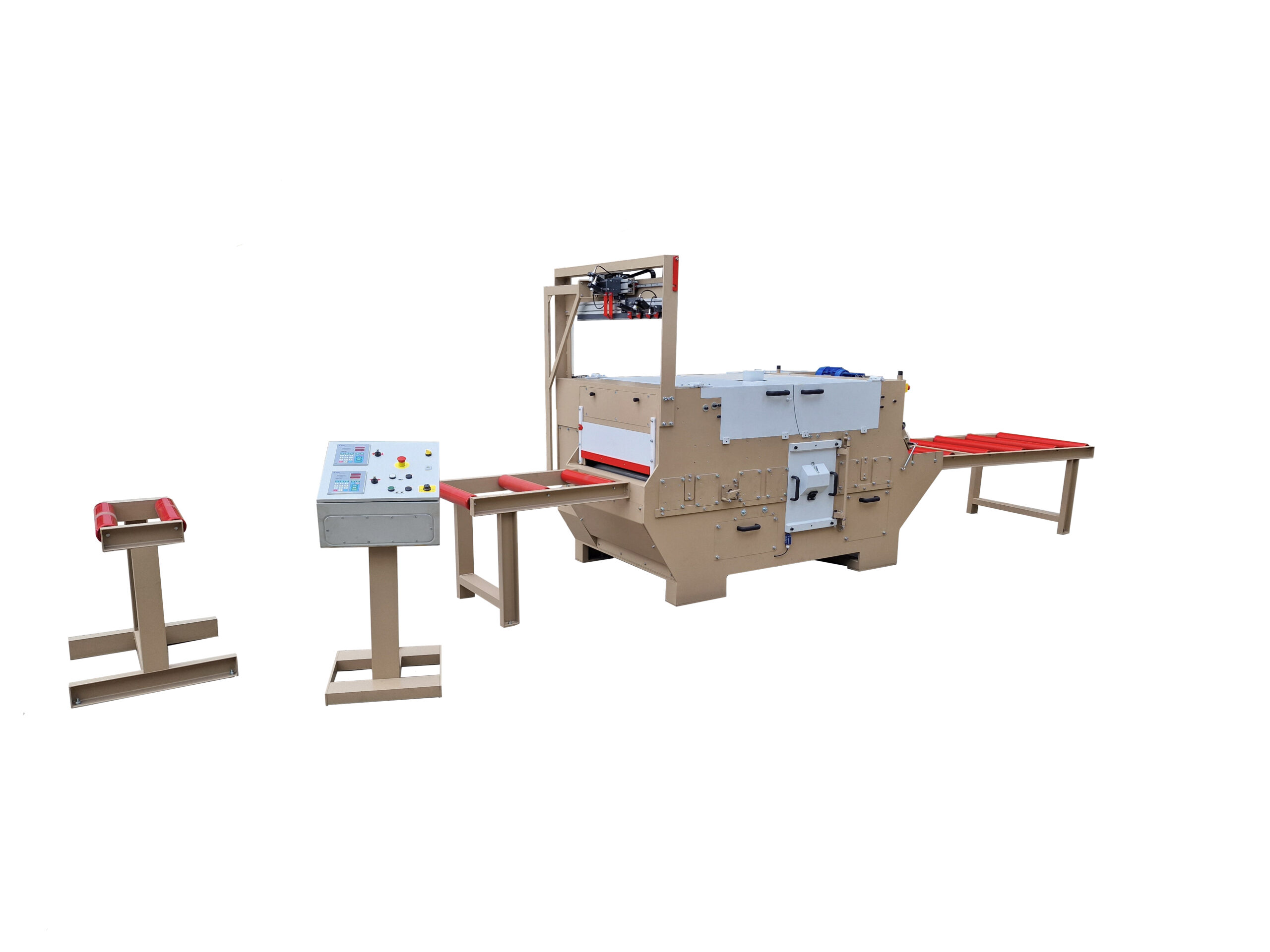

The machine offers a modular platform with a wide range of modifications and optional accessories to ensure seamless integration into production lines. Available accessories comprise:

• Infeed roller conveyor
• Outfeed roller conveyor
• Powered roller conveyors

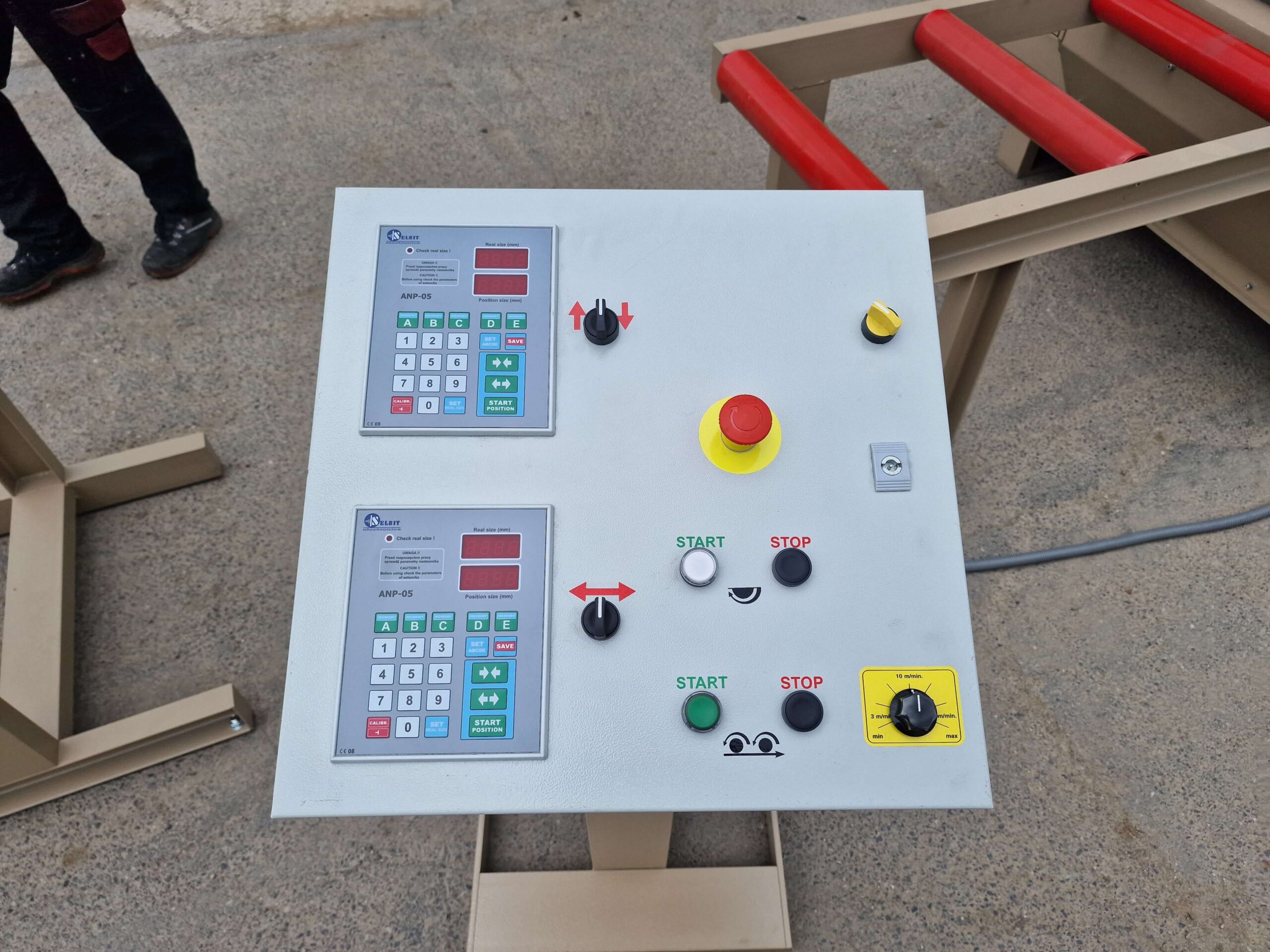

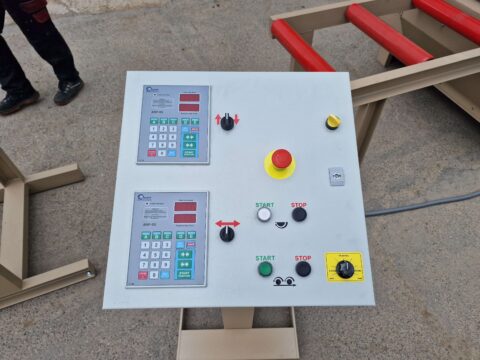

• Variable blade positioning using dedicated blade carriers
• Simultaneous adjustment of two blades
• Lateral rip fence for processing straight-edged boards

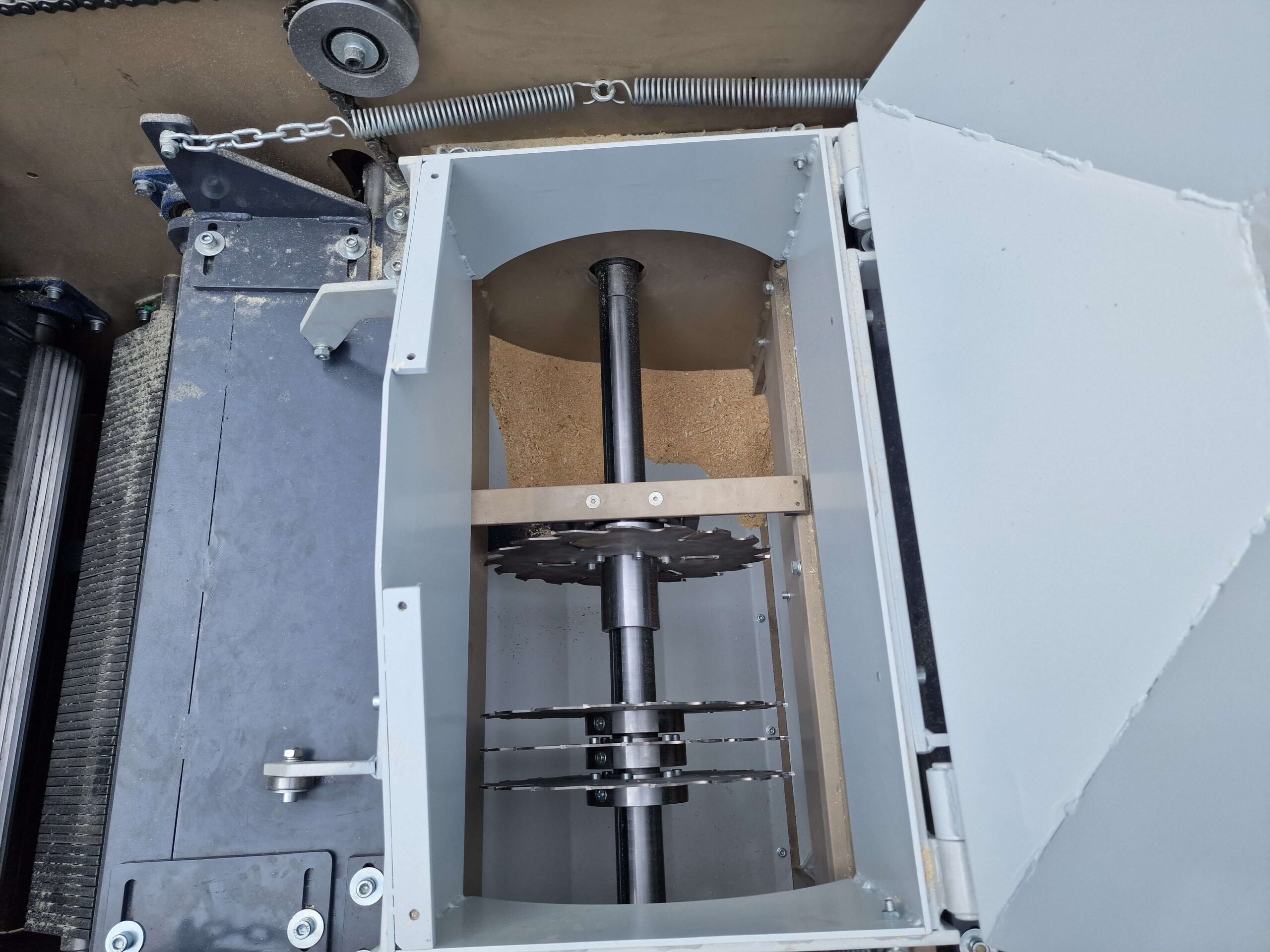

• Variable/unlimited blade configurations

Accessories

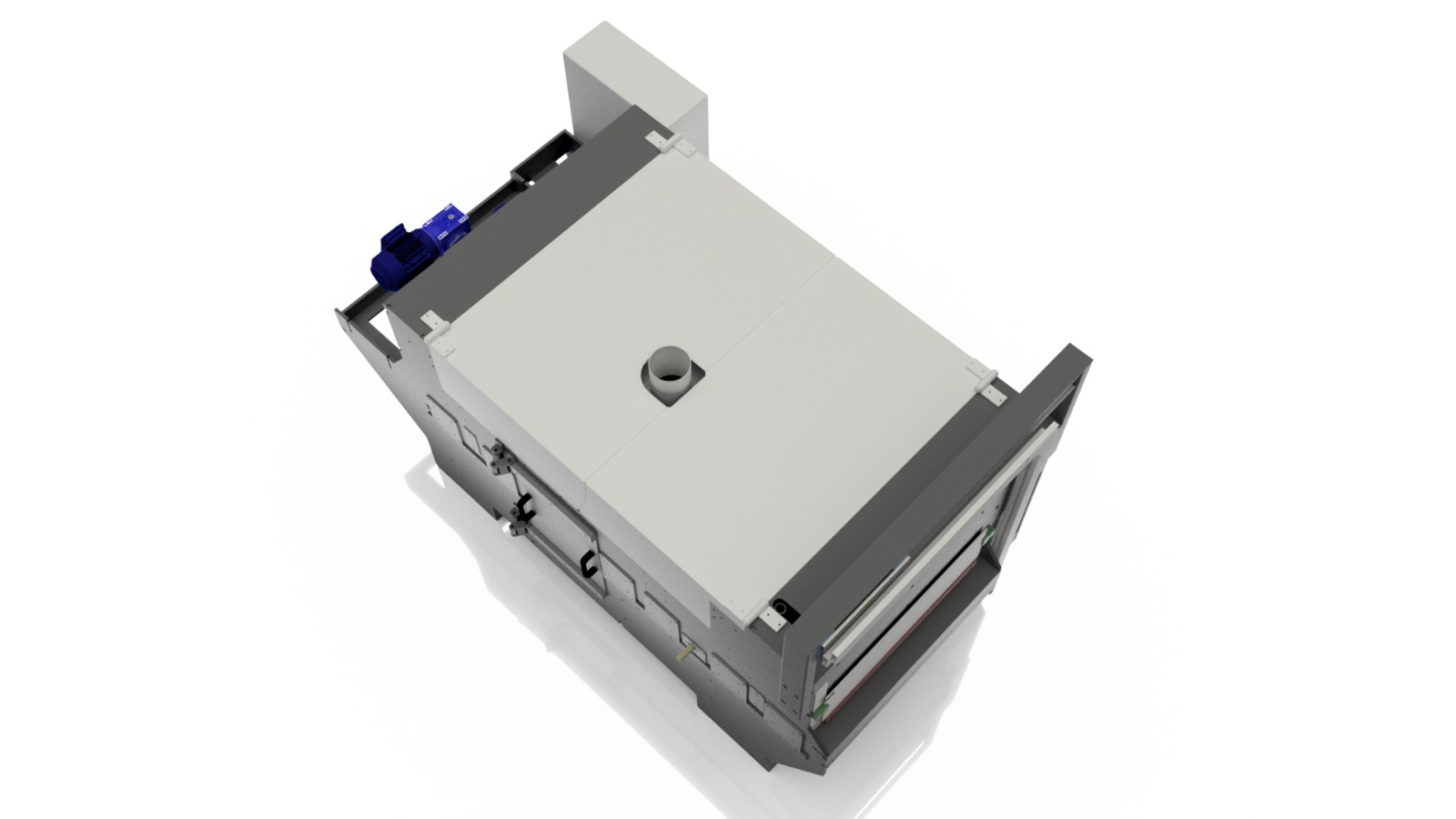

Top Dust Extraction

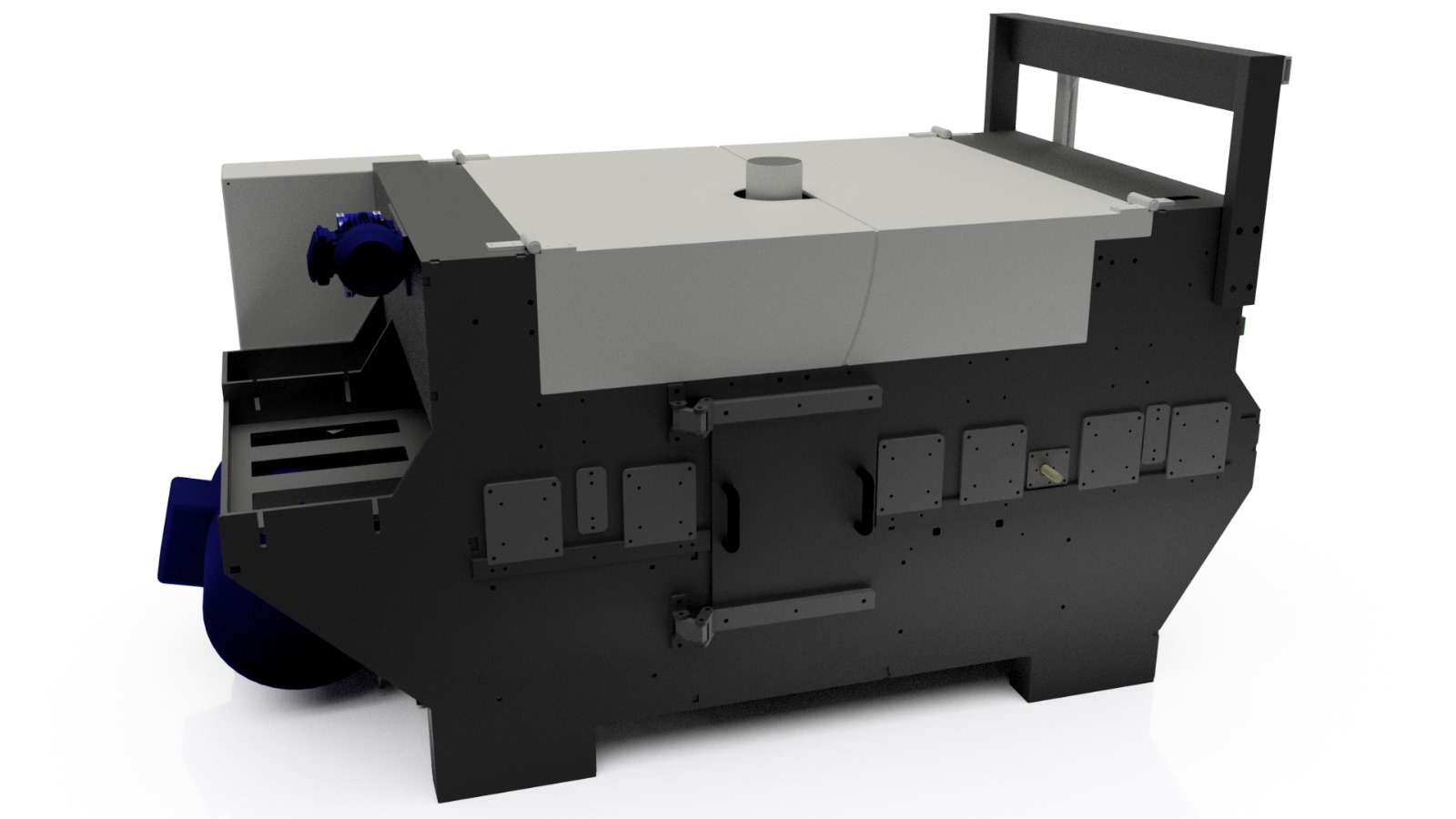

The machine features both top and bottom dust extraction ports, maximizing extraction efficiency, which is typically a critical issue in multi-blade rip saw operations.

Laser Line Projection (Option)

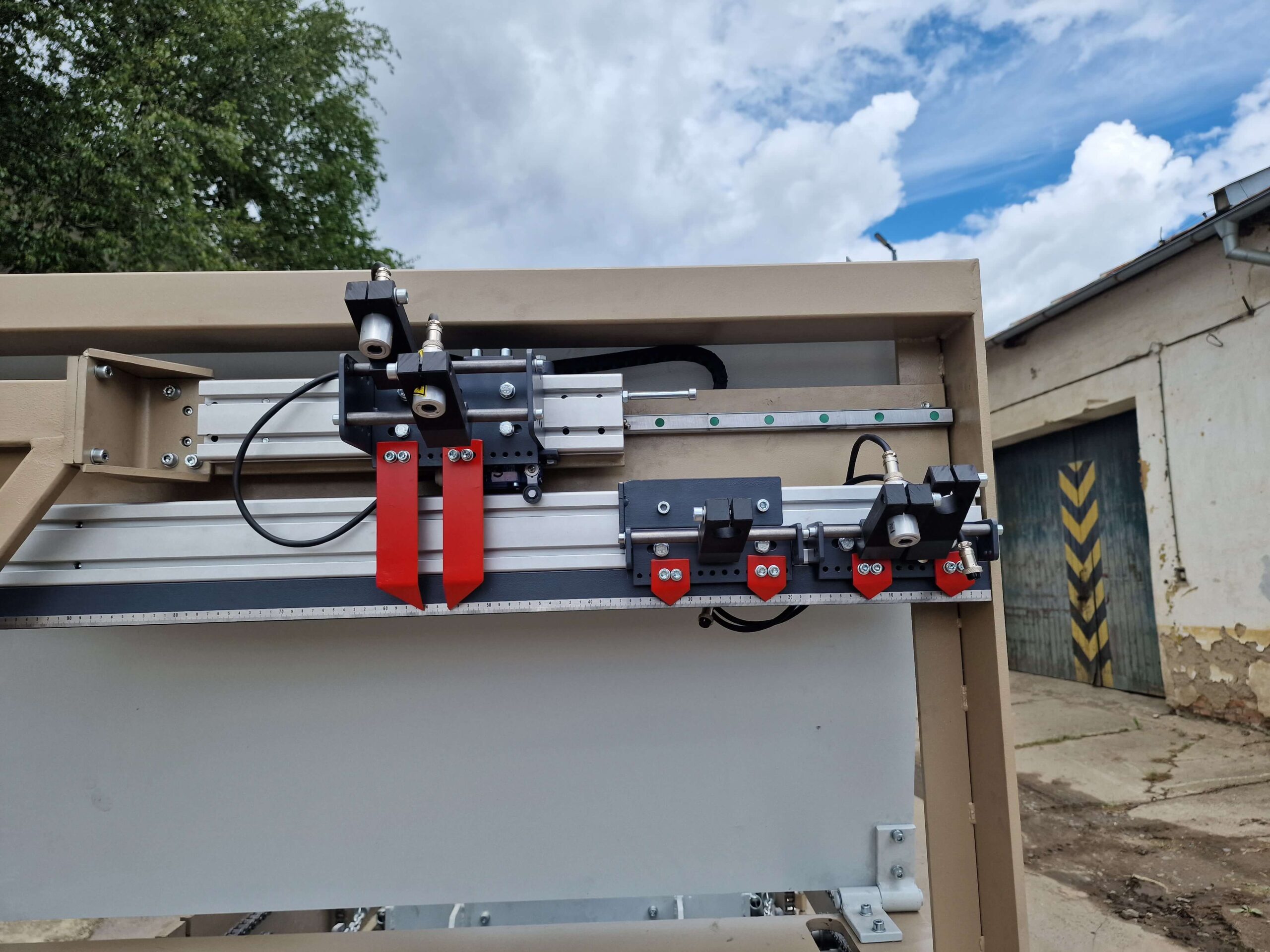

The RP-type multi-blade rip saws can be equipped with a variable number of line lasers, ranging from 2 to 8 units.
