VITAL LBM 20

Photography

Detail

Parameters

  • Spindle/Drill bit diameter: 0 – 20
  • Motor power output 3 kW
  • weight180 kg

Applications: Solid wood, laminated panels, plastics, composite materials

Description

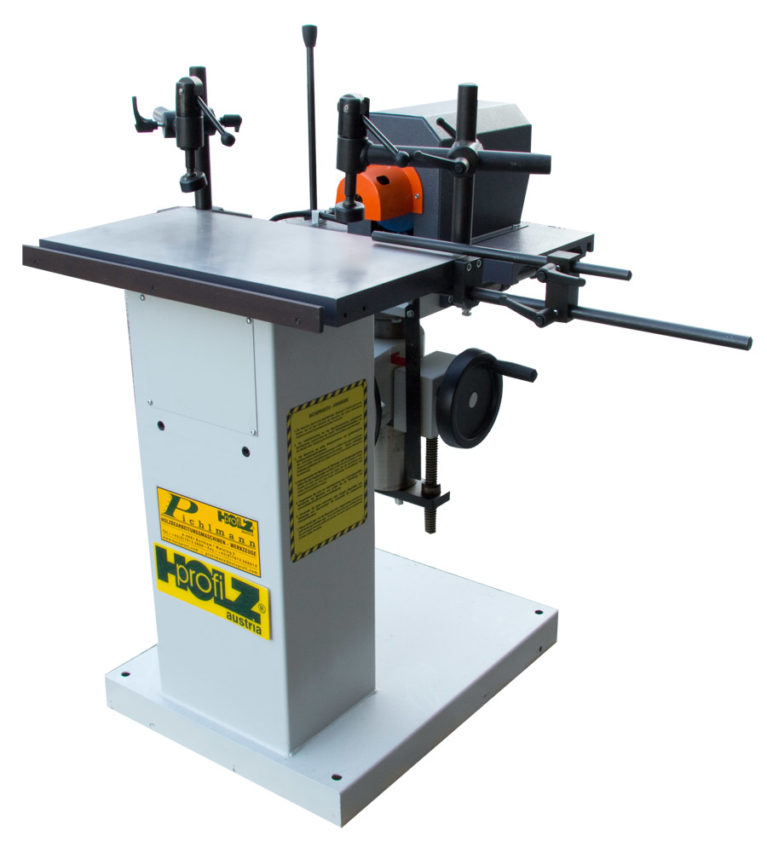

Professional horizontal slot mortiser equipped with a 3 kW motor designed for heavy-duty daily production. The core of the machine consists of a heavy-duty cast-iron base engineered for optimum vibration damping.

Pitch boring unit (Doweling device): 16 / 22 / 25 / 32 mm

Mitre fence

Eccentric workpiece clamp: 2×

Table size: 600 × 320 mm

Drill bit shank diameter: 0 – 20 mm

Mortising depth: 210 mm

Table vertical travel (Height adjustment): 150 mm

Table cross travel (Transverse stroke): 250 mm

Electric motor: 3 kW, 400 V

Net machine weight: 165 kg
