- Saw blade diameter: 300 mm
- Maximum material height: 80 mm
- Main motor power output: 7.5 – 18kW
- Length of feed rollers: 600 mm
- Active spindle length: 500 mm
- Saw blade travel: 400 mm
- Maximum workpiece width: 700 mm
- Feed system: Bottom feed via 3 steel rollers
- Saw blade adjustment: Manual

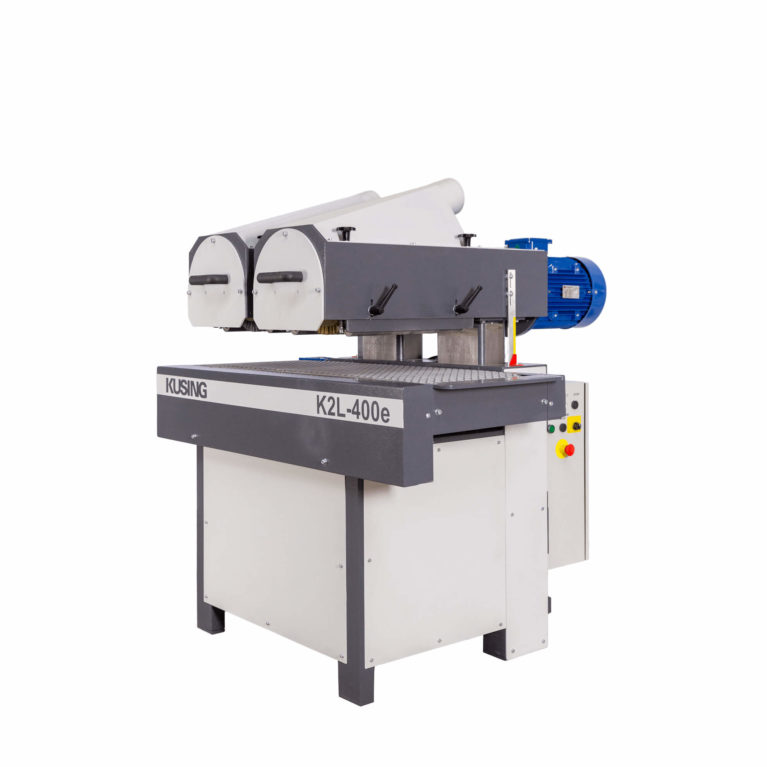

K2L 400e
Photography
Detail
Parameters
- Tool diameter range: From ø 200 mm to ø 300 mm
- Maximum workpiece dimensions: 400 mm (800 mm) × 310 mm with a ø 250 mm tool
- Motorized vertical adjustment for both tools
- 4× spring-loaded pressure rollers included
- Continuously variable conveyor speed: From 2 to 12 m/min
- Continuously variable tool speed adjustment included
- Multi-spindle modification available
Applications: Solid wood, laminated panels, plastics, composite materials
Specification
The K2l 400 is a professional, high-performance double-spindle brush sanding and texturing machine featuring independent height adjustment for each spindle. The machine features an open-side frame design, allowing continuous processing of material up to a width of 800 mm.
Characteristics
Independent Height Adjustment
Each spindle can be adjusted vertically and independently of the other.
Maximum Machining Height 310 mm
Using the motorized lift system, the spindles can be vertically adjusted up to a maximum workpiece clearance height of 310 mm.
Professional Rubber Feed Belt
A premium-grade grey feeding belt is utilized to ensure optimal material transport and grip.
Heavy-Duty Lift Construction
The K2L series machines feature a robust lifting mechanism engineered to absorb all operational vibrations. It utilizes a heavy-duty sliding guideway system designed for the most demanding production environments..
Digital Height Indicator
For maximum operational comfort and to achieve 100% repeatable surface texturing results, an “ALL-DIGITAL” option is available. With this option, every single parameter affecting the final finish is monitored and controlled digitally.
Technical Specifications
| Feed belt width | 400 mm (optional ) |
| Conveyor feed speed | 3 – 12 m/min |
| Spindle diameter | ø 40 mm |
| Spindle length | 400 mm |
| Recommended tool diameter | 250 mm |
| Tool speed | Continuously variable |
| Main motors power output | 2 x 4 kW |
| Conveyor motor power | 0,55 kW |
| Dust extraction outlets | 2 x 120 mm |
| Machine weight | 850 kg |
| Motorized tool lift | Yes |
| Spindle oscillation | Optional |
Scope of Delivery
