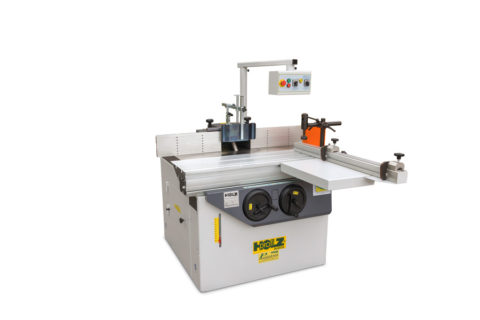

VITAL SFT1002

Photography

Detail

Parameters

Maximum spindle stroke: 180 mm
Spindle diameter: 30 mm
Spindle tilting range: 0° – 45°
Motor power output: 3 – 5.5 kW
Machine weight: 320 kg

Applications: Solid wood, laminated panels, plastics, composite materials

Description

The VITAL SFT 1002 professional spindle moulder is designed for a wide range of users demanding high quality and advanced design configuration. The core characteristic of the machine is a robust aluminum sliding carriage utilizing a guidance system on hardened steel rods, providing maximum rigidity and durability. This machine represents an ideal solution for joinery workshops requiring a versatile system for all types of profiling and machining operations.

Control adjustments: Spindle height and tilt controls located at the front of the machine

Motor power output: 5 kW

Power supply voltage: 400 V

Spindle speed range: 3000 / 4000 / 5000 / 6000 / 8000 / 10000 rpm

Spindle diameter: 30 mm

Spindle stroke: 180 mm

Spindle tilting range: 0° – 45°

Table opening diameter: 270 mm

Maximum tool diameter below table: 260 mm

Maximum tool diameter above table: 300 mm

Main table dimensions: 1000 × 600 mm

Sliding table dimensions: 1150 × 300 mm

Working table height: 900 mm

Digital speed readout: Electronic speed indication

Interchangeable spindle: MK4 (Morse taper 4)

Tilting spindle assembly

Dust extraction: Bottom and top extraction ports

Control adjustments: Spindle height and tilt controls located at the front of the machine

Accessories

Sliding Table Assembly
The sliding carriage, configured in this variant also as a tenoning table, incorporates hardened steel rod ways technology to ensure absolute vibration damping.

Aluminum Fences
The machine is equipped as standard with calibrated aluminum fence plates.
The front guard/pressure guide is manufactured from transparent polymer, enhancing operational ergonomics and safety.
