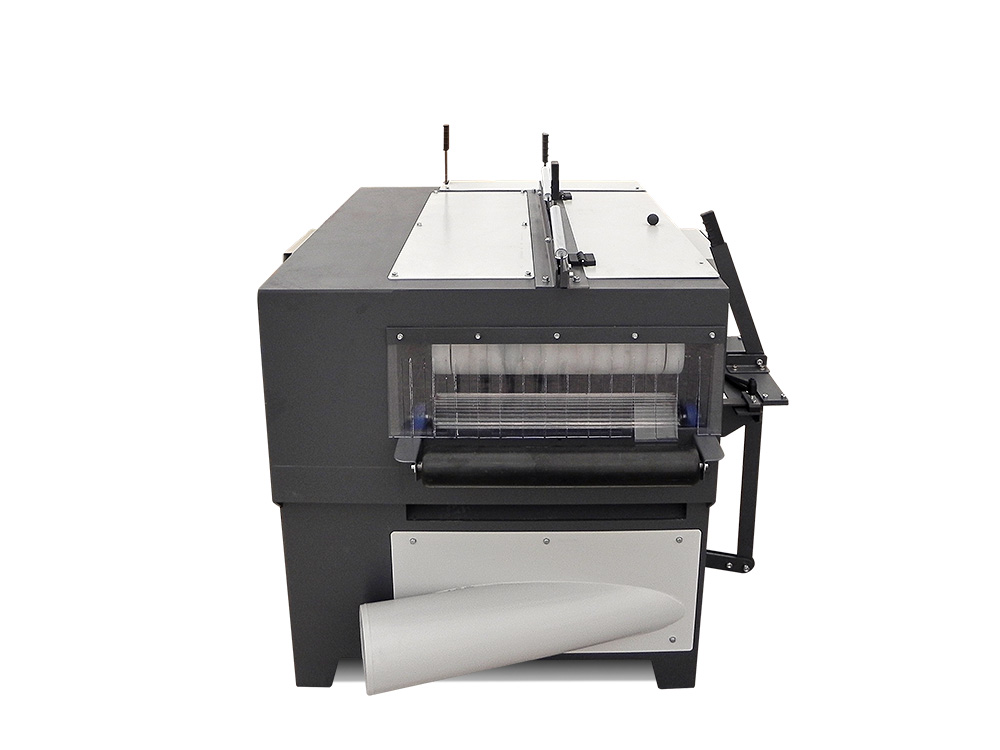

RIP SAW / BOARD EDGER RP-700 M 3.0
Photography
Detail
Parameters
- Saw blade diameter: 300 mm
- Maximum material height: 80 mm
- Main motor power output: 7.5 – 18kW
- Length of feed rollers: 600 mm
- Active spindle length: 500 mm
- Saw blade travel: 400 mm
- Maximum workpiece width: 700 mm

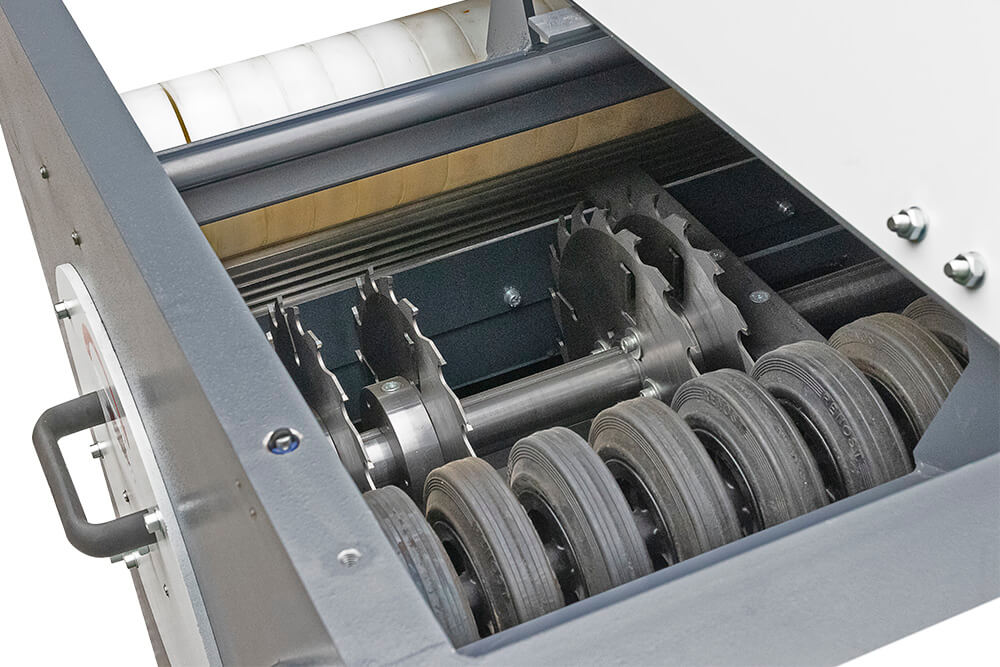

- Feed system: Bottom feed via 3 steel rollers
- Saw blade adjustment: Manual
Description

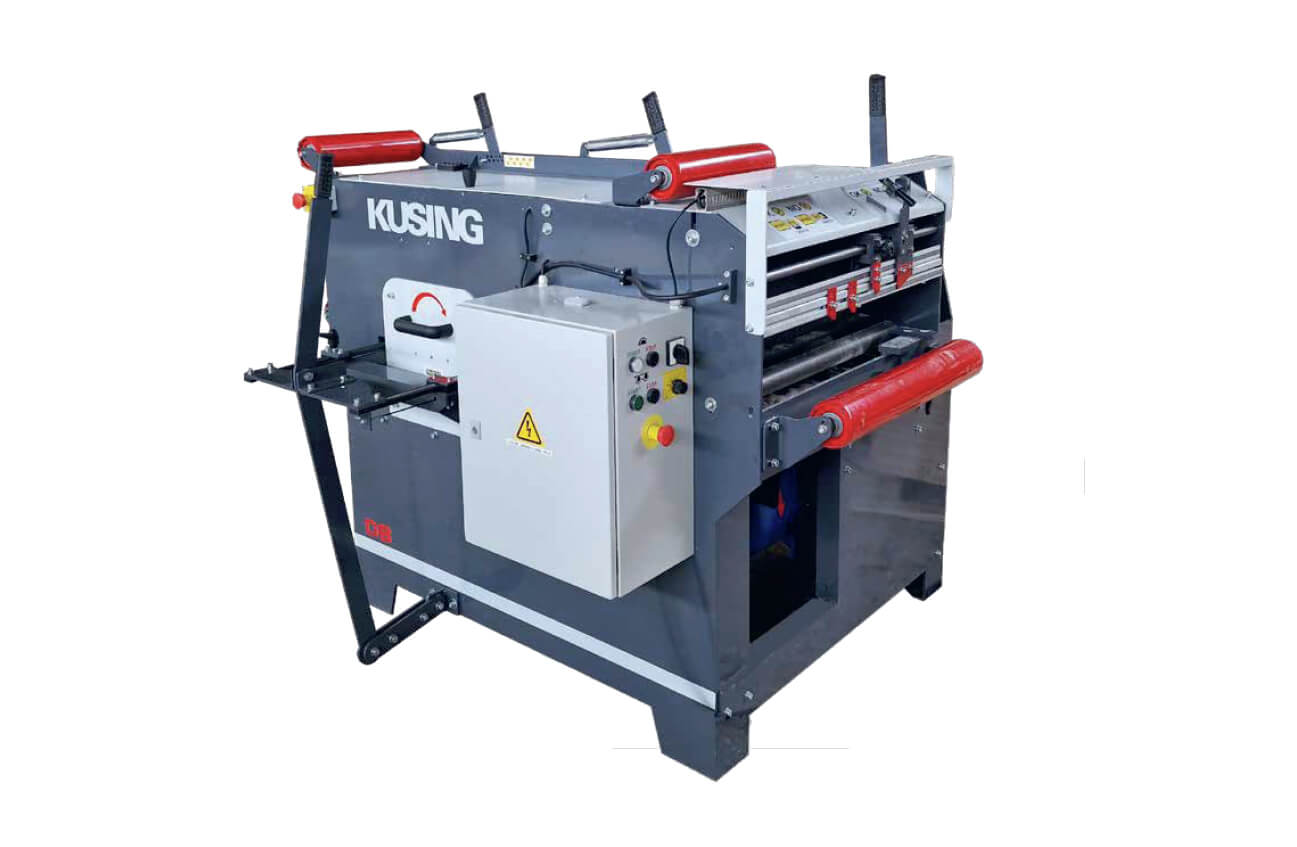

The KUSING RP-700 M 3.0 multi-blade rip saw represents an optimal solution for manufacturing plants requiring longitudinal material cutting. The “3.0” designation indicates the number of driven steel feed rollers. This specific configuration features three feed rollers and is highly recommended for operations that do not process thick and long cants. For heavy-duty applications involving larger dimensions, the configuration designated as 4.2 (equipped with six feed rollers) is recommended.
The machine offers a modular design with a wide range of modifications and optional accessories to ensure seamless integration into production lines. Available accessories comprise:
- Infeed roller conveyor
- Outfeed roller conveyor
- Variable blade positioning using dedicated blade carriers
- Simultaneous adjustment of two blades with a fixed distance
- Lateral fence for processing straight-edged boards
Configurations and Options

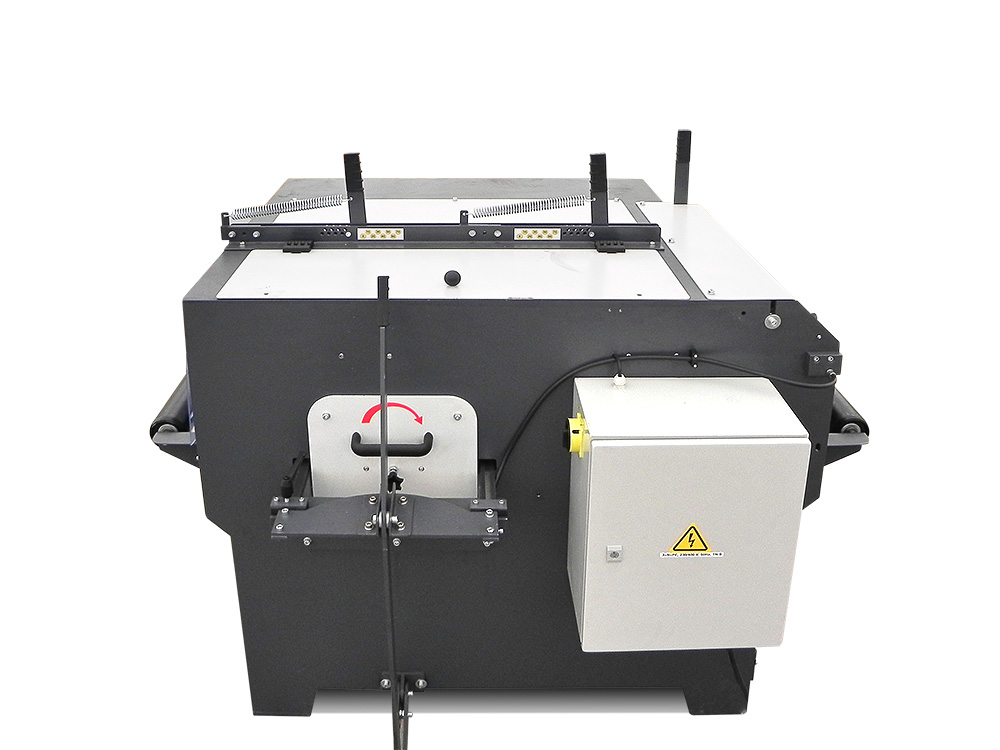

RP-700 M 3.0 Manual Configuration
The RP-700 M 3.0 machines are also manufactured in a manual version, where the operator adjusts the blade position via a mechanical lever utilizing integrated scales.
Option 2 – 8x Laser
The RP-700 series machines can be equipped with a variable number of line lasers, ranging from 1 to 8 units.
Technical Specifications
| Machine dimensions (L × W × H): | 1400 mm x 1700 mm |
| Working height | 830 mm |
| Infeed width | 700 mm |
| Maximum depth of cut | 80 mm |
| Spindle diameter | 50 mm |
| Active spindle length | 500 mm |
| Tool dimensions (diameter) | 300 mm |
| Spindle speed | 4000 ot ./ min |
| Feed speed range | 4-18 m/min |
| Feed motor power | 0.55 kW |
| Number of driven feed rollers | 3 x |
| Number of pressure rollers | 2 x |
| Main motor power | 7.5 /11 / 15 / 18 kW |
| Number of positioning blades | 1 + 1 |
| Laser cutting line indicator | Optional |
| Digital width indicator | Optional |
