Z Rip saw line

Photography

Detail

Parameters

  • Depalletizing system / Depalletizer
  • Automated material infeed

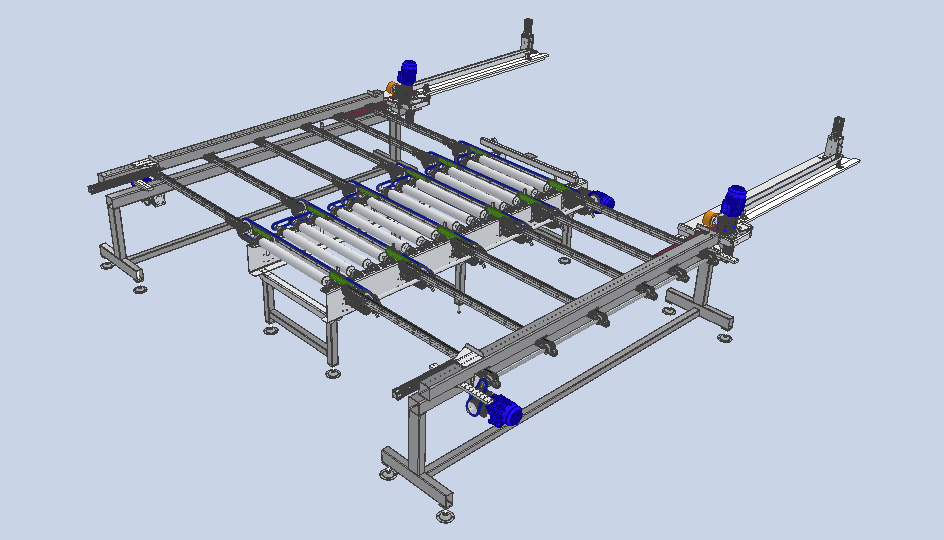

  • Automated material outfeed

Description

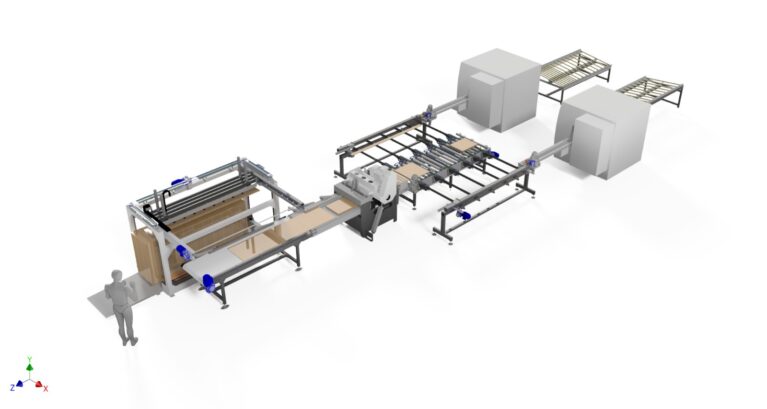

An automated system line engineered for depalletizing, ripping, and automated infeed of glued-laminated timber sheet materials.

Driven by continuous development and production process optimization, KUSING introduces a new automated line designed for the handling and processing of glued-laminated timber sheets. The processing line is engineered to ensure a continuous and fully automated material flow from the initial input pallet down to precision-cut workpieces ready for subsequent machining operations.

The system integrates three primary technological nodes: an automated material depalletizing unit, a multi-blade rip saw unit, and an automated infeed module synchronizing with a four-sided planer/moulder. Each operational phase is governed by a centralized PLC system, ensuring precise motion coordination, high repeatability, and optimized power utilization of the individual machinery units.

This processing line represents an advanced solution for manufacturers of solid glued-laminated panels, scantlings, or sheet-based timber components requiring high precision, reduced labor costs, and continuous operation without manual intervention.

Accessories

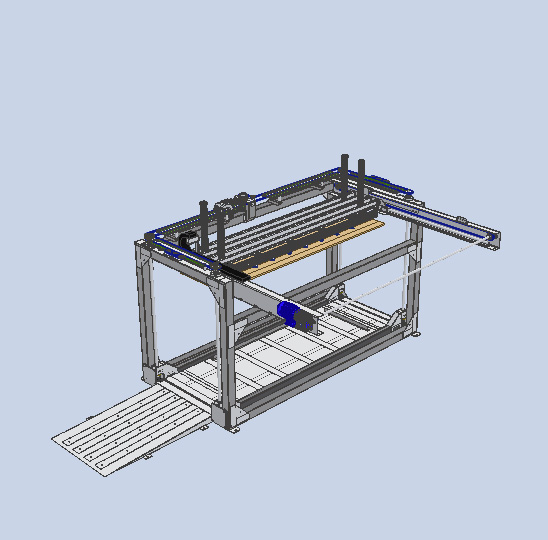

Depalletizing System

Depalletizing of loaded pallets and dosing into the line.

Vacuum workpiece clamping.

Compensation for height variances of the loaded pallet.

Primary Cutting Parameters

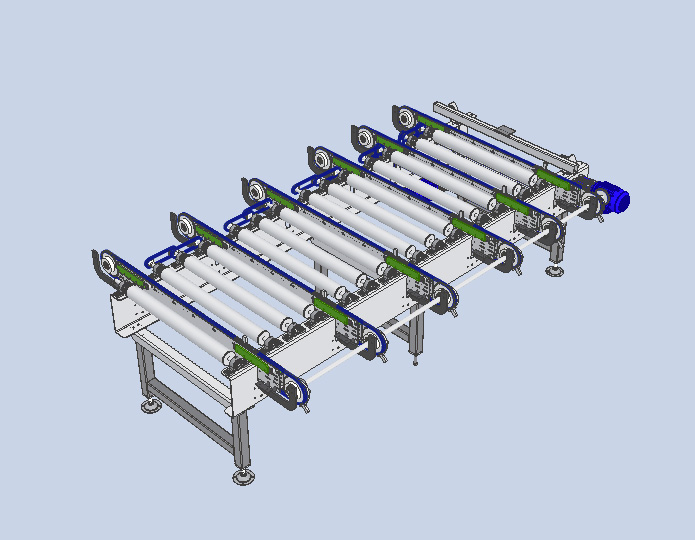

Transverse roller distribution conveyor supplying two machines.

Chain-driven material clearing system

Independent operation of two separate workstations.

Scope of Delivery

The processing line configuration is custom-engineered to specification.
