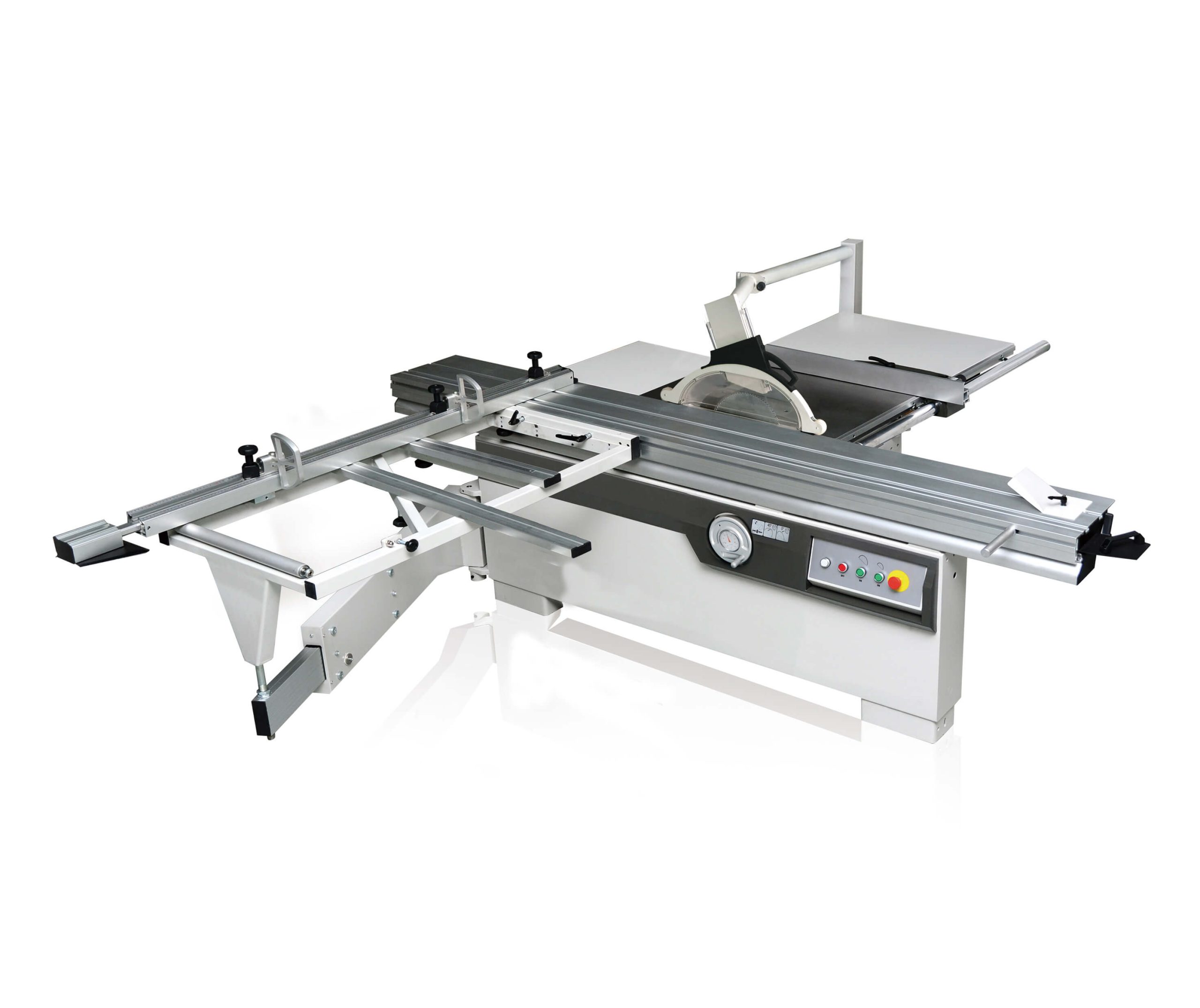

Panel saw VITAL FPx 2600 - 3200 - Kusing

Parameters

• Material: Solid wood Plastic Composite Laminate
• Usage: Sawing Cutting

• Sliding table length: 2600 mm or 3200 mm
• Cast iron table dimensions: 800 × 530 mm + 820 mm extension
• Maximum depth of cut at 90°: 90 mm
• Maximum depth of cut at 45°: 63 mm
• Maximum main saw blade diameter: ø 315 mm
• Saw unit tilting range: 0° – 45°
• Main motor power output (optional): 4 kW
• Main saw blade speed: 4000 rpm
• Independent scoring unit motor: 0.75 kW
• Tilt control position: Front-mounted
• Applications: Laminated panels, plastics, composite materials, solid wood

Formátovacia píla VITAL FPx 2600 – 3200 je ideálna píla pre zákazníkov ktorý pracujú predovšetkým s kompozitnými materiálmi ako DTS a MDF

Použitie: Lamino, plasty, kompozity, masív

Description

The VITAL FPx 2600 – 3200 sliding table saw is an ideal sizing solution for operations working primarily with composite wood panels such as chipboard (MFC/DTS) and MDF.

The VITAL FPx-2600 model emphasizes high-grade material selection and precise manufacturing quality, engineered to meet the requirements of demanding users. The FPx series is tailored specifically for independent craftsmen and small-to-medium enterprises whose core focus is processing laminated boards and sheet materials. As the entry-level model within the VITAL sliding table saw portfolio, this series is highly recommended for start-up workshops or facilities where daily, continuous sheet sizing is not the primary workload, but rather where the emphasis is on high-precision trimming or panel rectifications post edge-banding.

For continuous, high-volume daily production, the larger FPy series is recommended to provide enhanced operational capacity and operator ergonomics.

Accessories

Technical Specifications

Maximum main saw blade diameter	ø 315 / 30 mm
Main motor power output	4 kW
Main saw blade speed	4000 ot/min
Maximum scoring saw blade diameter	ø 120 / 20 mm
Scoring motor power output	0,75 kW
Scoring motor power output	8000 ot/min
Maximum depth of cut at 90° Maximum depth of cut at 45°	90 mm 63 mm
Saw unit tilting range	0 – 45 °
Cast iron table size	800 x 530 mm
Sliding table dimensions	2600×360 mm 3200×360 mm
Cutting length capacity	2600 mm 3200 mm
Machine weight	680 kg
